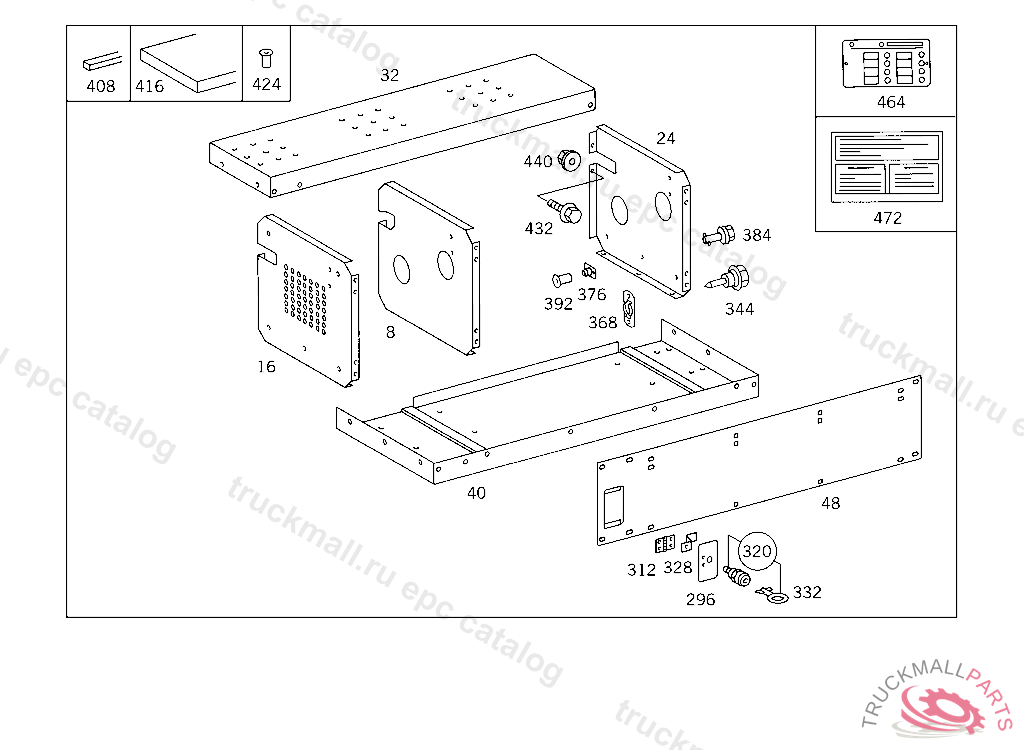

Поз.
Артикул
Описание
8
SUPPORT FRONT LEFT
8
SUPPORT FRONT RIGHT
16
SUPPORT FRONT LEFT
16
SUPPORT FRONT RIGHT
24
SUPPORT REAR RIGHT
24
SUPPORT REAR LEFT
32
COVERING RIGHT TOP
32
COVERING LEFT TOP
40
COVERING RIGHT BOTTOM
40
COVERING LEFT BOTTOM
48
COVERING LEFT
48
COVERING RIGHT
296
SCREENING PLATE RIGHT FLAP
296
SCREENING PLATE LEFT FLAP
312
HINGE AT FLAP
320
LATCH AT FLAP
328
LATCH AT FLAP
332
KEY
344
LOCKING PIN
344
LOCKING PIN PROTECTIVE PLATE TO BRACKET
344
LOCKING PIN ANTINOISE CAPSULE TO FRAME
368
FASTENER ,K 105999
376
FASTENER COVERING TO CONSOLE
384
GUIDE COVERING TO CONSOLE
392
RIVET
408
SEAL10X5, ORDER BY THE METER
416
SEAL70X10, ORDER BY THE METER
424
BLIND RIVET4X16
432
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
440
NUT STRAP TO SUPPORT
464
GUIDE SIGN INSTALLATION CHECKUP
472
DECALCOMANIA REFUELLING PLATE
472
DECALCOMANIA TANK FLAP
