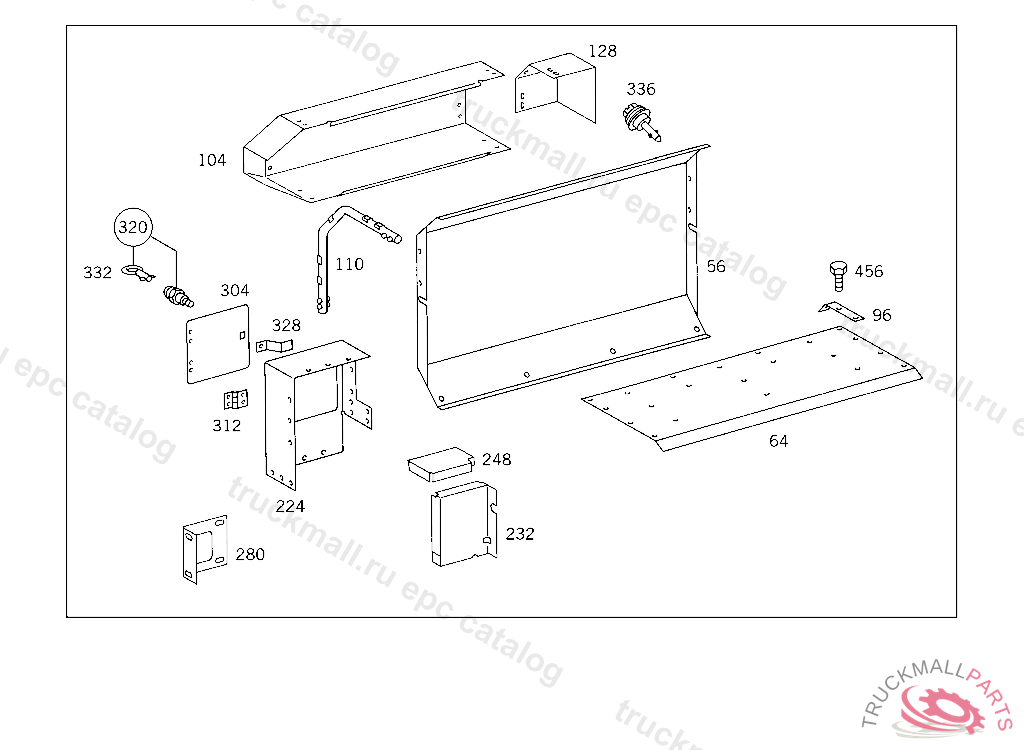

1317 K,1320 K - 676.043 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
56
SCREENING PLATE FRONT
64
SCREENING PLATE TOP AND BOTTOM
96
BRACKET COVERING TO FRAME
104
SCREENING PLATE TOP
110
BRACKET
128
SCREENING PLATE
224
COVERING REFUELLING UNIT
224
COVERING REFUELLING UNIT
232
COVERING RIGHT REAR
232
COVERING RIGHT FRONT
248
COVERING RIGHT FRONT
248
COVERING RIGHT REAR
280
BRACKET REFUELLING UNIT
304
SCREENING PLATE AT FLAP
312
HINGE AT FLAP
320
LATCH AT FLAP
328
LATCH AT FLAP
332
KEY
336
LOCKING PIN ANTINOISE CAPSULE
456
SCREW COVERING TO COVER PLATE
456
SCREW , Replaced By: A0009849029
