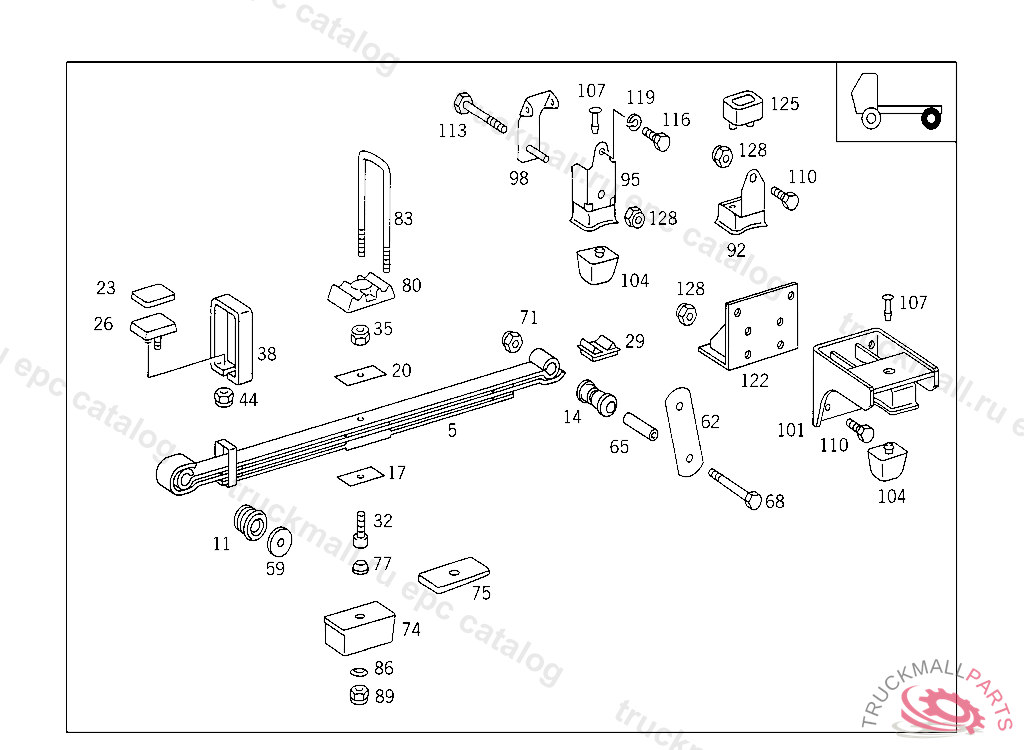

Поз.
Артикул
Описание
5
REAR SPRING (SUPPORTING SPRING),3 LEAVES
11
BUSHING SPRING EYE,FRONT
14
BUSHING SPRING EYE,REAR
17
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
17
SHIM , Replaced By: A9703210184
20
SHIM , Replaced By: A9703210184
20
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
23
SHIM BETWEEN THE SPRING LEAVES
26
RUBBER BUFFER
29
RUBBER BUFFER BETWEEN THE SPRING EYES
32
SPRING BOLT ,5 227450
35
HEXAGON NUT. NUT SPRING BOLT
35
NUT , Replaced By: N910113012005
38
SPRING CLAMP AT SPRING LEAF NO.5
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT , Replaced By: N913004008001
59
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
62
SHACKLE INSIDE,FRONT SPRING TO SPRING REAR BRACKET
65
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
68
SCREW CONTROL ARM TO REAR SPRING REAR BRACKET
71
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
71
NUT , Replaced By: N910113018004
74
SHIM REAR SPRING TO REAR AXLE,5 361887
77
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
77
CENTERING BOLT (CENTERING CONE),5 361887
80
PLATE REAR SPRING TO REAR AXLE
83
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT 300MM
86
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
89
NUT FRONT SPRINGS TO FRONT AXLE
92
BRACKET AXLE STOP
92
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6733200243
104
HELPER SPRING RUBBER BUFFER
107
PIN RUBBER BUFFER
110
SCREW , Replaced By: N304017010002
110
SCREW BRACKET TO SIDE MEMBER
125
SHIM STOP TO FRAME
128
NUT STRAP TO BRACKET
128
NUT , Replaced By: N910113010000
