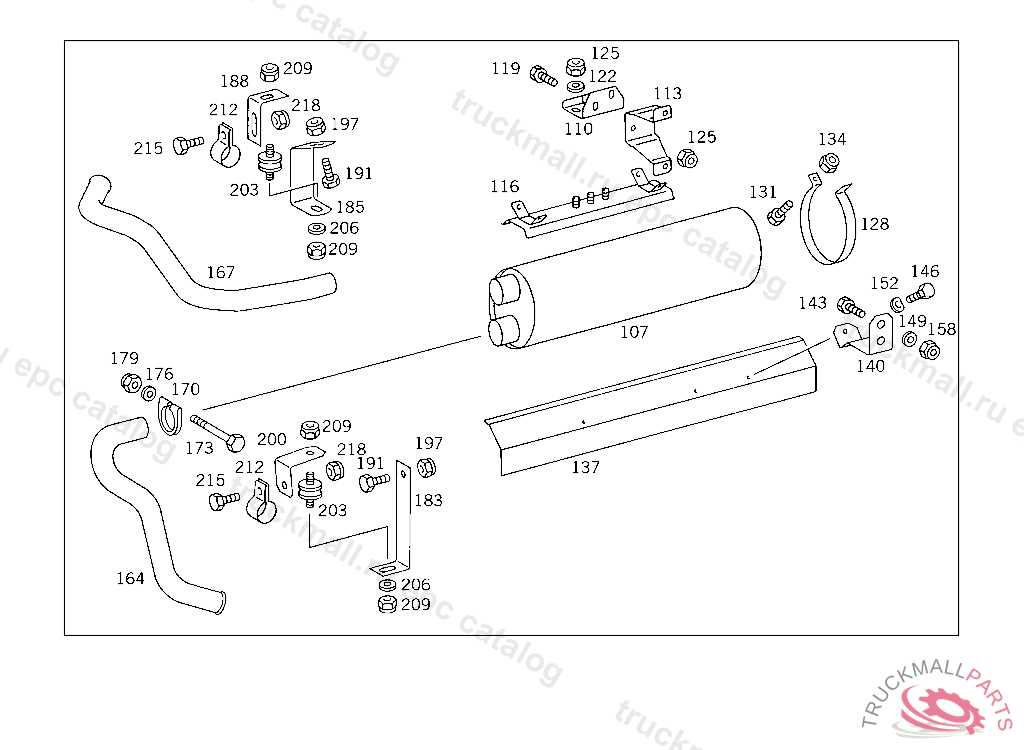

Поз.
Артикул
Описание
107
EXHAUST MUFFLER
110
BRACKET EXHAUST MUFFLER TO BRACKET
110
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
113
BRACKET EXHAUST MUFFLER
116
SUPPORT EXHAUST MUFFLER TO BRACKET
119
SCREW BRACKET TO SIDE MEMBER
119
SCREW , Replaced By: N304017010002
122
WASHER , Replaced By: N007349010007
122
WASHER STRUT TO CROSS MEMBER
125
NUT , Replaced By: N910113010000
125
NUT STRAP TO BRACKET
128
BRACKET , Replaced By: A6744914541
128
STRAP EXHAUST MUFFLER TO SIDE MEMBER
131
SCREW BRACKET TO SIDE MEMBER
134
NUT , Replaced By: N910113010000
134
NUT STRAP TO BRACKET
137
PROTECTIVE PLATE , DISCONTINUED,PART IS NO LONGER REQUIRED
140
BRACKET HEAT SHIELD TO FRAME, DISCONTINUED,PART IS NO LONGER REQUIRED
143
SCREW CONSOLE TO SIDE MEMBER
146
SCREW REDUCTION VALVE TO BRACKET
146
SCREW , Replaced By: A0079900801
149
WASHER BRACKET TO FRAME
152
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
152
SPRING WASHER , Replaced By: N000137008212
158
NUT SUPPORT TO SIDE MEMBER
164
REAR EXHAUST PIPE (TAIL PIPE)
167
REAR EXHAUST PIPE (TAIL PIPE),K 079963
170
CLAMP BRACKET TO EXHAUST PIPE
173
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
173
SCREW , Replaced By: N304014008021
176
WASHER , Replaced By: N000125008443
176
WASHER EXHAUST MUFFLER TO STRAP
179
NUT , Replaced By: N913004008001
183
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
185
BRACKET BRACKET TO FILTER BRACKET
188
BRACKET FUEL LINES TO TRANSMISSION
191
SCREW PIPE CLAMP
191
SCREW , Replaced By: N304017008021
197
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
197
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
200
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
203
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
206
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
206
WASHER , Replaced By: N006902011100
206
WASHER , Replaced By: N006902011102
209
NUT , Replaced By: N910113010000
209
NUT STRAP TO BRACKET
212
CLAMP , Replaced By: N071555090502
212
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
215
SCREW BRACKET TO SIDE MEMBER
215
SCREW , Replaced By: N304017010002
218
NUT , Replaced By: N910113010000
218
NUT STRAP TO BRACKET
999
SCREW PROTECTIVE PLATE TO CLAMP
999
SCREW COVERING TO SUPPORT
999
PROTECTIVE PLATE , NOT USED
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET HEAT SHIELD
999
WASHER HEAT SHIELD TO BRACKET
