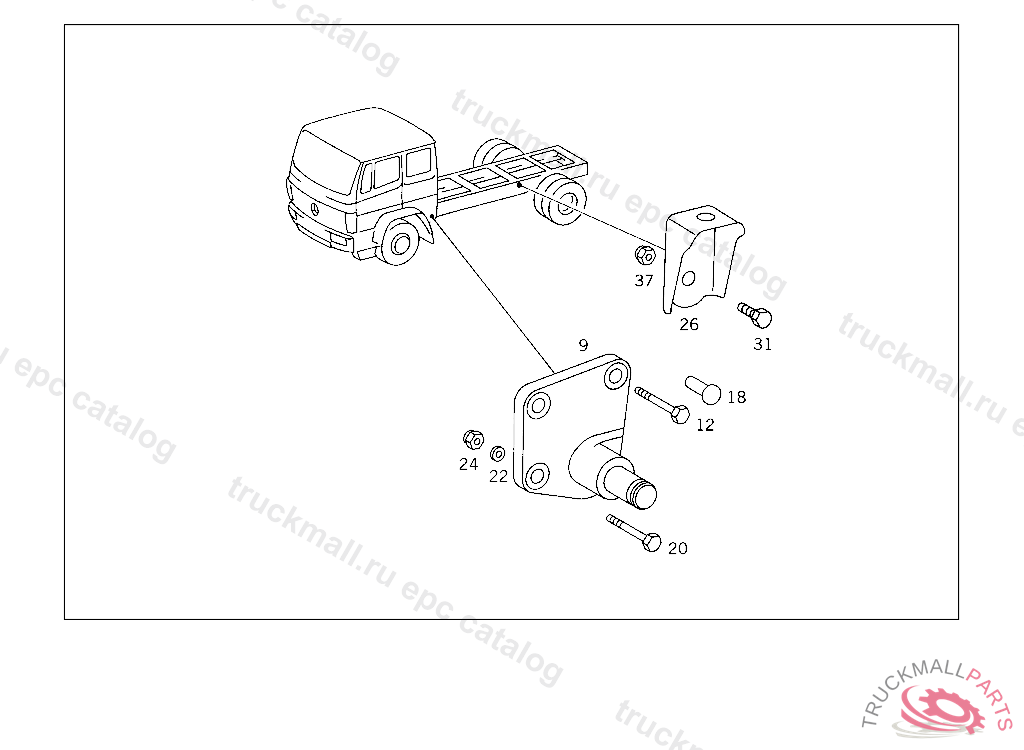

Поз.
Артикул
Описание
9
BEARING BRACKET HYDRAULIC CYLINDER
12
SCREW BRACKET TO SIDE MEMBER M 12X35
12
SCREW BRACKET TO FRAME M 12X35
12
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
18
RIVET CROSS MEMBER TO SIDE MEMBERS 10X30 MM, TO BE ADAPTED DURING ASSEMBLY
18
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
18
RIVET REAR CROSS MEMBER 12X42 MM
18
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
20
SCREW CONSOLE TO SIDE MEMBER
22
WASHER
24
NUT SUPPORT TO SIDE MEMBER
26
CONSOLE BODY MOUNTING
31
SCREW BRACKET TO SIDE MEMBER
31
SCREW , Replaced By: N304017010002
31
SCREW END PIECE TO EXHAUST PIPE M 10X25
37
NUT , Replaced By: N910113010000
37
NUT STRAP TO BRACKET
999
WASHER BRACKET TO FRAME
999
CROSS MEMBER SPARE WHEEL CARRIER, TO BE ADAPTED DURING ASSEMBLY
