Поз.
Артикул
Описание

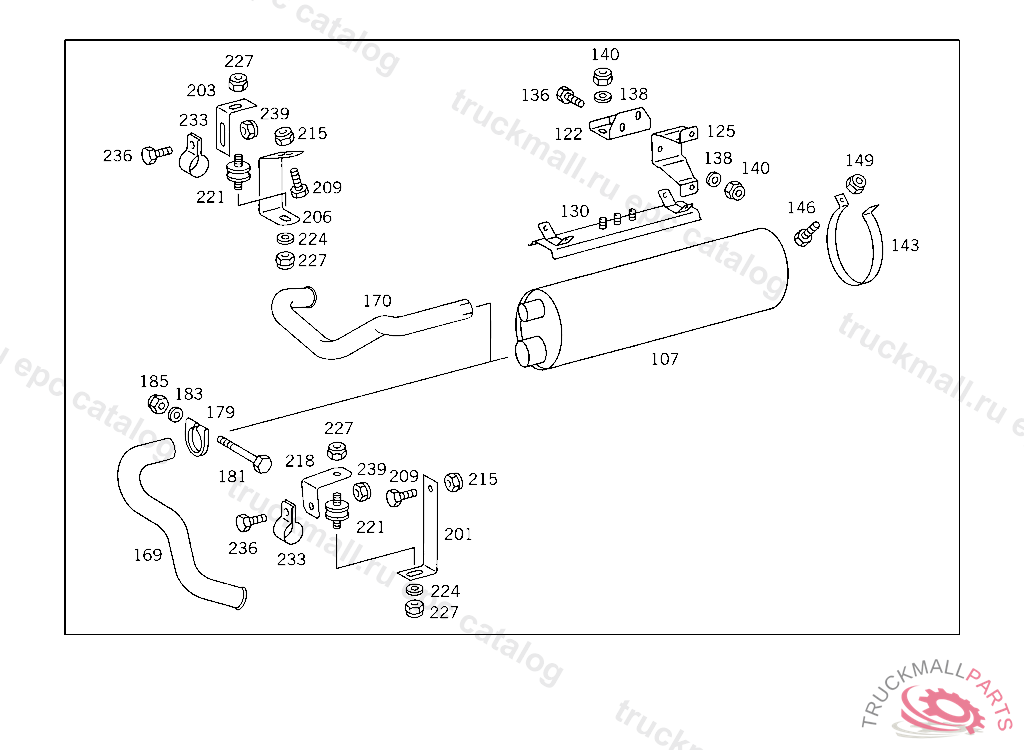

107
EXHAUST MUFFLER , NOT USED
122
BRACKET EXHAUST MUFFLER TO BRACKET
125
BRACKET EXHAUST MUFFLER
130
SUPPORT EXHAUST MUFFLER TO BRACKET
136
SCREW EXHAUST PIPE TO SIDE MEMBER
138
WASHER , Replaced By: N007349010007
138
WASHER STRUT TO CROSS MEMBER
140
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
140
NUT , Replaced By: N913023010002
143
BRACKET , Replaced By: A6744914541
143
STRAP EXHAUST MUFFLER TO SIDE MEMBER
146
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
146
SCREW , Replaced By: N910105010009
149
NUT , Replaced By: N913023010002
149
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
169
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 743553
170
REAR EXHAUST PIPE (TAIL PIPE), RECOMMENDED FOR TAKING ON STOCK
179
CLAMP REAR EXHAUST PIPE TO MUFFLER
181
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
181
SCREW , Replaced By: N910143008014
183
WASHER , Replaced By: N000125008443
183
WASHER EXHAUST MUFFLER TO STRAP
185
NUT BRACKET TO BRACKET
201
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
203
BRACKET FUEL LINES TO TRANSMISSION
206
BRACKET BRACKET TO FILTER BRACKET
209
SCREW BRACKET TO BRACKET
209
SCREW , Replaced By: N910142008001
215
NUT BRACKET TO BRACKET
218
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
221
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
224
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
224
WASHER , Replaced By: N006902011100
224
WASHER , Replaced By: N006902011102
227
NUT , Replaced By: N913023010002
227
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
233
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
236
SCREW EXHAUST PIPE TO SIDE MEMBER
239
NUT , Replaced By: N913023010002
239
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
