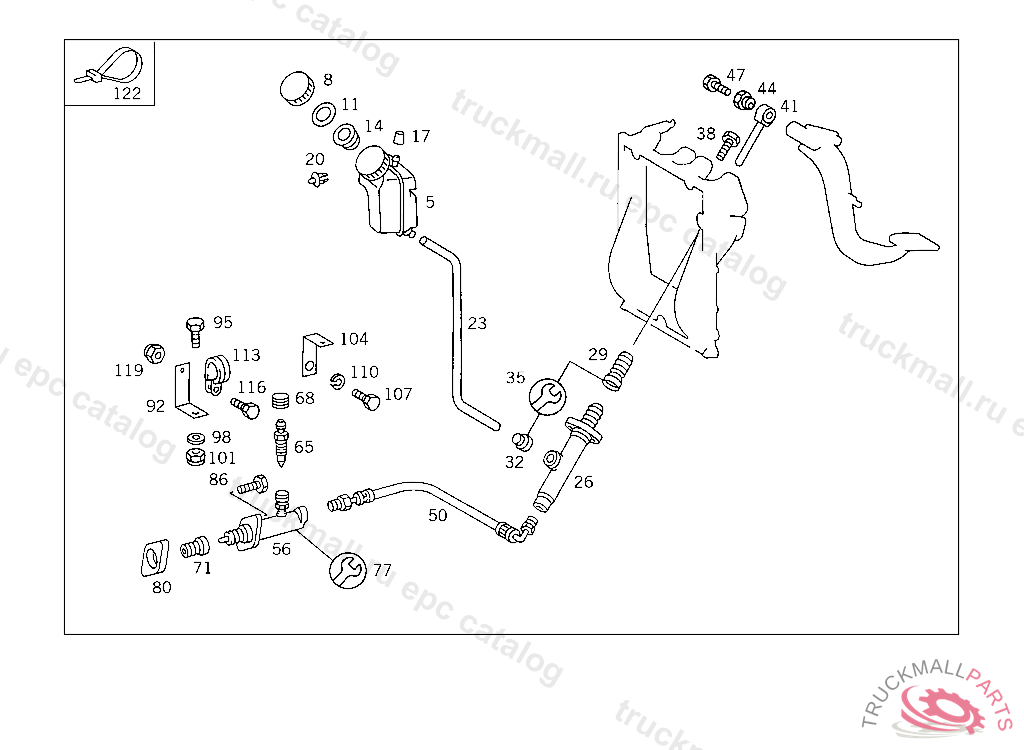

Поз.
Артикул
Описание
5
RESERVOIR EXPANSION TANK
8
LOCKING CAP
11
SEAL RING
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
RIVET RESERVOIR TO FIRE WALL
23
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
26
MASTER CYLINDER CLUTCH
26
MASTER CYLINDER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0012955306, +001A6732900439
26
MASTER CYLINDER , Replaced By: A0012959706
29
BOOT
32
PLUG
35
REPAIR KIT ,5 366603, Replaced By: A0002900512, +001A6732900439
35
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
38
SCREW COVER PLATE TO BRACKET
41
ROD CLUTCH MASTER CYLINDER,5 366603
41
ROD CLUTCH MASTER CYLINDER,5 366604
44
BUSHING PISTON ROD TO CLUTCH PEDAL
47
SCREW FITTING TO TRANSMISSION M8X32
50
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032902
50
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
50
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032903
50
PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 062720, Replaced By: A6772950213
50
PIPE ,5 379079, Replaced By: A6772950813, +001A6764920730, +001A6764921441, +002N000933008301, +002N913004008004
50
PIPE ,5 379079, Replaced By: A6772950913, +001A6764920730, +001A6764921441, +002N000933008301, +002N913004008004
50
PIPE FROM CONNECTOR TO CLUTCH SLAVE CYLINDER,K 032902
56
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 414492, Replaced By: A0012959607
56
SLAVE CYLINDER CLUTCH ACTUATION
65
VALVE CLUTCH SLAVE CYLINDER
68
PROTECTIVE CAP ,5 962906
68
PROTECTIVE CAP , Replaced By: A0004217187
71
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 288567, Replaced By: A0002955983
71
BOOT
77
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 288567, Replaced By: A0002904567
77
REPAIR KIT CLUTCH SLAVE CYLINDER
80
FLANGE CLUTCH SLAVE CYLINDER TO BELL HOUSING
86
SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING M 10X170
86
SCREW RADIATOR M 10X45
92
BRACKET CLUTCH LINE,5 937103
95
SCREW REAR EXHAUST PIPE TO MUFFLER
95
SCREW SUPPORT TO FENDER
95
SCREW , Replaced By: N304017008018
98
WASHER , Replaced By: N000125008443
98
WASHER , Replaced By: N000125010532
98
WASHER EXHAUST MUFFLER TO STRAP
98
WASHER RADIATOR TO RUBBER MOUNTING
101
NUT STRAP TO BRACKET
101
NUT , Replaced By: N910113010000
104
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6732950340
104
BRACKET CLUTCH LINE
107
SCREW BRACKET TO SUPPORT M 16X20
107
SCREW BRACKET TO ENGINE
107
SCREW , Replaced By: N000933016082
107
SCREW , Replaced By: N304017016011
107
SCREWM 16X25
110
LOCK WASHERROCKINGER TYP 59 G140,59 G150
113
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
113
CLAMP LINE MOUNTING
116
SCREW PUMP TO BRACKET
116
SCREW , Replaced By: N304017006016
119
NUT , Replaced By: N913004006001
119
NUT PUMP TO BRACKET
122
LOOM TIE LINE MOUNTING 280 MM
999
BRACKET BRACKET ON SUPPORT,ENTRANCE,RIGHT
999
WASHER , Replaced By: N006902011100
999
SPACER WASHER BRACKET TO FRAME
999
BRACKET CLUTCH LINE
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017006016
999
WASHER , Replaced By: N006902011102
999
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
999
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
999
SCREW CLAMP TO BRACKET
999
SCREW LICENSE PLATE TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
CLAMP ,K 147121, Replaced By: N000000000319
999
CLAMP PIPE ON FAN SHROUD
