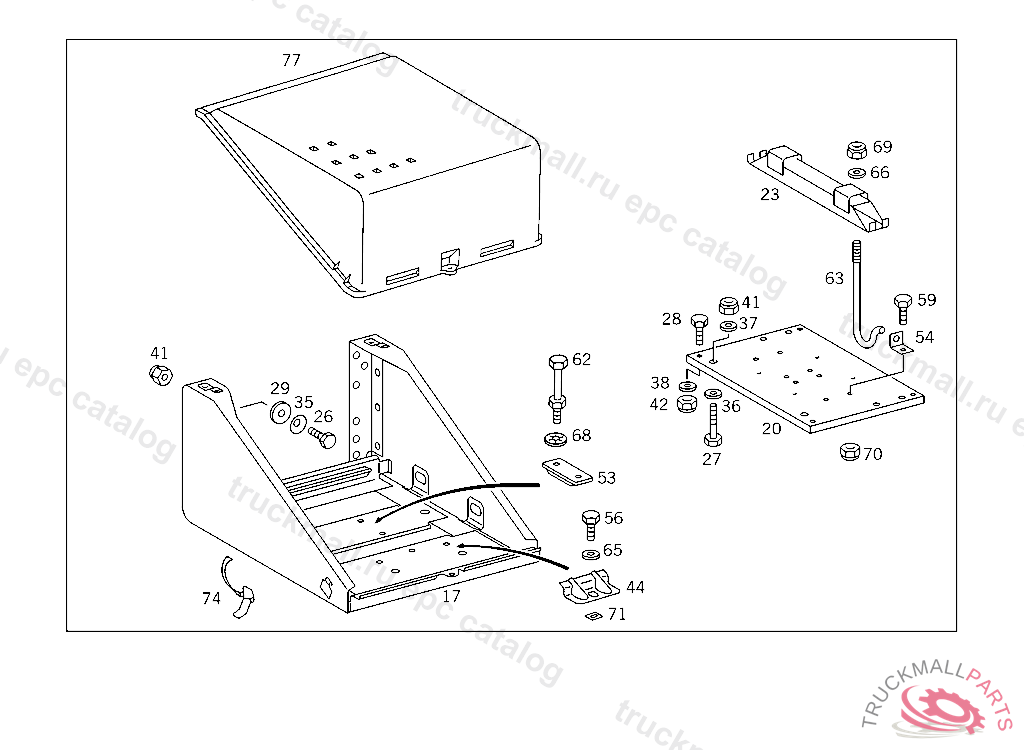

Поз.
Артикул
Описание
17
BATTERY SUPPORT
26
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
26
SCREW LEFT AND RIGHT CONSOLES TO CAB
26
SCREW , Replaced By: N308676012015
26
SCREW , Replaced By: N308676012026
26
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
29
WASHER BRACKET TO FRAME
29
ADJUSTING WASHER SPARE WHEEL HOIST TO FRAME
35
CONICAL SPRING WASHER BATTERY SUPPORT TO FRAME
41
NUT SUPPORT TO SIDE MEMBER
44
ANGLE BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
53
BRACKET BATTERY MOUNTING,5 515832
56
SCREW CLAMP TO BRACKET AND TO PIPE
62
CLAMPING SCREW BATTERY MOUNTING,5 419107
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER , Replaced By: N000125008443
68
LOCK PLATE RELEASE LEVER TO SHAFT
71
WASHER BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
74
FASTENER
77
COVER
999
THREADED UNION TERMINAL 30,CABLE TO STARTING MOTOR,K 199371
