Поз.
Артикул
Описание

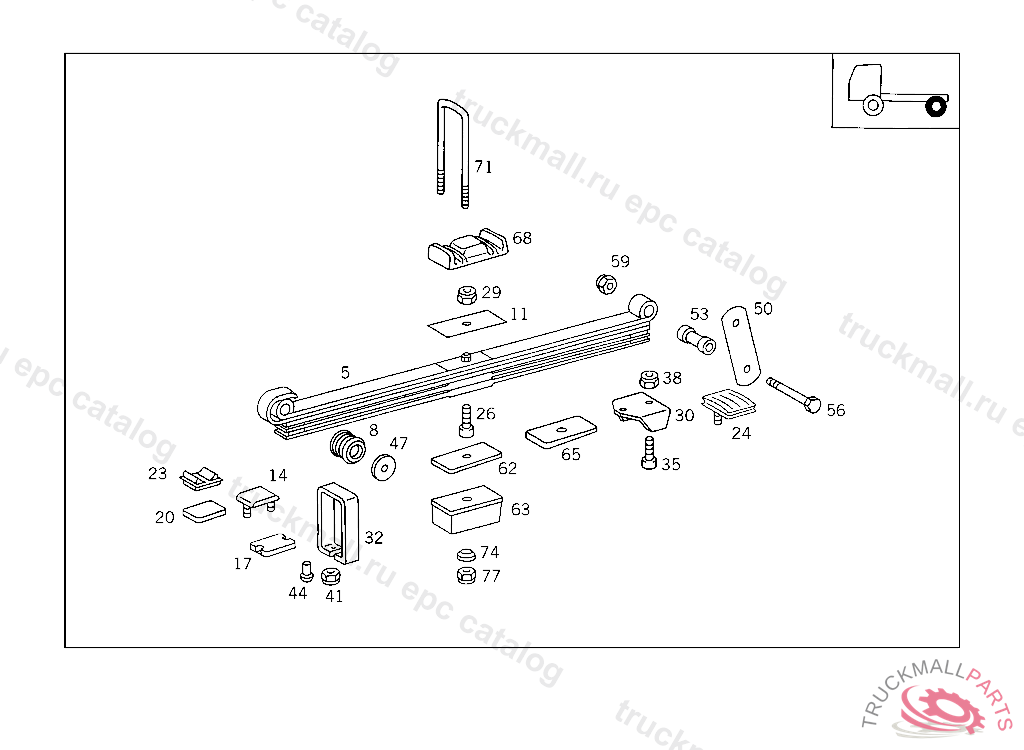

5
REAR SPRING (SUPPORTING SPRING),3 LEAVES
8
BUSHING SPRING EYE,FRONT AND REAR
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
SHIM , Replaced By: A9703210184
11
SHIM , Replaced By: A9703210184
14
RUBBER BUFFER
20
SHIM BETWEEN THE SPRING LEAVES
23
RUBBER BUFFER BETWEEN THE SPRING EYES
26
SPRING BOLTM 12X110
29
HEXAGON NUT. NUT SPRING BOLT
29
NUT , Replaced By: N910113012005
32
SPRING CLAMP AT SPRING LEAF NO.5
41
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
NUT , Replaced By: N913004008001
47
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
50
SHACKLE (SPRING SHACKLE)
53
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
56
SCREW , Replaced By: N000960018072
56
SCREW VIBRATION ABSORBER TO CONSOLE
59
NUT , Replaced By: N910113018004
59
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
62
SHIM
65
SHIM REAR SPRING TO REAR SPRING REAR BRACKET, HIGH END TO BE MOUNTED AT THE FRONT WHEN VIEWED IN THE DIRECTION OF NORMAL TRAVEL
68
PLATE REAR SPRING TO REAR AXLE,K 028585
71
U-BOLT , Replaced By: A6793510425
71
U-BOLT REAR SPRING TO REAR AXLE 330 MM,K 028585
74
WASHER FRONT SPRINGS TO FRONT AXLE
77
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
