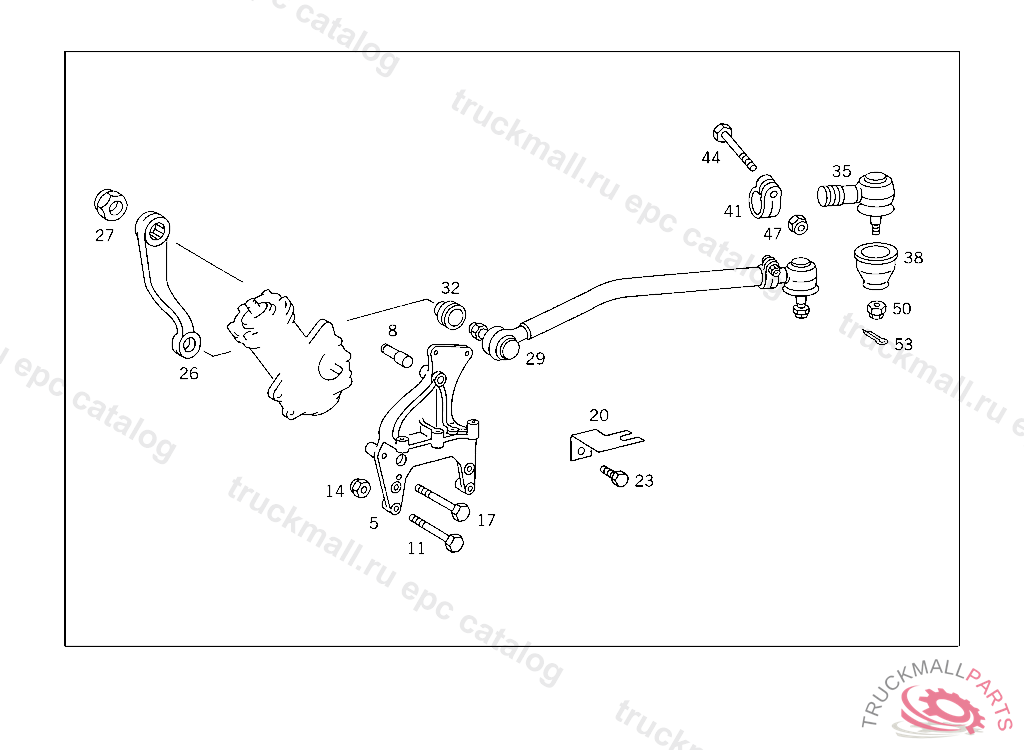

Поз.
Артикул
Описание
5
STEERING BRACKET
5
STEERING SUPPORT
8
PIN
11
SCREW VIBRATION ABSORBER TO FRAME M 12X1.5X55
11
SCREW BATTERY CASE TO SIDE MEMBER
11
SCREW STEERING BRACKET TO FRAME M 12X1.5X60
11
SCREW STEERING SUPPORT TO FRAME M 14X55
14
NUT , Replaced By: N910113014000
14
NUT ALTERNATOR TO SUPPORT
17
SCREW STEERING TO STEERING BRACKET M 20X1.5X40
17
SCREW , Replaced By: N308676016014
17
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
17
SCREW , Replaced By: N308676016007
17
SCREW SUPPORT TO TRANSMISSION
26
PITMAN ARM
26
PITMAN ARM
27
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
29
DRAG LINKNAKATA
29
DRAG LINK
29
DRAG LINKTRW DO BRASIL
32
DUST CAP SCREWED PART OF JOINT TO 682 460 31 05,98 05,75 05,77 05
35
JOINT TO BE SCREWED INTO DRAG LINK TO 682 460 98 05
38
DUST CAP SCREWED PART OF JOINT TO 682 460 31 05,98 05,75 05,77 05
41
CLAMP JOINT TO DRAG LINK TO 682 460 98 05
41
CLAMP JOINT TO DRAG LINK TO 682 460 75 05
41
CLAMP JOINT TO DRAG LINK TO 682 460 31 05
44
SCREW JOINT TO DRAG LINK M12X1.5X60,TO 682 460 75 05
44
SCREW , Replaced By: N308676012018
47
NUT SUPPORT TO SIDE MEMBER
50
NUT
53
COTTER PINROCKINGER TYP 260 G140
999
STEERING BRACKET , NOT USED
