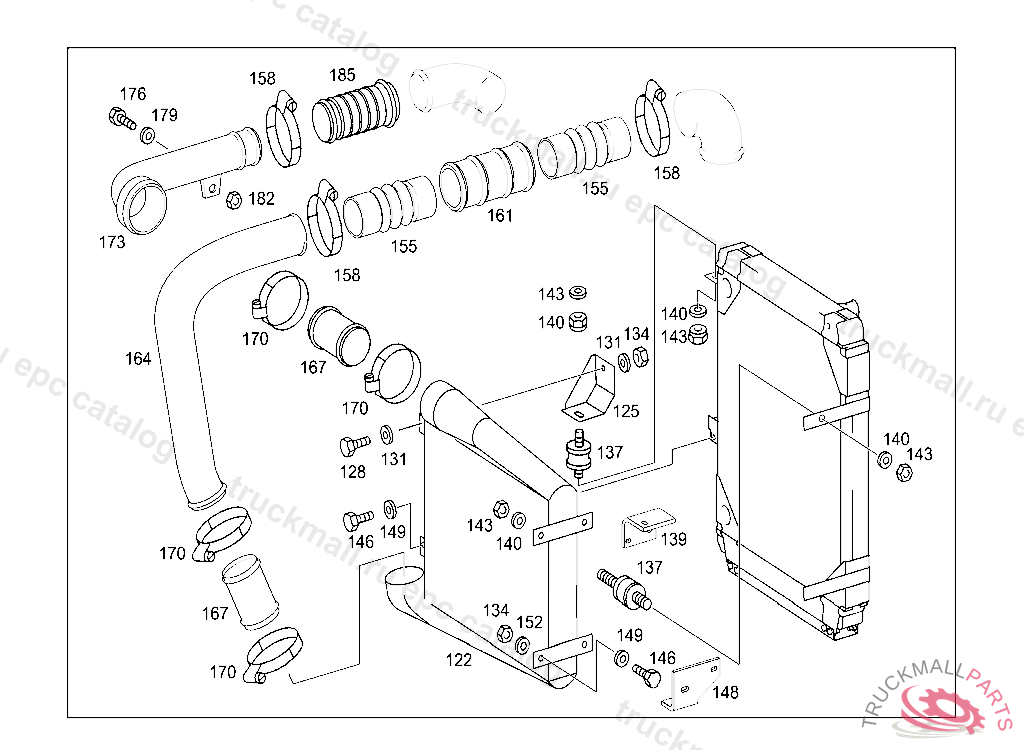

Поз.
Артикул
Описание
122
122
RADIATOR
125
125
128
SCREW BRACKET TO STRUT 5/16-18
131
WASHER VALVE TO BRACKET 5/16-.640
134
PART NAME MISSING NUT
137
RUBBER BUFFER RADIATOR MOUNTING,TOP M10X50X30
137
BEARING
139
140
NUT BRACKET TO RETARDER
140
NUT , Replaced By: N000934010005
143
LOCK WASHER , Replaced By: N912004010102
143
WASHER10
146
PART NAME MISSING SCREW
146
HEXAGON HEAD BOLT
148
149
WASHER HAND BRAKE VALVE 1/4
149
WASHER5/16
152
PART NAME MISSING , Replaced By: A6889900048
155
HOSE
155
CHARGE AIR HOSE
158
LOOM TIE. CLAMP HOSE TO RADIATOR AND TO ENGINE
158
CLAMP68-85MM
161
161
164
167
HOSE AIR INTAKE PIPE TO ENGINE
170
CLAMP87-112MM
170
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
173
173
173
176
PART NAME MISSING SCREW
179
WASHER SHIFTING ROD 3/8
182
185
HOSE
