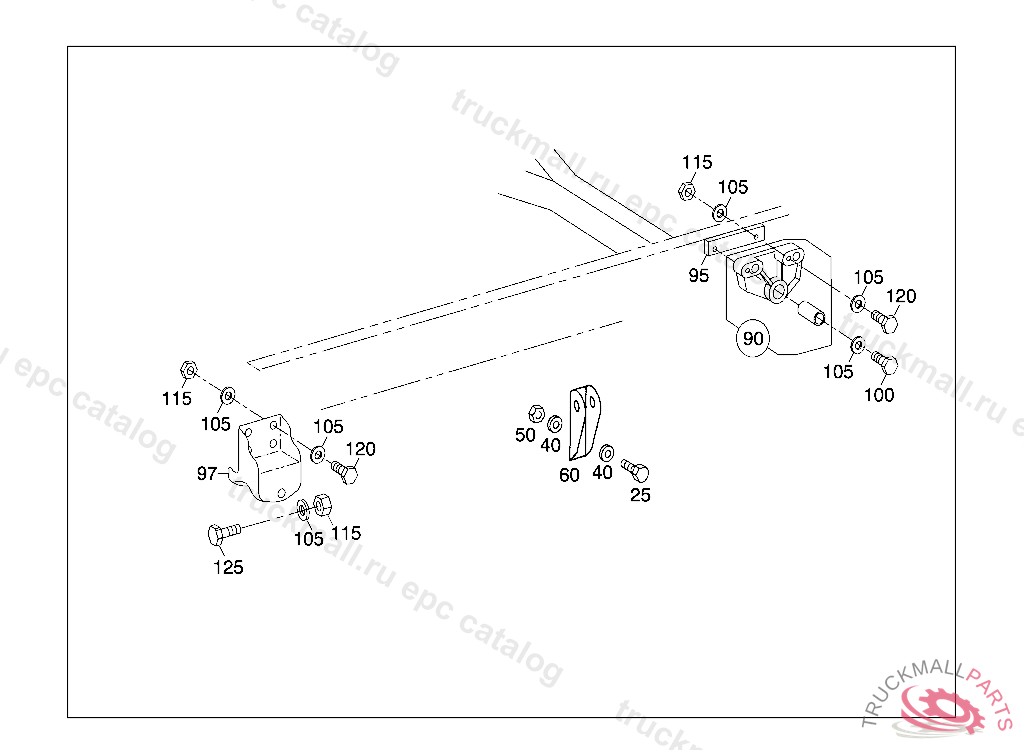

Поз.
Артикул
Описание
25
SCREW5/8-11, Replaced By: QT23-09444-225
25
SCREW BUFFER TO FRAME 5/8-11
40
WASHER5/8-1.312-.149 Z
50
PART NAME MISSING FRONT SPRING REAR BRACKET TO SIDE MEMBER 5/8-11
50
NUT5/8-11,M 026123
60
BRACKET SHOCK ABSORBER
60
90
REAR SUBFRAME FRONT SPRING REAR BRACKET
95
SHIM FRONT SPRING REAR BRACKET
97
FRONT SPRING BRACKET FRONT
100
PART NAME MISSING1/2-13
105
PART NAME MISSING CONSOLE TO FRAME 1/2
115
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
120
PART NAME MISSING1/2-13
125
PART NAME MISSING. SCREW PIN IN SHACKLE 1/2-13
