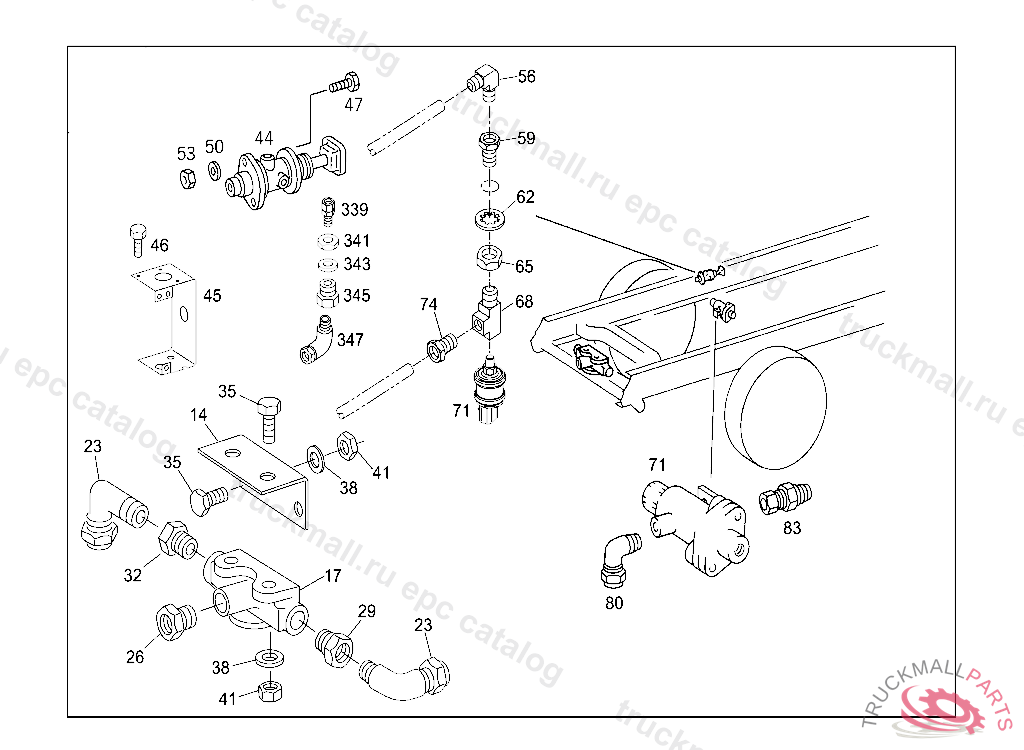

Поз.
Артикул
Описание
14
17
VALVE QUICK-RELEASE VALVE
23
ELBOW FITTING
23
ELBOW FITTING
26
FITTING AT AIR RESERVOIR
29
CONNECTOR ON AIR DRIER
32
FITTING HOSE TO VALVE 3/8 NPTFM X 1/2 T
35
PART NAME MISSING SCREW
38
WASHER VALVE TO BRACKET 5/16-.640
41
PART NAME MISSING NUT
44
VALVE (HAND BRAKE VALVE)
45
BRACKET HAND BRAKE VALVE
46
PART NAME MISSING SCREW
46
SCREW5/16-18
47
SCREW CABLE MOUNTING 1/4-20
47
SCREW HAND BRAKE VALVE 1/4-20
50
WASHER HAND BRAKE VALVE 1/4
50
PART NAME MISSING , Replaced By: A6889900040
53
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
53
PART NAME MISSING NUT
56
ELBOW FITTING
56
ELBOW FITTING ,M 027041
59
FITTING HAND BRAKE VALVE
62
LOCK WASHER HAND BRAKE VALVE
65
NUT HAND BRAKE VALVE
68
ELBOW FITTING , TO BE ORDERED ONLY FROM MBMEX
71
SENDER UNIT , Replaced By: A6855420418
74
FITTING , TO BE ORDERED ONLY FROM MBMEX
80
ELBOW FITTING REGENERATION TANK
83
CONNECTOR ON AIR DRIER
999
VALVE (QUICK-RELEASE VALVE) GTD 223455
999
VALVE (QUICK-RELEASE VALVE) BW 5008333
999
FITTING3/8 NPT
999
ELBOW FITTING BRAKE VALVE 3/8 NPTFM X 1/4 NPTFH
999
FITTING
999
NUT1-14
999
FASTENER3/8-18 NPTF
999
WASHER VALVE TO BRACKET 5/16-.640
999
WASHER
999
PLUG REGENERATION TANK BR 0,6MPT
999
ELBOW FITTING
999
T-FITTING AT AIR RESERVOIR
999
T-FITTING
999
999
FITTING1/4 X 1/4
999
ELBOW FITTING90GR. 1/2NPTFX5/8T
999
ELBOW FITTING AT AIR RESERVOIR
999
ELBOW FITTING
999
ELBOW FITTING90 GR. 1/4 NPTFM X 3/8T
999
FITTING AT AIR RESERVOIR
999
ELBOW FITTING
