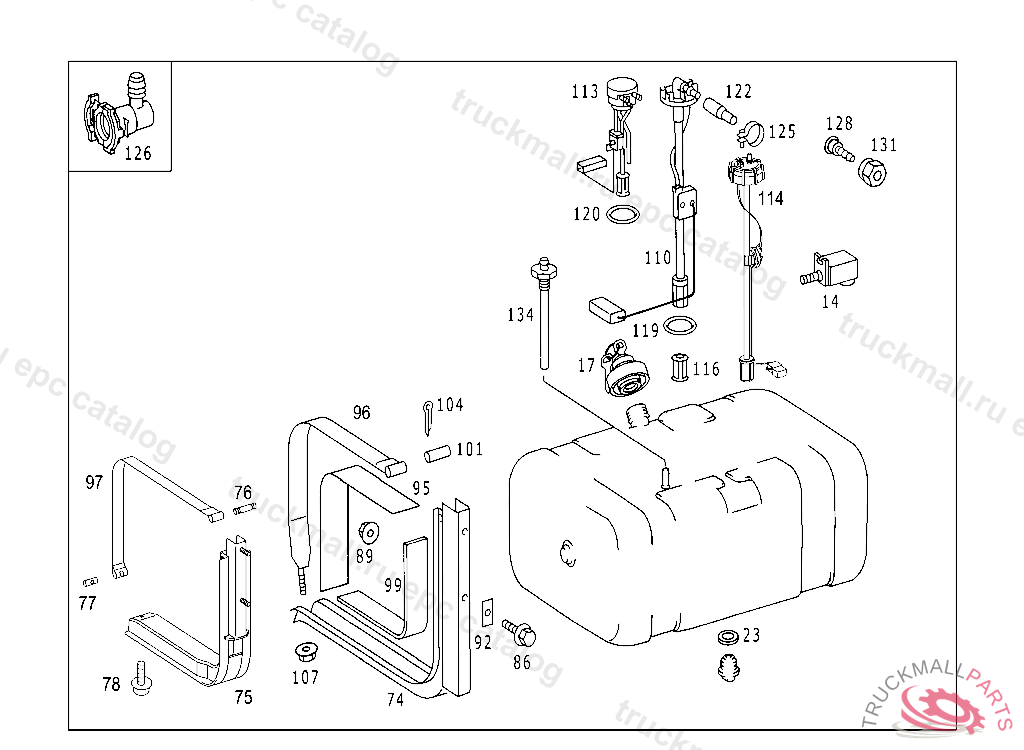

Поз.
Артикул
Описание
14
VALVE (VENT VALVE)
17
FILLER CAP FILLER CAP TO A 388 470 69 01
23
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
23
RING LEFT FUEL TANK
74
74
74
75
75
75
75
76
PIN STRAP TO SUPPORT,D 276012
77
CLAMPING SCREW STRAP TO CONSOLE M12X1,5
78
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
86
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
89
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
89
NUT BRACKET TO BATTERY CASE
92
BASE CONSOLE TO FRAME
95
PAD FUEL TANK TO CONSOLE
96
STRAP FUEL TANK TO SUPPORT
97
99
SHIM BRAKE ANCHOR
101
PIN STRAP TO CONSOLE
104
COTTER PIN STRAP TO SUPPORT
107
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
110
SENDER UNIT FUEL GAUGE
113
FUEL GAUGE DASH UNITTO A 695 470 00 01/01 03
114
116
STRAINER
119
SEAL RING
120
SEAL RINGTO A 695 470 00 01/01 03
122
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
122
HOSE SENDER UNIT
125
CLAMP , Replaced By: N000000000667
126
FITTING
128
CONNECTOR LINE CONNECTION
131
UNION NUT RETURN LINE
134
134
