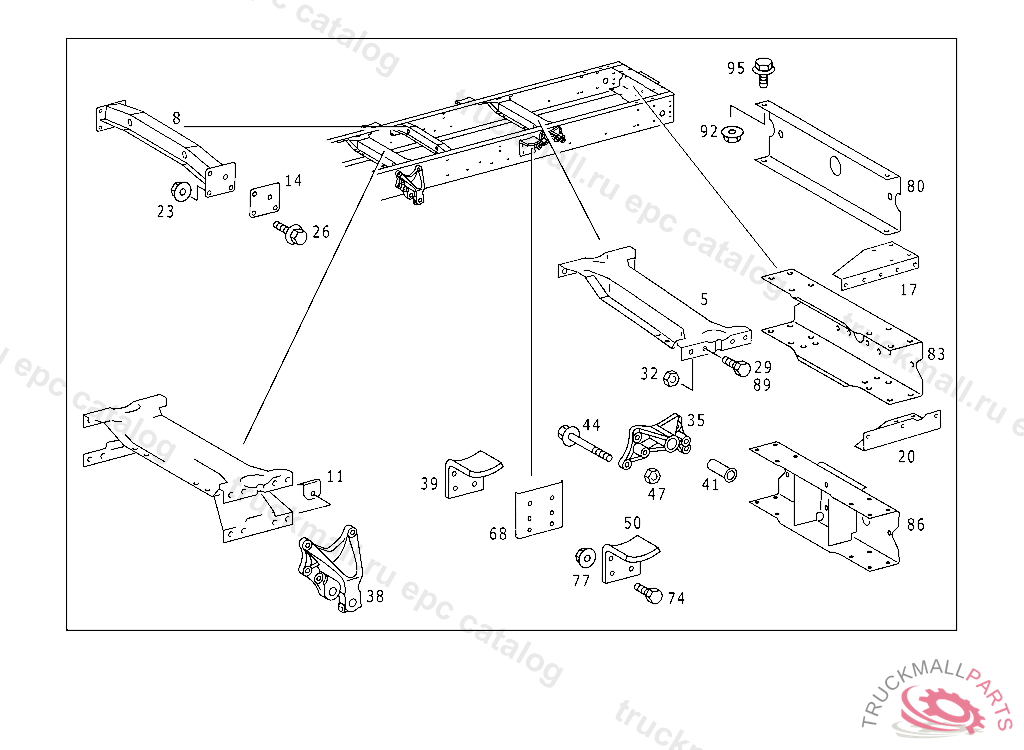

Поз.
Артикул
Описание
5
CROSS MEMBERNO.4
8
CROSS MEMBER REAR SHOCK ABSORBERS NO.6
11
SHIMNO.4,5
14
MOUNTING PLATE CROSS MEMBER TO SIDE MEMBERS
17
GUSSET PLATE TOP RIGHT
17
GUSSET PLATE TOP LEFT
20
GUSSET PLATE BOTTOM RIGHT
20
GUSSET PLATE BOTTOM LEFT
23
NUT SUPPORT TO FRAME
26
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
26
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
26
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
29
SCREW GUSSET PLATE TO SIDE MEMBER
32
NUT STEERING SUPPORT TO FRAME
32
NUT SUPPORT TO FRAME
35
SPRING BRACKET (REAR SPRING BRACKET),REAR
38
REAR SPRING BRACKET (REAR SPRING BRACKET),FRONT
39
HELPER SPRING BRACKET LEFT FRONT
39
HELPER SPRING BRACKET RIGHT FRONT
41
BUSHING
41
BUSHING
44
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
44
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
44
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
44
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M14X1.5X110
47
NUT SUPPORT TO FRAME
47
NUT STEERING SUPPORT TO FRAME
50
HELPER SPRING BRACKET LEFT REAR
50
HELPER SPRING BRACKET RIGHT REAR
68
PLATE HELPER SPRING BRACKET TO SIDE MEMBER 176X170 MM
74
SCREW BEARING BRACKET TO SIDE MEMBER
74
SCREW BEARING BRACKET TO SIDE MEMBER
77
NUT CONSOLE TO SUPPORT
77
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
83
CROSS MEMBER (REAR CROSS MEMBER)
89
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
89
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
92
NUT BRACKET TO SIDE MEMBER M12X1.5
95
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
