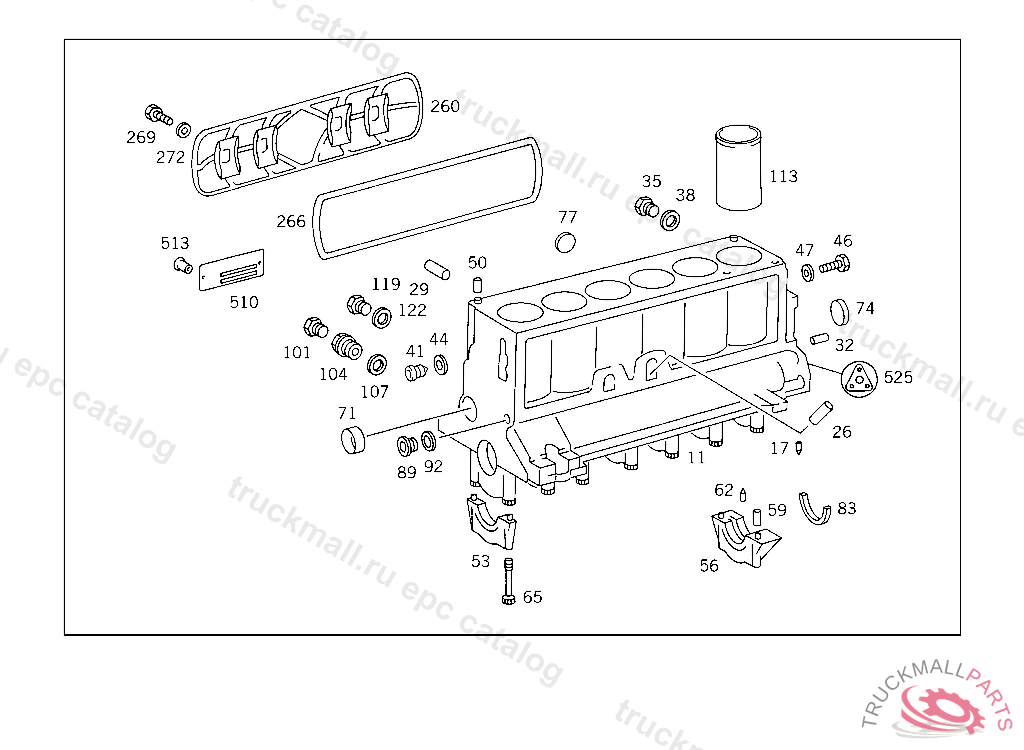

Поз.
Артикул
Описание
11
CRANKCASE THREE-HOLE MOUNTING 77 MM, 341.912,932,936,941 UP TO ENGINE 082803
11
CRANKCASE , 900,910,911,912,915,919,931,932,935,941,995 UP TO CHASSIS A 045607,936 UP TO CHASSIS A 004202
11
CRANKCASE , Replaced By: A3410100108
11
CRANKCASE , Replaced By: A3520106908
11
GASKET KIT , Replaced By: A3520101280
17
SAFETY PIN. PIN ,A 003512
26
SLEEVE
29
SLEEVE , UP TO ENGINE 289000 YEAR OF MANUFACTURE 1993
32
CYLINDRICAL PIN
50
CYLINDRICAL PIN CYLINDER HEAD TO CYLINDER CRANKCASE
50
DOWEL PIN , Replaced By: N000007014208
53
BEARING CAP , Replaced By: A3520100923
53
BEARING CAP , Replaced By: A3520100823
53
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE, Replaced By: A3660100223
53
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 104742, Replaced By: A3660100023
53
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE, Replaced By: A3660100123
53
BEARING CAPNO.1,3,4
53
BEARING CAPNO.2
56
BEARING CAPNO.5,A 003512
56
BEARING CAPNO.5,A 003511
56
BEARING CAP , Replaced By: A3520101023
56
BEARING CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE, Replaced By: A3660100323
59
CYLINDRICAL PIN
59
DOWEL PIN CRANKSHAFT BEARING CAP TO 366 010 03 23, 02 23, 03 23
62
SAFETY PIN. PIN ,A 003512
65
SCREW
71
CAMSHAFT BEARINGNO.2,NO.3
71
CAMSHAFT BEARINGNO.1
71
CAMSHAFT BEARINGNO.2,NO.3
71
CAMSHAFT BEARING , Replaced By: A3520510010
74
EXPANSION PLUG , Replaced By: A3529970320
74
EXPANSION PLUG
77
EXPANSION PLUG OIL DIPSTICK BORE
83
SEAL RING CRANKSHAFT SEALING,REAR,A 003512
83
SEAL RING , Replaced By: A0019973141
83
SEAL RING , Replaced By: A0019974141
89
SCREW PLUG , Replaced By: N000908016000
89
SCREW PLUG , Replaced By: N000908016000
89
SCREW PLUG , Replaced By: N000908016000
89
SCREW PLUG
92
SEAL RING SHIFT CASE,TOP
101
SCREW PLUG FUEL DISCHARGE
107
SEAL RING LINE TO OIL PUMP
113
CYLINDER LINER , Replaced By: A3620110310
113
CYLINDER LINER , Replaced By: A3620110310
113
CYLINDER LINER , Replaced By: A3620110310
119
SCREW PLUG WATER DRAIN
119
SPRING ,4 263013
122
SEAL RING VALVE TO VALVE,K 025179
260
COVER
266
GASKET PUSH ROD CHAMBER COVER
269
SCREW PROPELLER SHAFT TO COUPLING FLANGE
272
SEAL RING PUSH ROD CHAMBER COVER TO CYLINDER CRANKCASE
510
ENGINE NUMBER PLATE
513
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
525
GASKET KIT , Replaced By: A3410101008
525
GASKET KIT , Replaced By: A3410100080, +001A3410100180
525
GASKET KIT , Replaced By: A3525862290
525
GASKET KIT , Replaced By: A3520101480
999
CLAMP OIL FILLING
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
SEAL RING , Replaced By: A0119972948
999
SEAL RING
999
SEAL RING
999
ENGINE , Replaced By: A3410107744
999
SHORT-BLOCK , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 099031, Replaced By: A3410102350
999
GASKET KIT CYLINDER HEAD, FOR BREAK-DOWN OF GASKET KIT,SEE END OF GROUP 01
999
SHORT-BLOCK , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 099031, Replaced By: A3410102450
999
SHORT-BLOCK , Replaced By: A3410104350
999
SHORT-BLOCK , Replaced By: A3410104650
999
SHORT-BLOCK , Replaced By: A3410104650
999
SHORT-BLOCK , Replaced By: A3440102750
999
SHORT-BLOCK , Replaced By: A3410100050
999
ENGINE WITH BELL HOUSING
999
GASKET TIMING CASE TO CYLINDER CRANKCASE
999
SHORT-BLOCK WITH GASKET KIT, ONLY APPLICABLE TO ENGINES HAVING CAMSHAFT DRIVEN AIR COMPRESSOR WITH 94 MM DIA.PISTON
999
GASKET
999
GASKET
999
GASKET
999
GASKET TIMING CASE COVER TO TIMING CASE
999
GASKET COVER TO TIMING CASE
999
GASKET , Replaced By: A3520160921
999
CYLINDER HEAD GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 708084, Replaced By: A3520161320
999
CYLINDER HEAD GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 708084, Replaced By: A3520161320
999
GASKET CYLINDER HEAD COVER
999
GASKET INJECTION PUMP TO TIMING CASE
999
SEAL
999
GASKET , Replaced By: A3521420480
999
GASKET EXHAUST MANIFOLD
999
GASKET , Replaced By: A3642010280
999
GASKET WATER PUMP COVER
999
GASKET , Replaced By: A3522032480
999
GASKET , Replaced By: A3522032280
999
GASKET COVER TO THERMOSTAT HOUSING, NOT USED
999
GASKET1 MM
999
GASKET , Replaced By: A3522032680
999
SEAL RING DELIVERY LINES
999
GASKET WATER PUMP TO CYLINDER CRANKCASE
999
GASKET TIMING CASE COVER TO TIMING CASE,070205
999
GASKET TIMING CASE TO CYLINDER CRANKCASE
999
GASKET , Replaced By: A3661840180
999
GASKET OIL FILTER TO CYLINDER CRANKCASE
999
GASKET PIPE SOCKET TO CYLINDER HEAD, UP TO IDENT NO.5 448662, FROM IDENT NO. 5 448663 SEE UNIT MICROFICHE
999
SEAL RING BRACKET TO CYLINDER HEAD
999
SEAL RING LINE CONNECTION
999
SEAL RING PREHEATER TO OIL PAN
