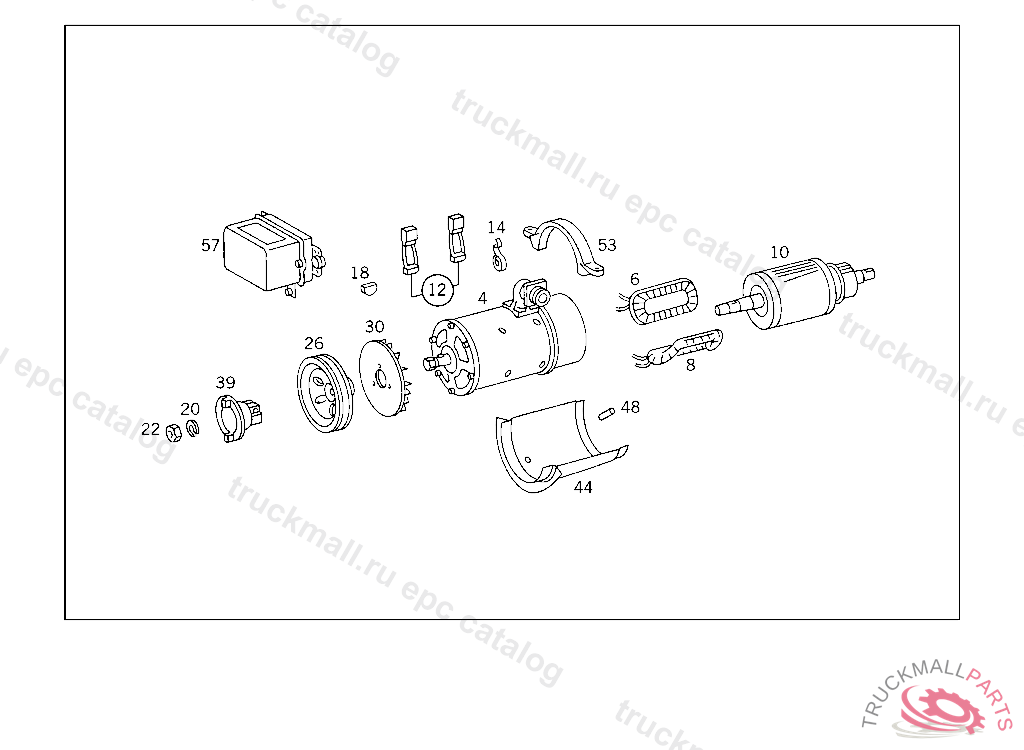

Поз.
Артикул
Описание
4
ALTERNATOR24 V 38 A
6
COIL
8
COIL
10
ARMATURE
12
CARBON BRUSH SET
12
CARBON BRUSH SET
14
SPRING
18
WOODRUFF KEY POWER STEERING PUMP
20
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
22
NUT , Replaced By: N308673014001
22
NUT BRACKET TO SIDE MEMBER,K 035196
26
PULLEY ALTERNATOR
30
WASHER
39
COUPLING HALF ALTERNATOR
44
BEARING BODY ALTERNATOR
44
CLAMPING BOLT
48
CYLINDRICAL PIN , Replaced By: N000007008101
48
CYLINDRICAL PIN
53
CLAMP ALTERNATOR
57
REGULATOR AND CUT-OUT WITH HOSE-PROOF ENCLOSURE 24 V
999
SPRING , Replaced By: A0001541493
999
SPRINGTO 004 154 75 02
999
SPRING , Replaced By: A0001541193
999
ALTERNATOR600 W/12 V
