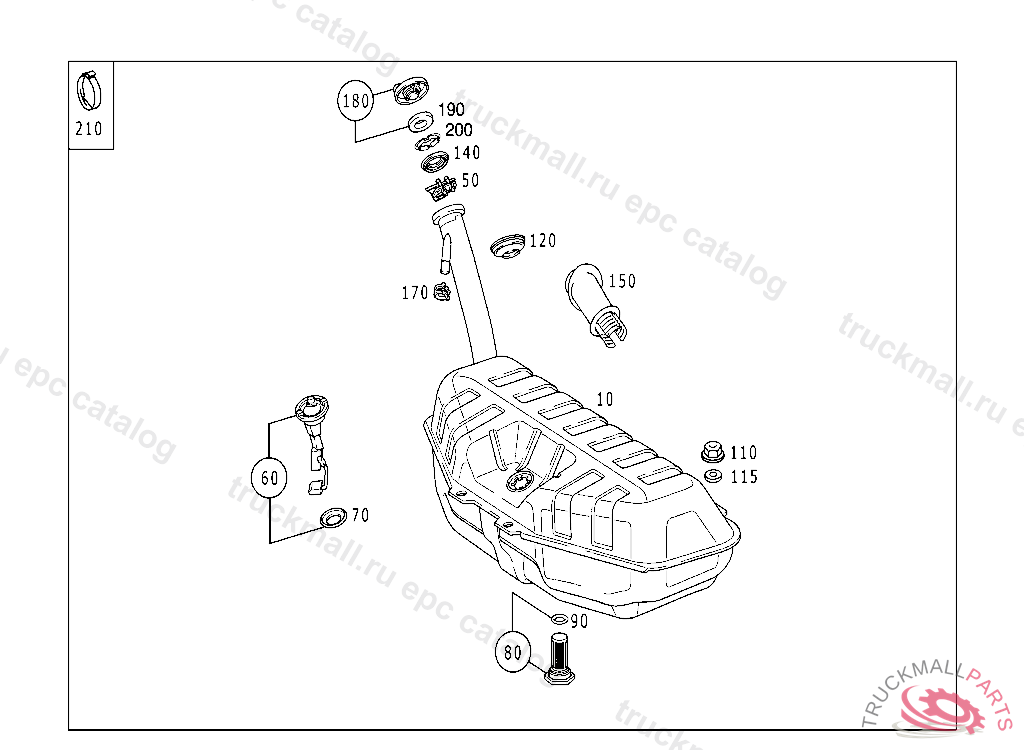

E 280 - 210.663 FROM MODELLJAHR CODE 800 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
10
FUEL TANK70 L
50
FUNNEL , Replaced By: A1694700029
60
SENDER UNIT
70
SEAL RING , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
80
FUEL STRAINER
90
SEAL RING , ONLY FOR VEHICLES WITH VEGETABLE OIL METHYLESTER OPERATION (PME)
110
HEXAGON NUT
120
GROMMET
140
GROMMET FILLER NECK
170
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
180
FILLER CAP
190
SEAL RING FILLER CAP
210
LOOM TIE BREATHER LINE TO FUEL TANK
