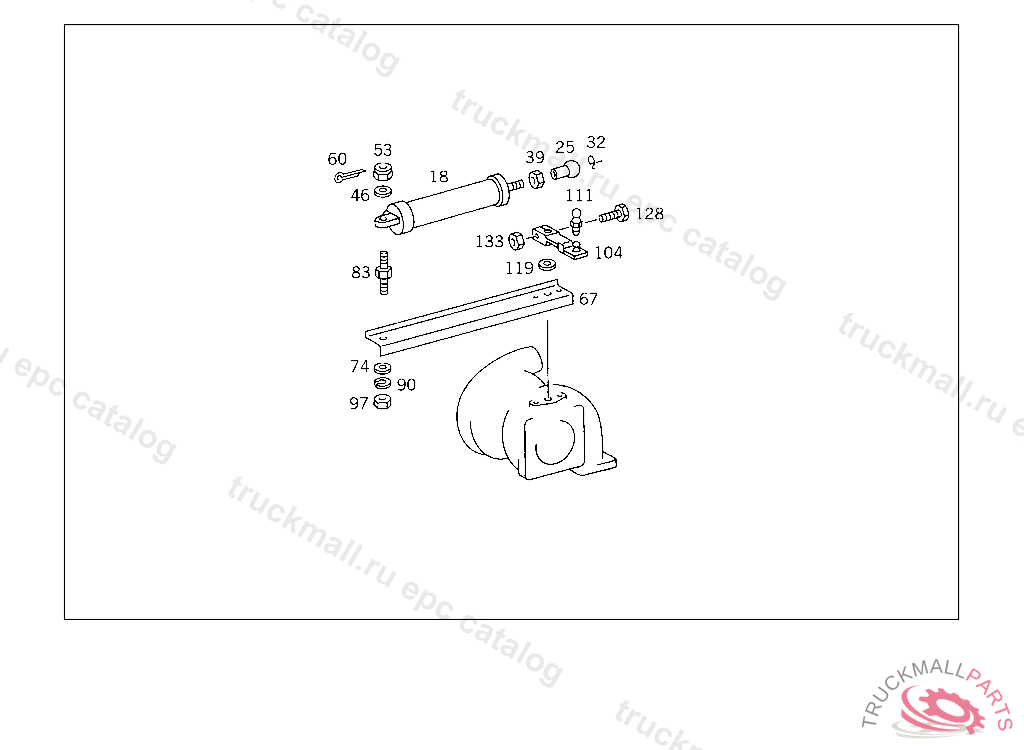

Поз.
Артикул
Описание
18
CYLINDER COMPRESSED AIR OPERATED
25
BALL SOCKET POWER CYLINDER
32
SNAP RING
39
NUT STRAP TO SUPPORT,5 149419
46
WASHER EXHAUST MUFFLER TO STRAP
46
WASHER , Replaced By: N000125008443
53
NUT FROM SHIFT LEVER TO P.T.O.
60
COTTER PIN PULL ROD
67
BRACKET COMPRESSED AIR CYLINDER
74
WASHER , Replaced By: N007349013005
74
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
83
PIN BRAKE CYLINDER AND ANGULAR LEVER TO OIL PAN
90
LOCK WASHER FITTING TO BRACKET
97
NUT STRAP TO SUPPORT,5 149419
104
LEVER COMPRESSED AIR CYLINDER TO BRACKET
111
BALL PIVOT
119
FITTED WASHER CLUTCH SLAVE CYLINDER TO RELEASE YOKE,4 667416
128
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
128
SCREW , Replaced By: N304017008027
133
NUT , Replaced By: N304032008006
999
CYLINDER
999
CYLINDER CLUTCH OPERATION, COMPONENT PARTS NOT AVAILABLE
