Главная
›
Mercedes
›
ENGINE
›
OM 355 H
›
355.972 TO MOTOR 533223
›
05 TIMING
›
001 TIMING
Mercedes A3120530127 - Конический сухарь

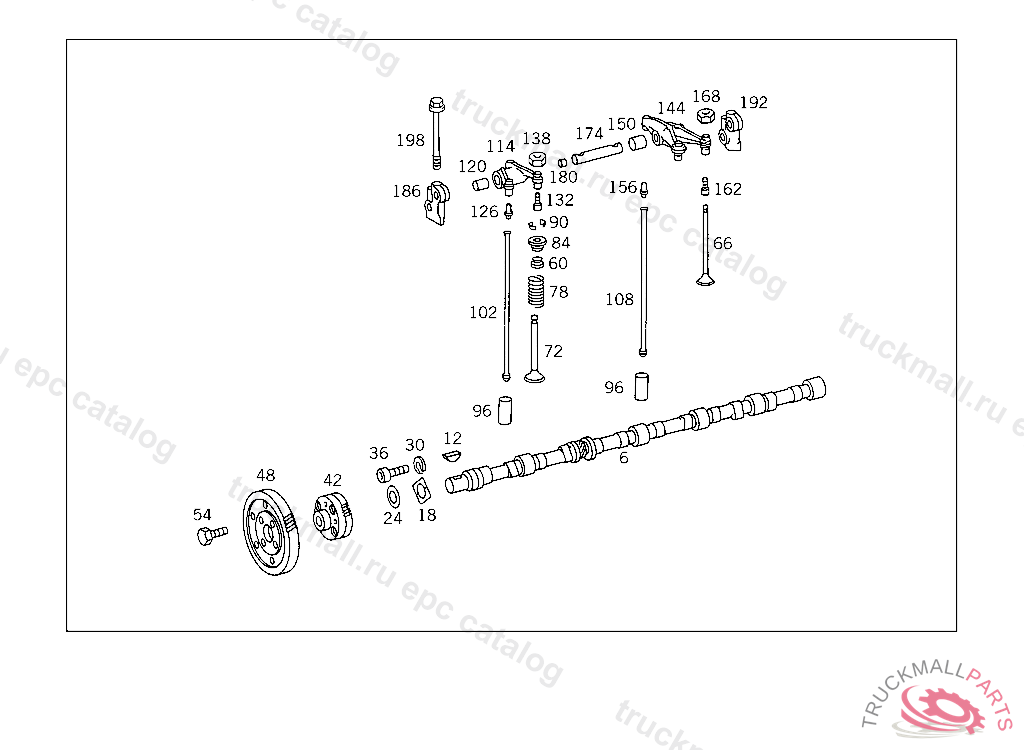

OM 355 H 355.972 TO MOTOR 533223
05 TIMING - 001 TIMING
Поз.
Артикул
Описание
6
A3550510401
CAMSHAFT STANDARD
12
N006888006006
WOODRUFF KEY CRANKSHAFT
18
A3460520162
THRUST WASHER
24
A3460770052
SPACER WASHER
30
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
36
N000912008047
SCREW HYDRAULIC CLUTCH TO ENGINE, 021,023 UP TO CHASSIS 086009
42
A3460770014
DRIVE GEAR
48
A3460520001
CAMSHAFT GEAR
54
N304017010040
SCREW STRUT TO CROSS MEMBER M 10X25
54
N000933010174
SCREW , Replaced By: N304017010040
60
A3520530296
BOOT INTAKE TO 352 05312 29-15 29
66
A3460530005
EXHAUST VALVE SEE ALSO GROUP 05
72
A3460530001
INTAKE VALVE SEE ALSO GROUP 05
78
A3520530320
VALVE SPRING
84
A3220530125
SPRING RETAINER
90
A3120530127
VALVE COLLET
90
A3660530026
VALVE COLLET (VALVE CONE HALF)
90
A3430537027
VALVE COLLET
96
A3460540201
VALVE TAPPET
96
A3550540101
VALVE TAPPET
102
A3450547105
PUSH ROD INTAKE
102
A3260540605
PUSH ROD INTAKE
108
A3450547205
PUSH ROD EXHAUST
108
A3260540705
PUSH ROD EXHAUST
114
A3460500033
ROCKER ARM INTAKE VALVE
120
A3460550250
BUSHING
126
A3260550421
BALL PIN
126
A3260550221
BALL PIN
132
A3260500220
SET SCREW
138
A3269900151
NUT
144
A3460500134
ROCKER ARM
150
A3460550350
BUSHING
156
A3260550221
BALL PIN
156
A3260550421
BALL PIN
162
A3260500220
SET SCREW
168
A3269900151
NUT
174
A3260500031
ROCKER ARM SPINDLE , Replaced By: A3450507031
180
A3269970520
EXPANSION PLUG
186
A3260550210
ROCKER ARM BRACKET FRONT
192
A3260550310
ROCKER ARM BRACKET REAR
198
A3269900001
SCREW ROCKER ARM BRACKET TO CYLINDER HEAD
999
A3220530420
VALVE SPRING
