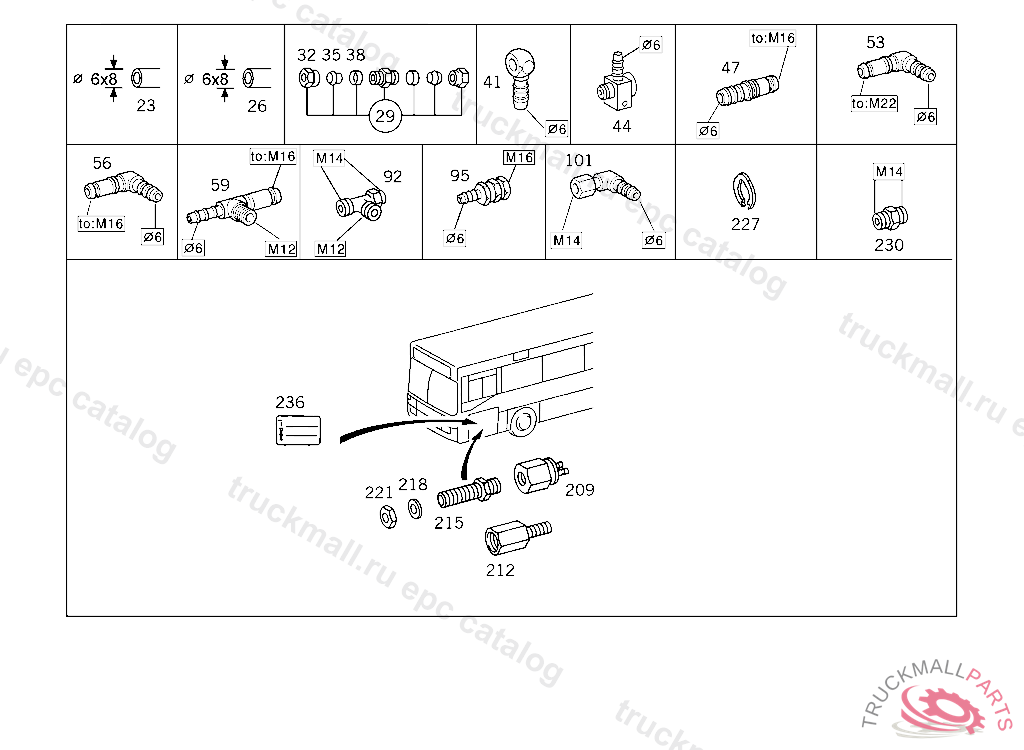

Поз.
Артикул
Описание
23
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
26
PLASTIC PIPE AERATION, ORDER BY THE METER
26
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
29
FITTING (PARTS KIT),LINE RUPTURE
32
UNION NUT LINE CONNECTION
35
GLAND LINE CONNECTION
38
SLEEVE LINE CONNECTION
41
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
41
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
44
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO 008 997 90 82
47
CONNECTOR , Replaced By: A0029905478
53
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
56
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
56
ELBOW FITTING , Replaced By: A0049905371
59
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
92
T-FITTING 3/2-WAY VALVE
95
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
101
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 14 / 6 MM
209
SWITCH EXHAUST BRAKE
212
ADAPTER FITTING TEST CONNECTION
215
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
218
WASHER
221
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
227
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
230
FITTING HYDRAULIC LINE TO BRACKET,K 130132
236
GUIDE SIGN IN GERMAN,SPRING-LOADED BRAKE UNIT EMERGENCY RELEASE
999
HOLLOW SCREW FITTING SHIFTING CYLINDER
999
SEAL RING LINE CONNECTION
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
999
SCREW. UNION SCREW LINE CONNECTION
999
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
999
VALVE (QUICK-RELEASE VALVE)
