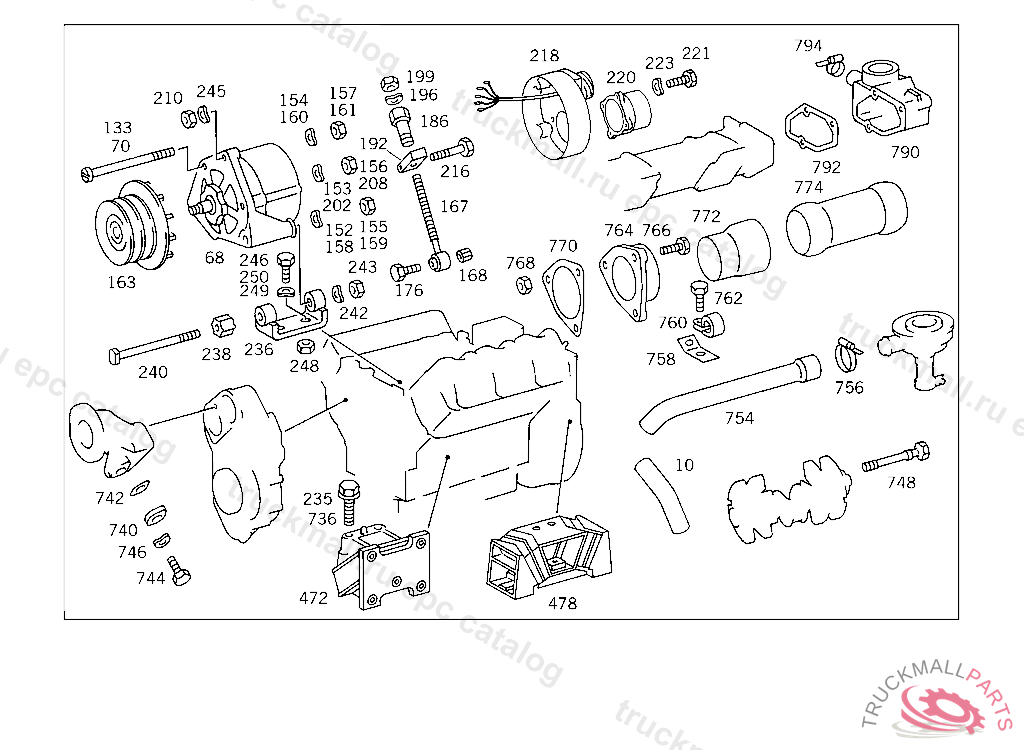

Поз.
Артикул
Описание
10
HOSE CYLINDER CRANKCASE BREATHING
68
ALTERNATORN1 28V 10/55A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
68
ALTERNATOR , Replaced By: A0091540702
70
SCREW , Replaced By: A0009909621
70
SCREW
133
SCREWTO 005 154 11 02
152
SPRING WASHER , Replaced By: N000137008204
152
SPRING WASHER , Replaced By: N000137008212
152
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
153
SPRING WASHER ALTERNATOR CONNECTION W
154
SPRING WASHER HEATER PLUG CABLE HARNESS
154
SPRING WASHER ELECTRIC CABLE TO ALTERNATOR
155
NUT
155
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
156
NUT BALL PIVOT TO LEVER
157
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
157
NUT , Replaced By: N304032005005
157
NUT IN CASE OF SUBSEQUENT INSTALLATION
157
NUT TACHOGRAPH TO BRACKET
158
SPRING WASHER , Replaced By: N000137008204
158
SPRING WASHER , Replaced By: N000137008212
158
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
159
NUT COVER TO CASE
160
SPRING WASHER ALTERNATOR CONNECTION W
161
NUT BALL PIVOT TO LEVER
163
FAN , Replaced By: A0001558518
167
CLAMPING BOLT FOR V-BELT TENSIONING
167
CLAMPING BOLT
167
CLAMPING BOLT (CLAMPING BOLT)
168
BUSHING
168
BUSHINGTO 355 150 03 72,366 150 13 72
168
BUSHING
176
SCREW BRACKET TO FRAME SIDE MEMBER
176
NUT BRACKET TO SUPPORT AND TO END PIECE
176
SCREW BRACKET TO SIDE MEMBER M10X38
176
SCREW , Replaced By: N304017010036
186
NUT TIGHTENER PULLEY TO LEVER
192
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
192
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
192
CLAMPING PIECE TIGHTENER PULLEY
196
SPRING WASHER CAB FLOOR
199
NUT R.H. THREAD
199
NUT
199
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
202
WASHER , Replaced By: N000125013008
202
WASHER RADIATOR TO RUBBER MOUNTING
202
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
208
NUT SPRING-LOADED PUSH ROD
208
NUT ANGLE TO FRAME
208
NUT
208
NUT , Replaced By: N304032008006
208
NUT IN CASE OF SUBSEQUENT INSTALLATION
208
NUT , Replaced By: N304032005005
210
NUT BRACKET TO SUPPORT AND TO END PIECE
210
NUT SUPPORT TO SIDE MEMBER
210
NUT STRAP TO SUPPORT
216
SCREW TORSION BAR TO SHACKLE,5 903514
216
SCREW CLAMPING BOLT TO BRACKET
216
SCREW POWER STEERING PUMP BRACKET
216
SCREW ,5 903514, Replaced By: N000960012353
216
SCREW CLAMPING BOLT TO ALTERNATOR
218
PLUG & SOCKET CONNECTION (AIR INTAKE COVER)
220
PIPE SOCKET (INTAKE PIPE-SOCKET)
221
SCREW LICENSE PLATE TO BRACKET
223
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
235
SCREW SUPPORTING ARM TO ENGINE
235
SCREW SUPPORTING ARM TO ENGINE
235
SCREW , Replaced By: N914126012011
236
SUPPORT ALTERNATOR
238
BUSHING
240
SCREW ALTERNATOR MOUNTING
242
SPRING WASHER STEERING COLUMN BRACKET TO CAB
243
NUT AIR CLEANER ELEMENT
245
SPRING WASHER STEERING COLUMN BRACKET TO CAB
246
SCREW PIPE ELBOW TO BRACKET M 10X50
246
SCREW , Replaced By: N304017010002
246
SCREW , Replaced By: N304017010053
246
SCREW BRACKET TO SIDE MEMBER
248
NUT BRACKET TO SUPPORT AND TO END PIECE
249
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
250
SCREW , Replaced By: N304017010040
250
SCREW STRUT TO CROSS MEMBER M 10X25
472
RUBBER MOUNTING
472
RUBBER MOUNTING FRONT LEFT AND RIGHT, 415 5 014668 416 5 000515 417 4 972023
478
RUBBER MOUNTING REAR
736
SCREW SUPPORTING ARM TO ENGINE
736
SCREW , Replaced By: N914126012011
736
SCREW SUPPORTING ARM TO ENGINE
740
FLANGE WATER DRAIN
742
GASKET
744
SCREW , Replaced By: N304017008034
744
SCREW BRACKET TO CROSS CONNECTION STRUT
746
SPRING WASHER , Replaced By: N000137008212
746
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
748
SCREW
754
HOSE (MOLDED HOSE)
756
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
758
BRACKET MOLDED HOSE TO INTAKE MANIFOLD
760
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
762
SCREW COVER PLATE TO COVER PLATE M 6 X 12
762
SCREW , Replaced By: N304017006018
764
FLANGE
766
SCREW CONNECTOR TO EXHAUST MANIFOLD
768
NUT , Replaced By: N999901012000
768
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
770
FLANGE GASKET , Replaced By: A4424920080
770
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
772
CONNECTOR
774
CONNECTOR FROM THROTTLE HOUSING FLANGE TO EXHAUST PIPE
790
CONNECTION PIPE SOCKET DIAPHRAGM TYPE DASHPOT ON INTAKE MANIFOLD
792
GASKET INTAKE MANIFOLD
794
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
794
CLAMP , Replaced By: N000000000667
999
DIODE , Replaced By: A0015480018
999
DIODE , Replaced By: A0015481118
999
REPAIR KIT , Replaced By: A0001500372
999
BALL BEARING PULLEY
999
ELBOW FITTING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3141800358
999
SCREW
999
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
999
STUD THROTTLE HOUSING TO EXHAUST GAS TURBOCHARGER
999
LOCK
999
CLAMP , Replaced By: N916016032201
999
HOSE , Replaced By: A4969970082
999
LOOM TIE
999
LOOM TIE , Replaced By: N916017040000
999
LOOM TIE , Replaced By: N916017025000
999
V-BELT , Replaced By: A0029973392
999
STARTING MOTOR12 V
999
REGULATOR AND CUT-OUT , Replaced By: A3455477002
999
PULLEY , Replaced By: A0011551015
999
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
999
BELT PULLEY F POLY-V BELT TWO-GROOVE,208848/91
999
FUEL FILTER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 035153, Replaced By: A0010921801
999
FUEL FILTER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0014774801
999
FUEL FILTER , Replaced By: A0014775701
999
SWITCH , Replaced By: A0015454914
999
PLUG SOCKET , Replaced By: A0005453726
999
DIODE , Replaced By: A0015481518
999
BALL BEARING , Replaced By: A0039818025
999
SCREW , Replaced By: A0019902120
999
LOOM TIE LINE MOUNTING 280 MM
999
STARTING MOTOR , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A0031515901
999
THERMOSTAT ELEMENT ,078816, Replaced By: A0032032875, +001A3522032280
999
THERMOSTAT ELEMENT , 314.9 259272 352.9 437435, Replaced By: A0032033175, +001A3522032280
999
DIODE , Replaced By: A0005489818
999
DIODE , Replaced By: A0005485018
999
DIODE , Replaced By: A0015480018
999
BOOT , Replaced By: A0005463335
999
GASKET
999
SWITCH , Replaced By: A0015450214
999
SWITCH , Replaced By: A0005456314
999
NUT
999
NUT
999
NUT
999
FILTER ELEMENT , Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A0000922705
999
FELT TUBE ELEMENT. FILTER ELEMENT , Replaced By: A0000922705
999
FANTO 005 154 34 02,007 154 27 02/07 02,208848/91
999
FAN ALTERNATOR
999
FAN , Replaced By: A0001556318
999
FAN
999
RECTIFIER , Replaced By: A0001545716
999
SPRING , Replaced By: A0001541193
999
SPRINGTO 004 154 75 02
999
CLAMPING BRACKET
999
CARBON BRUSH SET , Replaced By: A0001511114
999
SPACER WASHER , Replaced By: A0001511452
999
TERMINAL TERMINALS: B+, B-, D+, W
999
FOLLOWER , Replaced By: A0001320710
999
HOSE , Replaced By: A6235280082
999
FILTER ELEMENT , Replaced By: A3524700092
999
FILTER ELEMENT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0000922705
999
V-BELT , Replaced By: A0049970192
999
SEAL RING
999
ALTERNATOR
999
ALTERNATOR
999
THERMOSTAT ELEMENT , NOT USED, Replaced By: A0032032975
999
THERMOSTAT ELEMENT , Replaced By: A0032037475
999
THERMOSTAT ELEMENT , NOT USED, Replaced By: A0032033275
999
THERMOSTAT ELEMENT , Replaced By: A0032037975
999
V-BELT FAN DRIVE,D 180260
999
CONTACT BUSHING. ROUND PIN BUSHING FROM ELECTRICAL COMPARTMENT TO CONTROL UNIT,SENSOR,ABS SOLENOID VALVE 1,5 MM2
999
PLUG , Replaced By: A0015457726
999
BALL BEARING , Replaced By: A0059812225
999
CABLE TIE BRANCH-OFF LINE FASTENING FOR RPM SENSOR
999
ALTERNATOR , MB PART NO.003 154 81 02BOSCH PART NO. 0 120 400 754 MB PART NO.005 154 11 02BOSCH PART NO. 0 120 400 877 MB PART NO.005 154 34 02BOSCH PART NO. 0 120 469 518 MB PART NO.007 154 27 02BOSCH PART NO. 0 120 469 686, Replaced By: A0051543402
999
ALTERNATOR , MB PART NO.003 154 39 02BOSCH PART NO. 0 120 400 700 MB PART NO.005 154 29 02BOSCH PART NO. 0 120 489 723 MB PART NO.005 154 33 02BOSCH PART NO. 0 120 489 725, Replaced By: A0051543302
999
ALTERNATOR , Replaced By: A0071542302, +001A0001557118
999
ALTERNATOR , Replaced By: A0071542702
999
PLUG SOCKET , Replaced By: A0045455026
999
PLUG SOCKET
999
PLUG SOCKET
999
HOSE , Replaced By: A3405010382
999
SEAL RING
999
SEAL RING
999
CONTACT PIN1.0-2.5 MM2
999
PLUG
999
GASKET , Replaced By: A3521410580
