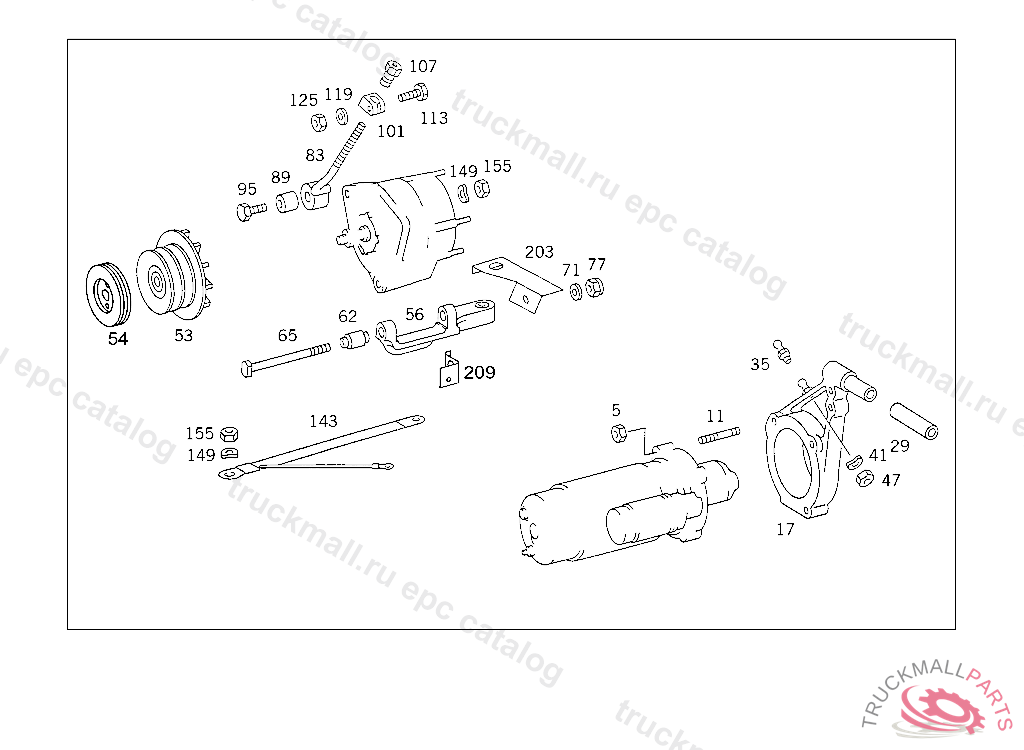

Поз.
Артикул
Описание
5
NUT
11
STUD STARTING MOTOR MOUNTING
17
FLANGE STARTING MOTOR INTERMEDIATE FLANGE
17
FLANGE STARTING MOTOR INTERMEDIATE FLANGE
29
BEARING
35
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
41
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
41
SPRING WASHER , Replaced By: N000137008212
47
HEXAGON NUT. NUT , Replaced By: N913023008002
47
NUT ENGINE MOUNTING M8
53
FANTO 005 154 34 02,007 154 27 02/07 02,208848/91
53
FANTO 344 154 71 02
53
FAN FAN TWO-GROOVE V-BELT PULLEY TO 006 154 24 02
53
FAN , Replaced By: A0001558518
54
PULLEY , Replaced By: A0011551015
54
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
54
BELT PULLEY F POLY-V BELT TWO-GROOVE,208848/91
56
BRACKET
56
BRACKET ALTERNATOR
62
BUSHING
62
BUSHINGTO 355 150 03 72,366 150 13 72
62
BUSHINGTO 366 150 06 73
65
SCREW ALTERNATOR MOUNTING
71
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
71
WASHER RADIATOR TO RUBBER MOUNTING
77
SCREW SUPPORT TO ALTERNATOR TO 366 150 06 73
77
NUT AIR CLEANER ELEMENT
77
SCREW , Replaced By: A0049906504
83
CLAMPING BOLT , Replaced By: A3551500372
83
CLAMPING BOLT (CLAMPING BOLT)
89
BUSHINGTO 355 150 03 72,366 150 13 72
95
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
101
CLAMPING PIECE TIGHTENER PULLEY
101
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
107
NUT TIGHTENER PULLEY TO LEVER
113
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1.5X60
113
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
119
WASHER , Replaced By: N000125013008
119
WASHER
125
NUT BRACKET TO SIDE MEMBER M12X1.5
125
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
143
ELECTRIC CABLE GROUND CABLE TO GENERATOR
149
SPRING WASHER ALTERNATOR CONNECTION D+
149
SPRING WASHER ALTERNATOR CONNECTION W
149
SPRING WASHER HEATER PLUG CABLE HARNESS
155
NUT , Replaced By: N304032005005
155
NUT RELAY TO BRACKET M5
155
NUT IN CASE OF SUBSEQUENT INSTALLATION
155
NUT BALL PIVOT TO LEVER
203
BRACKET CABLE HARNESS MOUNTING
209
BRACKET
