Поз.
Артикул
Описание

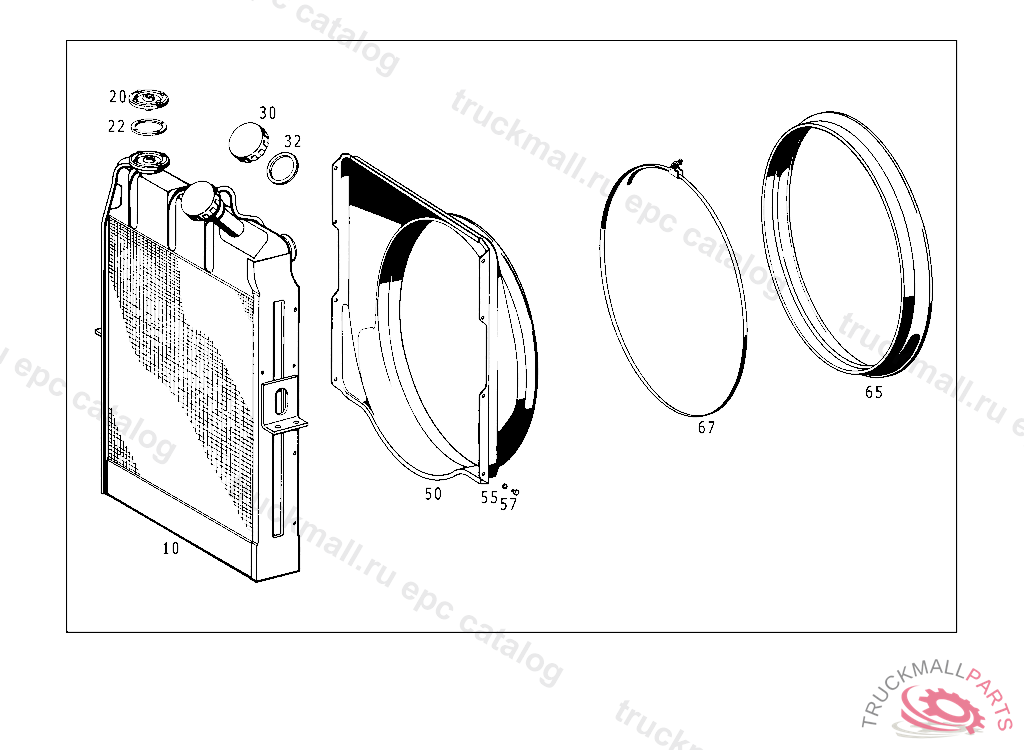

10
RADIATOR
20
VALVE WATER DRAIN
22
GASKET
30
RADIATOR CAPTO 346 500 54 03,4 299345
32
GASKET , OM 326,L FROM CHASSIS 004266,LP FROM CHASSIS 001438
50
AIR BAFFLE
55
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
57
SCREW COVER PLATE TO COVER PLATE M 6 X 10
57
SCREW , Replaced By: N304017006034
65
BOOT FAN SHROUD TO FAN RING
67
CLAMP FAN SHROUD TO FAN RING
999
CLAMP , Replaced By: N000000000667
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT , Replaced By: N304032005005
999
STUD BOLT CASE COVER TO TRANSMISSION M 10X20
999
NUT
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
SCREW IN CASE OF SUBSEQUENT INSTALLATION
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
LOCK WASHER
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
999
AIR BAFFLE , Replaced By: A3635000016
999
HOSE FROM RADIATOR TO THERMOSTAT, UP TO CHASSIS 809916 EXCEPT FOR:798601,806497,809273,809448,809674
999
LINE
999
PIPE ELBOW , Replaced By: A3875010356
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
