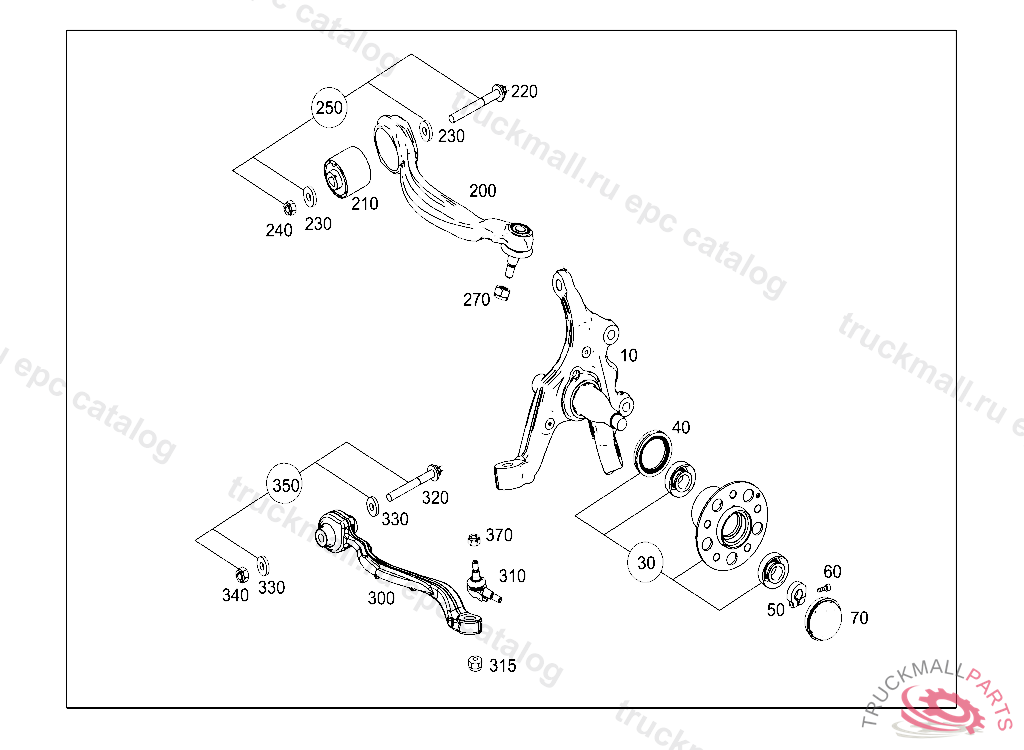

Поз.
Артикул
Описание
10
STEERING KNUCKLE RIGHT
10
STEERING KNUCKLE LEFT
30
FRONT WHEEL HUB
40
SEAL RING
50
CLAMPING NUT
60
HEXALOBULAR BOLTM6X25
70
LOCKING CAP FRONT WHEEL HUB TO STEERING KNUCKLE
200
STRUT ROD LEFT WITH BEARING
200
STRUT ROD RIGHT WITH BEARING
220
ADJUSTMENT SCREW FOR ADJUSTING WORK ONLY
220
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
230
SPACER DISK TORQUE STRUT TO FRAME-TYPE INT. SUPP.
230
INDEXING PLATE FOR ADJUSTING WORK ONLY
240
NUT W FLANGE, BINDING FOR ADJUSTING WORK ONLY
240
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
250
TS ADJUSTMENT SCREW FOR ADJUSTING WORK ONLY
270
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
300
CROSS MEMBER RIGHT
300
CROSS MEMBER LEFT
310
JOINT CROSS STRUT, IMPORTANT: UP TO CHASSIS NUMBER A001281 STEERING KNUCKLE MUST ALSO BE EXCHANGED, OBSERVE WIS!
315
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
320
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
320
ADJUSTMENT SCREW FOR ADJUSTING WORK ONLY
330
INDEXING PLATE FOR ADJUSTING WORK ONLY
330
SPACER DISK TORQUE STRUT TO FRAME-TYPE INT. SUPP.
340
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
340
NUT W FLANGE, BINDING FOR ADJUSTING WORK ONLY
350
TS ADJUSTMENT SCREW FOR ADJUSTING WORK ONLY
370
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
