Поз.
Артикул
Описание

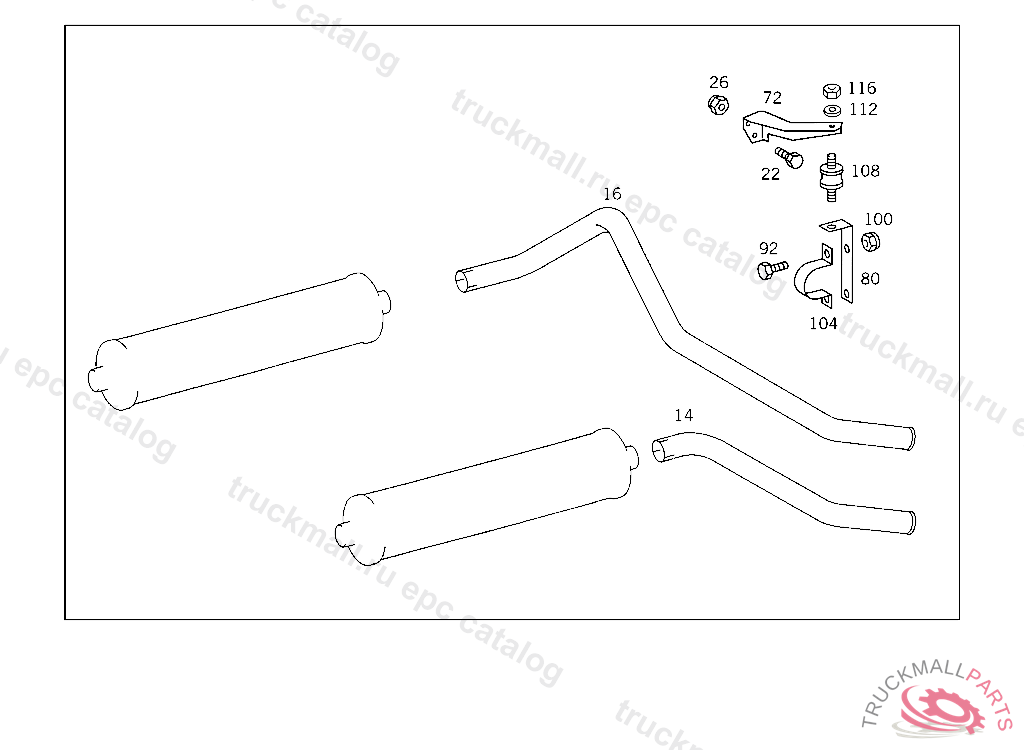

14
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
14
END PIECE SHORT,EXHAUST MUFFLER,LEFT
14
END PIECE , Replaced By: A6174923314
16
END PIECE , Replaced By: A6174923414
16
END PIECE EXHAUST MUFFLER,RIGHT REAR
16
END PIECE LONG,EXHAUST MUFFLER,RIGHT
22
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
22
SCREW , Replaced By: N304017008027
22
SCREW , Replaced By: N304017008034
26
NUT , Replaced By: N913004008001
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
72
SUPPORT EXHAUST PIPE TO SIDE MEMBER
80
BRACKET EXHAUST PIPE TO SUPPORT
80
BRACKET TAIL PIPE
80
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6174922341
92
SCREW , Replaced By: N304017008034
100
NUT , Replaced By: N913004008001
100
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
104
CLAMP EXHAUST PIPE TO SUPPORT
108
RUBBER BUFFER BRACKET TO SUPPORT
112
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
116
NUT BRACKET TO SUPPORT AND TO END PIECE
999
GLASS PANE
999
CONNECTOR REAR
999
CONNECTOR REAR
999
CONNECTOR REAR
999
SUPPORT TAIL PIPE TO SIDE MEMBER
999
SUPPORT , Replaced By: A3604910016
999
SUPPORT EXHAUST
999
SUPPORT EXHAUST PIPE
999
BRACKET EXHAUST PIPE
999
DAMPING PAD PARTICLE FILTER
999
SUPPORT REAR EXHAUST PIPE
999
BRACKET EXHAUST
999
REAR EXHAUST PIPE TAIL PIPE,4 613840
999
REAR EXHAUST PIPE REAR,4 613840
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
BRACKET EXHAUST
999
BRACKET , Replaced By: A3834927941
999
BRACKET , Replaced By: A3814923841, +001N071555075502
999
BRACKET EXHAUST
999
REAR EXHAUST PIPE CENTRAL PART,4 613840
999
REAR EXHAUST PIPE CENTRAL PART,4 613840
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
EXHAUST MUFFLER
999
EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
BRACKET TAIL PIPE
999
SUPPORT TAIL PIPE
999
END PIECE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
BRACKET , Replaced By: A6164920241
999
BRACKET REAR EXHAUST PIPE,5 193594 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET , Replaced By: A6164923241
999
BRACKET , Replaced By: A3604923541
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET , Replaced By: A6174926341
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
BRACKET
999
EXHAUST MUFFLER
999
EXHAUST PIPE ,5 953233
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE TAIL PIPE ON THE RIGHT
999
END PIECE (TAIL PIPE),5 758826
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
END PIECE (TAIL PIPE)
