Поз.
Артикул
Описание

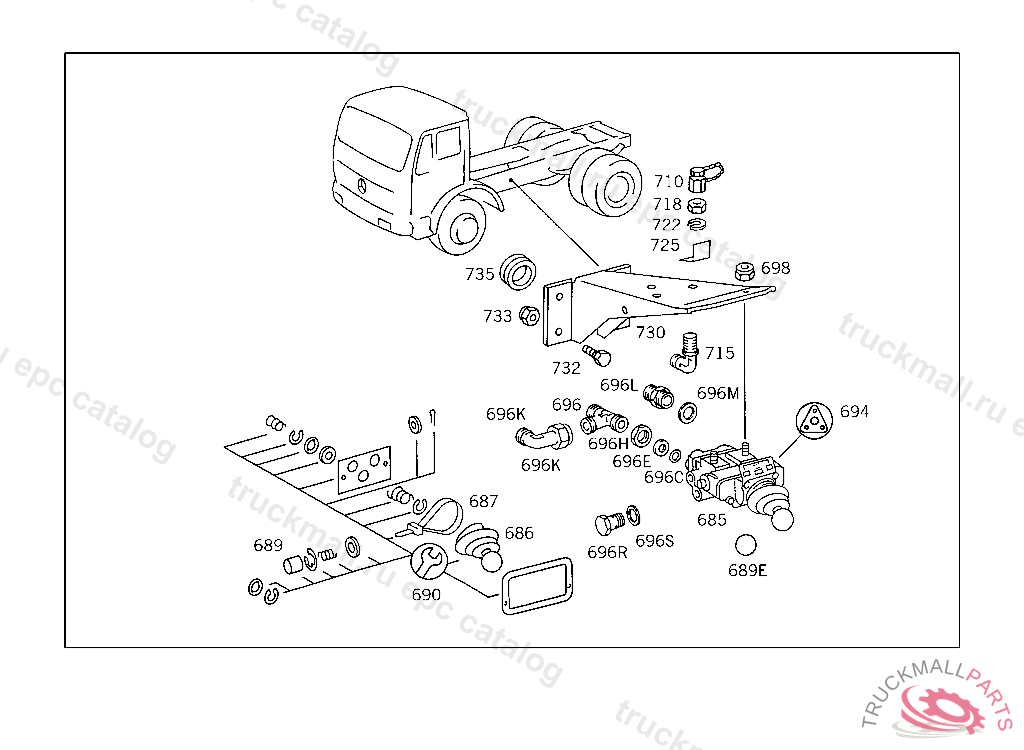

685
VALVE , FOR USE WITH MERCEDES-BENZ PLATFORM, Replaced By: A0003290825
685
VALVE ,4 809255 CONNECTING LINES TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0003290425, +001A3873200443
685
VALVE SELF-LEVELLING DEVICE,MANUAL KNORR, FOR USE WITH MERCEDES-BENZ PLATFORM PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
685
VALVE SELF-LEVELLING DEVICE,MANUAL GRAU, FOR USE WITH MERCEDES-BENZ PLATFORM
686
BOOT ,4 809255
687
LOOM TIE ,4 809255
689
PROTECTIVE CAP ,4 809255
694
REPAIR KIT CONTROL VALVE GRAU,K 186867
696
FITTING , Replaced By: A0009907470
696
T-FITTING SHIFT VALVE,CONNECTION: "11", 415 5 014668 416 5 000515 417 4 972023
710
TEST CONNECTION
710
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
710
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
710
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
715
ELBOW FITTING CAB FLOOR
715
FITTING OIL LINE CONNECTION
718
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
722
LOCK WASHER FITTING TO BRACKET
725
GUIDE SIGN AIR SPRING BELLOWS,LEFT AND RIGHT
730
BRACKET CONTROL VALVE, NOT FOR USE WITH MERCEDES-BENZ PLATFORM5 147259
730
BRACKET CONTROL VALVE,4 809255
732
SCREW , Replaced By: N308676012026
732
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
733
NUT SUPPORT TO SIDE MEMBER
735
GROMMET LINE PASSAGE AT SIDE MEMBER
999
SLEEVE LEAK LINE
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
HOLLOW SCREW LINE CONNECTION
999
HOLLOW SCREW FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "1"
999
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW HEATING CONNECTION
999
UNION NUT LINE CONNECTION
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
NUT , Replaced By: N910113014001
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
NUT BRACKET TO SIDE MEMBER
999
RIVET SPRING CLAMP TO SPRING LEAF
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
NUT STEERING WHEEL TO STEERING COLUMN
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
FITTING , Replaced By: A0029979572
999
GREASE NIPPLE PROTECTIVE TUBE
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING LINE CONNECTION
999
CONICAL SPRING WASHER ROD TO FRAME,4 653177
999
GLAND LINE CONNECTION
999
SCREW BEARING BRACKET TO FRAME
999
SCREW BRACKET TO SIDE MEMBER M 12X38
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: N304017008034
999
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
999
SCREW PLUG , Replaced By: N000908012009
999
NUT , Replaced By: N308675016001
999
SPRING WASHER CONTROL ARM TO SUPPORT
999
SPRING WASHER , Replaced By: N000137020205
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
WASHER , Replaced By: N000125015019
999
COTTER PIN6.3X63 MM
999
CONSOLE RIGHT SHOCK ABSORBER
999
PIN ,4 630534, Replaced By: N000960016247, +001A3853230453, +002N007349017002, +002N913004016005
999
ADHESIVE FOIL GUIDE SIGN
999
ROD LEVEL ADJUSTMENT VALVE CONTROL
999
SUPPORT AIR SPRING BELLOWS,RIGHT,5 010680
999
SPACER TUBE PISTON TO CONSOLE
999
SPRING LEAFNO.2,4 669737
999
SPRING LEAFNO.4
999
SPRING LEAF ,4 669736, Replaced By: A3833211912, +001A3833201394
999
SPRING LEAFNO.1,4 669737
999
SPRING LEAFNO.3
999
SPRING LEAF ,4 669736, Replaced By: A3833201394, +001A3833211912
999
CONSOLE , Replaced By: A6173200178
999
PLATE AIR SPRING BELLOWS,TOP
999
SPACER TUBE , Replaced By: A3179911240
999
GUIDE SIGN SUPPLY
999
SPACER TUBE SHOCK ABSORBER TO CROSS MEMBER AND TO BEARING
999
NUT TWO-WAY VALVE "12",4 4121264 691315
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
FITTING , Replaced By: A0029905971
999
SEAL RING5X2 MM, 415 5 014668 416 5 000515 417 4 972023
999
SEAL RING4 X 1.50 MM, 415 5 014668 416 5 000515 417 4 972023
999
FITTING RELAY VALVE,CONNECTION: "40",5 359430
999
FITTING (PARTS KIT),LINE RUPTURE
999
SHOCK ABSORBER , Replaced By: A3853260000
999
LOOM TIE LINE MOUNTING 280 MM
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
FITTING PRESSURE REGULATOR,CONNECTION: "40"
999
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
999
JOINT BEARING
999
PLUG
999
HANDLE
999
HANDLE ,5 292411
999
FITTING , Replaced By: A0019972572
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
BUSHING , Replaced By: N915062004000
999
BANJO UNION , Replaced By: N915052004006
999
HOLLOW SCREW , Replaced By: N915047008100
999
REPAIR KIT , Replaced By: A0005861833
999
REPAIR KIT , Replaced By: A0003500405
999
REPAIR KIT WITH BALL PIVOT TO 393 350 55 05, 658 350 00 05 ,
999
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS ON KNORR VALVE SV 1280-I/69324, Replaced By: A0003201067
999
REPAIR KIT CONTROL VALVE KNORR SV 3111-I/73100,K 186867
999
REPAIR KIT CENTRAL JOINT,WITH BALL PIVOT TO 393 350 54 05,LEMFOERDER
999
OPERATING PLATE
999
BOOTTO 381 320 07 89,617 320 00 89
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
VALVE , Replaced By: A0004290782
999
JOINT (CENTRAL JOINT) TO 658 350 00 05,EHRENREICH
999
JOINT (CENTRAL JOINT) TO 393 350 54 05,LEMFOERDER
999
REPAIR KIT CENTRAL JOINT,WITH BALL PIVOT TO 393 350 55 05, EHRENREICH
999
JOINT (CENTRAL JOINT) TO 393 350 55 05,EHRENREICH
999
REPAIR KIT. JOINT WITH BALL PIVOT
999
BOOT , Replaced By: A0004631396
999
PROTECTIVE CAP , Replaced By: A0003290092
999
PROTECTIVE CAPTO 000 329 04 25,000 329 08 25,K 186867
999
BOOT ,5 292411
999
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 957391, Replaced By: A0003280292
999
SPACER RINGTO 002 323 86 00,003 323 03 00,
999
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
999
BUSHING , Replaced By: A0003233150
999
RUBBER BUFFER , Replaced By: A0003232885
999
REPAIR KIT CONTROL VALVE KNORR SV 3111-I/83153,K 186867
999
VALVETO 000 329 04 25,000 329 08 25,K 186867
