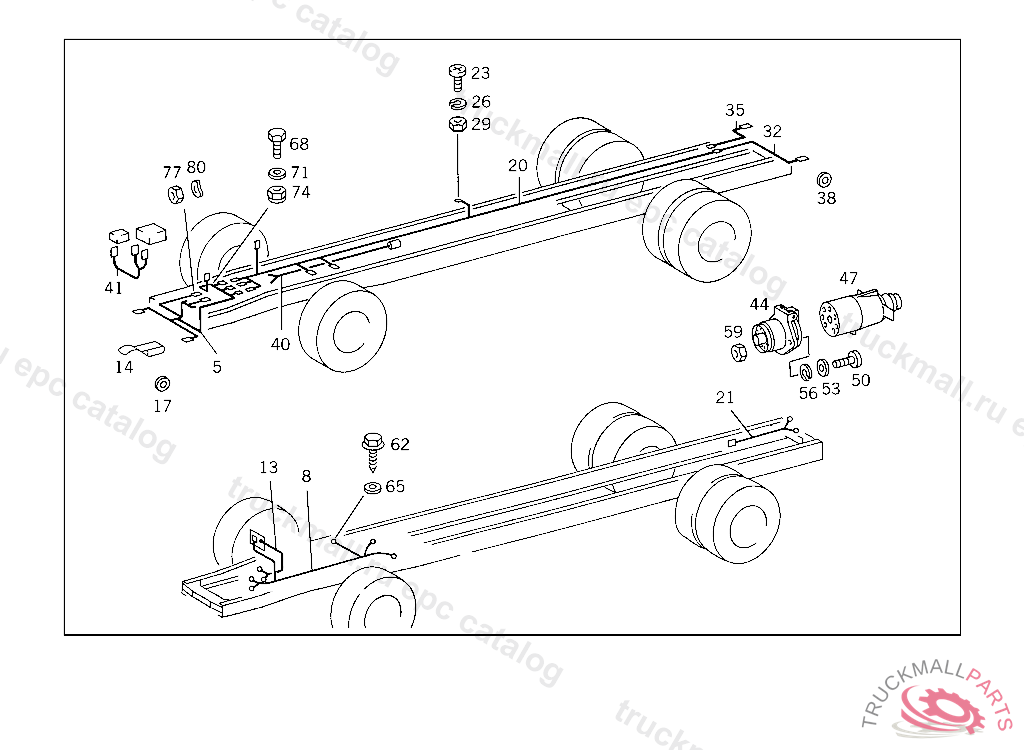

Поз.
Артикул
Описание
5
CABLE HARNESS MAIN CABLE HARNESS,D 099686
5
CABLE HARNESS MAIN CABLE HARNESS,D 099687
8
CABLE HARNESS ENGINE,1B 915841
8
CABLE HARNESS ENGINE,A 090648
13
CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
13
CABLE HARNESS FROM MEASURING PLATE TO JUNCTION BOX
32
CABLE HARNESS FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP
35
CABLE HARNESS FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP
38
WASHER BRACKET TO LEFT SIDE MEMBER
44
PLUG SOCKET TRAILER PLUG SOCKET
44
PLUG SOCKET FOR OPERATION WITH TRAILER
47
PLUG TRAILER,7-POLE 12 V
47
PLUG
50
SCREW PLUG SOCKET TO FRAME
50
SCREW TRAILER PLUG SOCKET TO BRACKET
53
WASHER , Replaced By: N000433005304
56
LOCK WASHER T-FITTING TO BRACKET
59
NUT
62
SCREW GROUND CONNECTION TO WINDOW SILL,B 959934
65
WASHER PLUG SOCKET TO BRACKET
