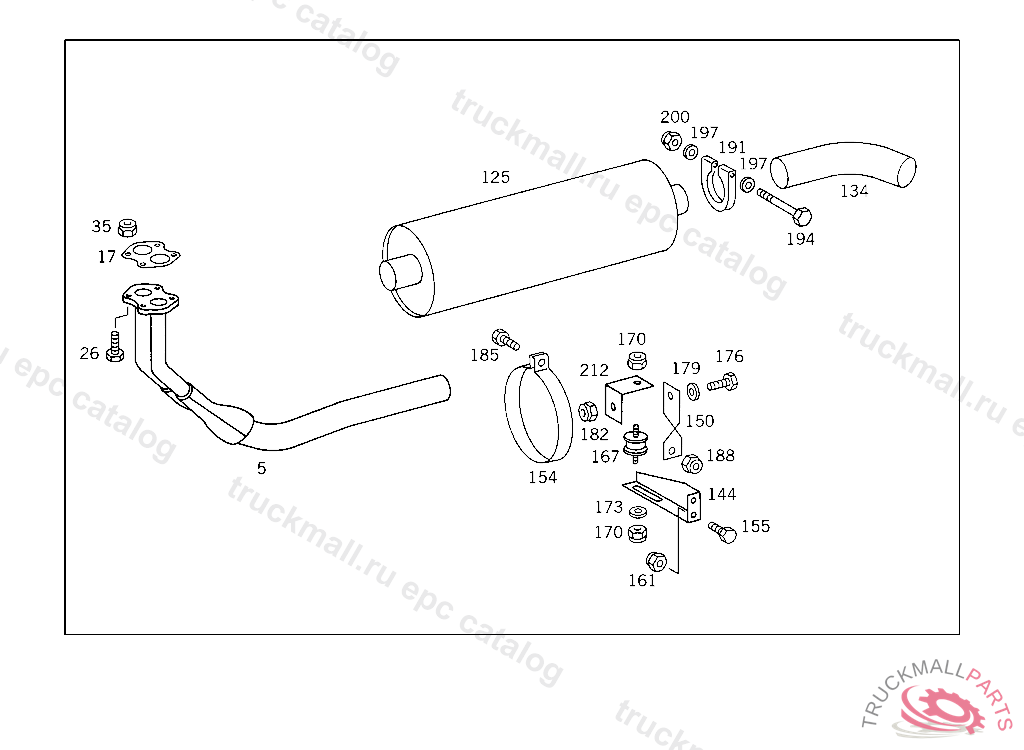

Поз.
Артикул
Описание
134
REAR EXHAUST PIPE (TAIL PIPE)
144
SUPPORT EXHAUST MUFFLER
150
SUPPORT EXHAUST MUFFLER
154
CLAMP EXHAUST MUFFLER TO BRACKET
155
SCREW , Replaced By: N308676014012
155
SCREW , Replaced By: N308676014008
161
NUT , Replaced By: N910113014000
167
RUBBER BUFFER EXHAUST MUFFLER
170
NUT BRACKET TO RETARDER
173
WASHER GROUND CABLE
176
SCREW , Replaced By: N304017010002
176
SCREW HAND PUMP TO BRACKET
179
WASHER GROUND CABLE
182
NUT , Replaced By: N910113010000
185
SCREW CROSS MEMBER TO SIDE MEMBERS
188
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
191
CLAMP REAR EXHAUST PIPE TO MUFFLER,B 884220
191
CLAMP FRONT EXHAUST PIPE TO MUFFLER,B 884220
194
SCREW FRONT EXHAUST PIPE TO MUFFLER M 10X130
194
SCREW REAR EXHAUST PIPE TO MUFFLER M 10X140,B 884220
197
WASHER GROUND CABLE
200
NUT , Replaced By: N910113010004
212
BRACKET EXHAUST MUFFLER
