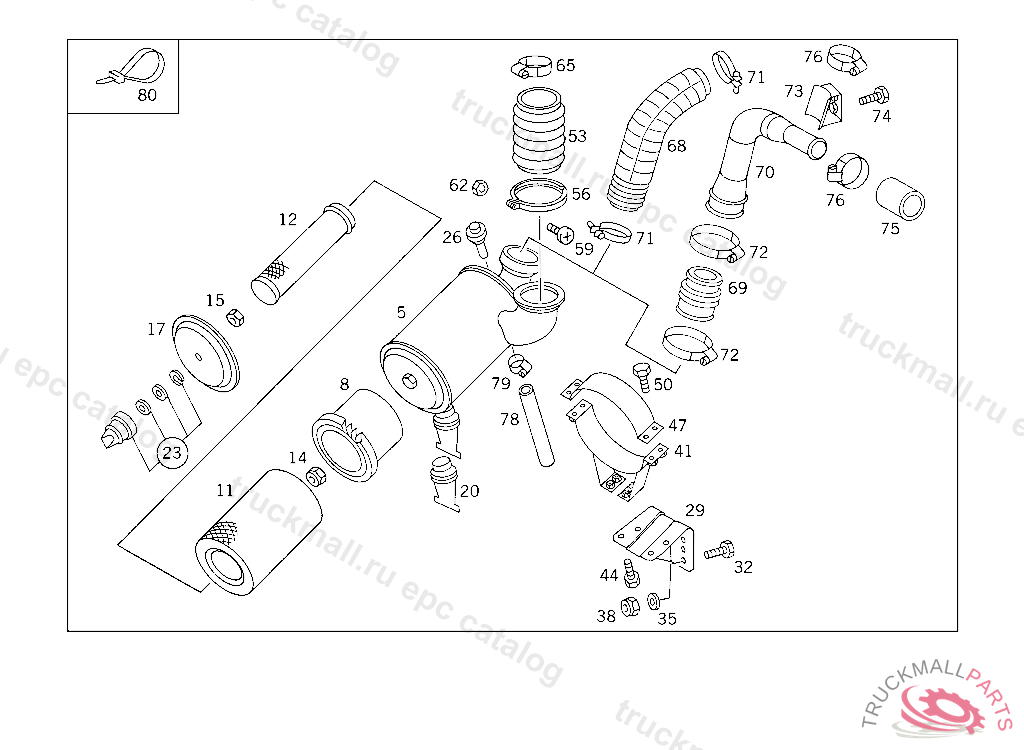

Поз.
Артикул
Описание
5
AIR CLEANERPICLON FRAM
5
AIR CLEANER
5
AIR CLEANERPICLON MANN
11
FILTER ELEMENTTO 394 094 70 01
26
SWITCH INCLUDED IN RANGE OF DELIVERY OF: TO 376 090 98 04
26
SWITCH
29
BRACKET AIR CLEANER,FRONT RIGHT
32
SCREW BRACKET TO SIDE MEMBER
35
WASHER
38
NUT BRACKET TO SIDE MEMBER
41
STRAP AIR CLEANER
44
SCREW LINES TO BRACKET
47
STRAP AIR CLEANER
50
SCREW LINES TO BRACKET
53
BOOT AIR CLEANER
53
BOOT AIR CLEANER
56
CLAMP BELLOWS TO AIR CLEANER
59
SCREW CONTROL UNIT TO BRACKET M 4X12
62
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
65
CLAMP , Replaced By: N000000000678
65
LOOM TIE
68
HOSE FROM AIR CLEANER TO ENGINE INTAKE PIPE
68
HOSE AIR INTAKE
68
HOSE FROM AIR CLEANER TO ENGINE INTAKE PIPE
69
HOSE , Replaced By: A3845287882
71
CLAMP , Replaced By: N000000000678
71
LOOM TIE
78
HOSE 18-MM-DIA. LINE
78
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
79
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
79
CLAMP ,B 862667
80
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
