Mercedes A4030180106 - КРЫШКА

OM 366 LA INDONESIA 386.983

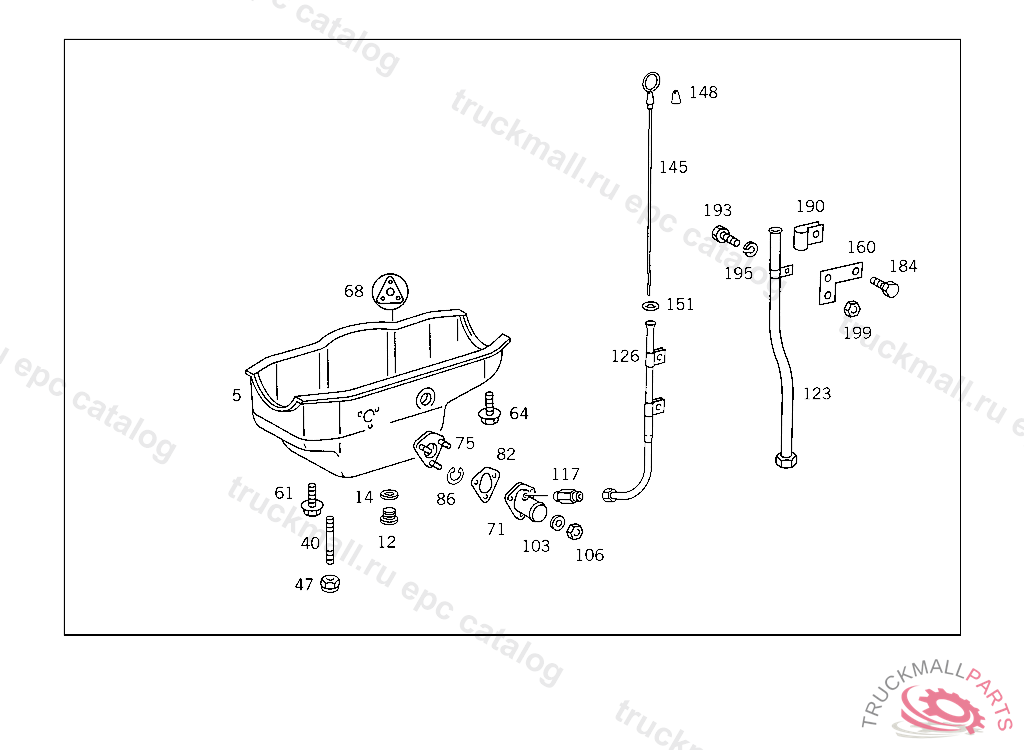

01 ENGINE HOUSING - 060 OIL PAN & OIL LEVEL DISPLAY

Поз.
Артикул
Описание
5
A3520107413
OIL PAN
12
A4039970230
SCREW PLUG
14
N007603026305
SEAL RING PREHEATER TO OIL PAN
40
N000835008008
STUD , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
47
N914440008000
NUT HEAT PROTECTION PLATE ON EXHAUST PIPE
61
A0039905801
SCREW TRAILER CONTROL VALVE TO BRACKET,4 940459
64
A0039906001
SCREW OIL PAN TO CYLINDER CRANKCASE
68
A3660100580
GASKET KIT OIL PAN
71
A3520109764
OIL FILLER NECK
75
A3520102576
FLANGE
82
A3660180280
GASKET PIPE SOCKET TO OIL PAN
86
N006799007002
LOCK PLATE OIL FILLER NECK TO OIL PAN
103
N007349008000
WASHER BRACKET TO INTAKE MANIFOLD
106
N000934008000
NUT LEVER TO SHIFTING SHAFT
117
A4039970972
FITTING GUIDE TUBE TO OIL PAN
123
A4030103166
GUIDE TUBE OIL DIPSTICK
145
A4030103372
OIL DIPSTICK
148
A4030180106
CAP
151
A0029974048
SEAL RING
999
N007603014112
SEAL RING GUIDE TUBE TO OIL FILLER NECK
