Поз.
Артикул
Описание

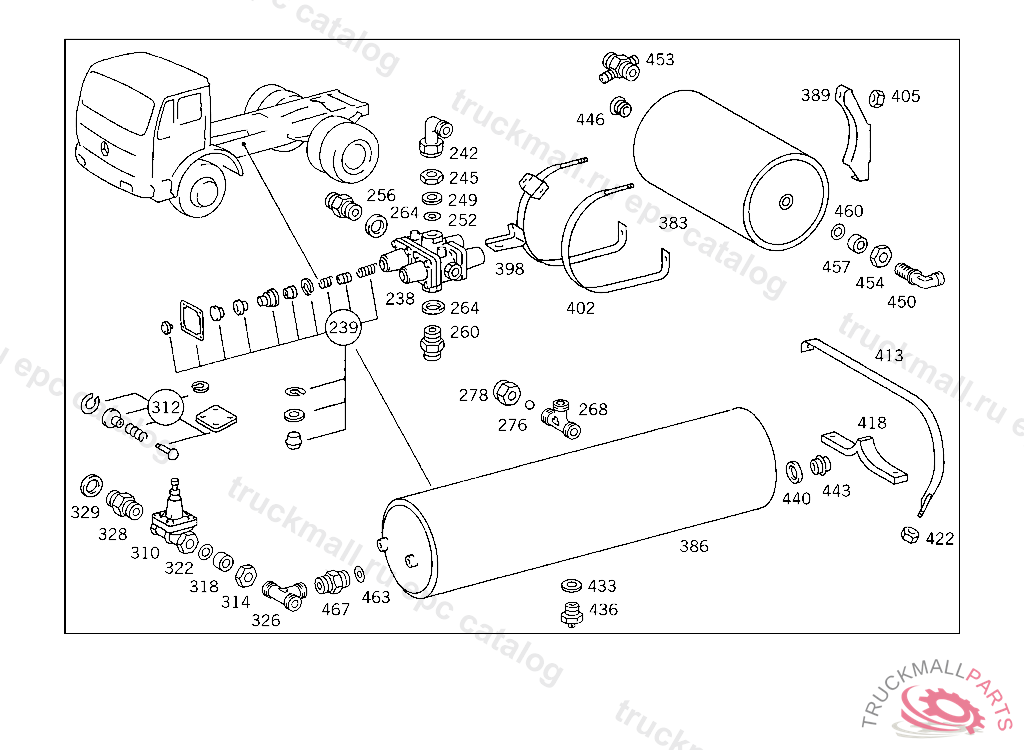

238
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) BOSCH
238
VALVE FOUR-CIRCUIT PROTECTIVE VALVE BOSCH, MODELS 002,006 UP TO CHASSIS 4 424733,MODELS 033,034,134 UP TO CHASSIS 4 611513 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
239
REPAIR KITTO 001 431 30 06
242
ELBOW FITTING , Replaced By: A0029901271
242
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "1", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
245
NUT CHECK VALVE TO AIR RESERVOIR
249
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
252
O-RING CHECK VALVE TO AIR RESERVOIR
256
FITTING DELIVERY LINE TO PUMP
256
FITTING DELIVERY LINE TO PUMP
256
FITTING BRAKE LINE COUPLING TO BRACKET
260
FITTING , Replaced By: A0029979572
260
FITTING RELAY VALVE,CONNECTION: "40",5 359430
264
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
264
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
268
FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
276
PLUG FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
278
LOCK NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
310
VALVE (CHECK VALVE),4 281211
312
REPAIR KIT CHECK VALVE TO 002 429 43 44
314
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
318
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
322
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
326
FITTING , Replaced By: A0009907470
326
T-FITTING SHIFT VALVE,CONNECTION: "11", 415 5 014668 416 5 000515 417 4 972023
328
FITTING DELIVERY LINE TO PUMP
329
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
329
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
383
RESERVOIR , Replaced By: A0004324301
383
RESERVOIR , Replaced By: A0034321201
383
RESERVOIR20L,246 MM,12.5 BAR
386
RESERVOIR SERVICE BRAKE 30 L, Replaced By: A0034321801, +001A6554320073
386
RESERVOIR30L,246 MM,12.5 BAR
389
BRACKET AIR RESERVOIR TO FRAME
398
STRAP , 974676 MODELS 002,006 UP TO CHASSIS 4 424733,MODELS 033,034,134 UP TO CHASSIS 4 611513
402
STRAP AIR RESERVOIR TO BRACKET
405
NUT BRACKET TO SUPPORT AND TO END PIECE
418
BASE AIR RESERVOIR,STRAP, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
422
NUT BRACKET TO SUPPORT AND TO END PIECE
433
SEAL RING LINE CONNECTION
436
VALVE DRAIN, Replaced By: A0004322107
440
SEAL RING LINE CONNECTION
446
SCREW PLUG , Replaced By: N000908022011
446
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
450
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
450
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
450
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
453
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
453
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
453
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
454
NUT CHECK VALVE TO AIR RESERVOIR
457
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
460
O-RING CHECK VALVE TO AIR RESERVOIR
463
SEAL RING LINE CONNECTION
467
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
WASHER A 8,4 DIN 9021. WASHER MOUNTING TO SUBSTRUCTURE
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
LOCK NUT
999
SEAL RING LINE CONNECTION
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING CONTROL VALVE,5 093991
999
WASHER
999
WASHER BRACKET TO INTAKE MANIFOLD
999
CLAMPING SLEEVE , IN CASE OF STEEL AXLE
999
FITTING , Replaced By: A0009909970
999
FITTING , Replaced By: A0019902771
999
BULKHEAD FITTING THROUGH SIDE MEMBER, BUTT CONNECTION
999
CONNECTION FITTING ,880809
999
UNION NUT , Replaced By: N915017012100
999
GLAND , Replaced By: A0019901967
999
CLAMP , Replaced By: A3609950210
999
CLAMP12 MM
999
SCREW ACCELERATOR PEDAL TO CAB M 6X25
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW , Replaced By: N308676012026
999
SCREW , Replaced By: N308676012012
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N304017008028
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW PRESSURE REGULATOR TO BRACKET
999
SCREW , Replaced By: N304017006027
999
WASHER STRAP TO SUPPORT
999
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
COTTER PIN WHEEL CYLINDER TO SLACK ADJUSTER,4 637963
999
COTTER PINTO 345 460 94 05
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
BRACKET FUEL LINES TO TRANSMISSION
999
STRAP SERVICE BRAKE AIR RESERVOIR
999
BRACKET , NOT USED
999
BREATHER , Replaced By: A3933280065
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BRACKET LINE MOUNTING
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,4 367061
999
PLUG TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: "21,22", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
ADHESIVE FOIL GUIDE SIGN
999
BASE , Replaced By: A3854320218
999
BRACKET ,929798
999
SHIM VALVE TO CAB, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
SUPPORT ,4 278267
999
SUPPORT ,4 278267
999
STRAP AIR RESERVOIR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
STRAP SERVICE BRAKE AIR RESERVOIR, Replaced By: A6204300040
999
SUPPORT ,4 278268
999
SUPPORT AIR RESERVOIR,BRAKE CIRCUITS I & II
999
STRAP ,974675
999
BRACKET PLASTIC LINES TO FRAME
999
BRACKET HIGH PRESSURE HOSE TO CAB
999
BRACKET , Replaced By: A3914290140
999
BRACKET , Replaced By: A3852670040
999
BRACKET PRESSURE GAUGE LINE TO BRACKET,4 895864
999
LINE , Replaced By: A0004291401
999
LINE FROM FRONT BRAKE HOSE TO LEFT BRAKE CYLINDER,929798
999
LINE FROM FRONT BRAKE HOSE TO RIGHT BRAKE CYLINDER,929798
999
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
999
BRACKET ,4 416298
999
BRACKET SENSOR CABLE TO FRONT AXLE
999
CLAMP , Replaced By: A6739950001
999
CLAMP LINE MOUNTING
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP LINE MOUNTING
999
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
999
ROD , Replaced By: N900331008261
999
LEVER , Replaced By: A3854310239
999
BRACKET OIL LINE MOUNTING
999
BRACKET , Replaced By: A3464296040
999
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
PROTECTIVE CAP , Replaced By: A0004210887
999
VALVE CLUTCH SLAVE CYLINDER
999
HOSE LEVER TO SUPPORT
999
HOSE , Replaced By: A0009872827
999
SEAL RING , Replaced By: A0049970248
999
SEAL RINGTO 001 431 43 05
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGKNORR
999
SEAL RINGTO 001 431 68 06,19.3X2.4 MM,GRAU37001, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
WHEEL BRAKE CYLINDER SLAVE CYLINDER SCHAEFER,TO001 431 94 05,002 431 05 05, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
WHEEL BRAKE CYLINDER , Replaced By: A0064204918
999
SEAL RINGTO 000 434 21 01
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
SEAL RING 25.3X2.4 MM,TO 001 431 68 06, 002 431 02 06
999
SEAL RINGTO 000 429 28 95,GRAU
999
SEAL RING22.3X2.4 MM,GRAU
999
HOSE CLAMP LINE MOUNTING
999
SEAL RINGTO 001 431 43 05,002 431 05 05
999
FITTING , Replaced By: A0029906171
999
SEAL RINGBOSCH
999
WHEEL BRAKE CYLINDER , Replaced By: A0064200518, +002N913004016004
999
GROMMET LINE THRU FRAME,4 189545
999
GASKET KIT SEAL RING TO 001 431 58 06,BOSCH
999
REPAIR KITTO 000 430 66 81,000 430 67 81, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
REPAIR KIT
999
VALVE (RELAY VALVE) KNORR
999
VALVE (RELAY VALVE) BOSCH
999
FITTING 3/2-WAY VALVE
999
FITTING TWO-CIRCUIT BRAKE VALVE,CONNECTION: "21", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
999
FITTING ,4 261891
999
FITTING ,4 412020
999
FITTING LINE CONNECTION TO AIR RESERVOIR,4 314180
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 411810 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004202755
999
LOOM TIE , Replaced By: N916018011000
999
FITTING (PARTS KIT),LINE RUPTURE
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
REPAIR KIT , Replaced By: A0034303881
999
REPAIR KITGRAU,5 148812
999
REPAIR KIT , Replaced By: A0004301109
999
REPAIR KIT , Replaced By: A0004201071
999
REPAIR KIT SLAVE CYLINDER TO 006 420 15 18
999
REPAIR KIT 3/2-WAY VALVE BOSCH
999
REPAIR KIT , Replaced By: A0024301560
999
REPAIR KITTO 001 431 98 06
999
REPAIR KIT SEAL RING TO 001 431 15 06,BOSCH
999
REPAIR KIT BOOT TO 001 431 15 06,BOSCH
999
REPAIR KIT , Replaced By: A0025865242
