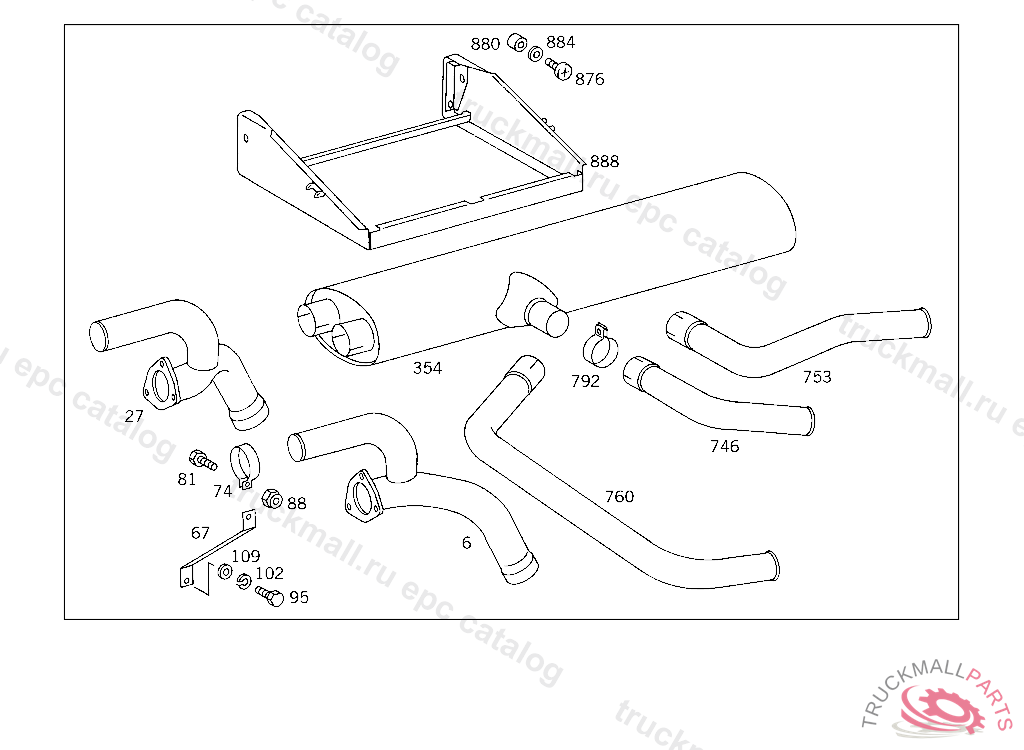

Поз.
Артикул
Описание
6
CONNECTOR LEFT FRONT
27
CONNECTOR RIGHT FRONT
27
CONNECTOR RIGHT FRONT
67
BRACKET CONNECTOR TO ENGINE
67
BRACKET CONNECTOR TO ENGINE
74
CLAMP REAR EXHAUST PIPE TO BRACKET
81
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
81
SCREW , Replaced By: N304017008027
88
NUT STRAP TO BRACKET
95
SCREW BRACKET TO ENGINE
95
SCREW , Replaced By: N000933016082
102
LOCK WASHERROCKINGER TYP 59 G140,59 G150
109
WASHER BRACKET TO FRAME
109
WASHER , Replaced By: N000125017016
354
EXHAUST MUFFLER FRONT
354
EXHAUST MUFFLER FRONT
354
EXHAUST MUFFLER FRONT
354
EXHAUST MUFFLER FRONT
746
REAR EXHAUST PIPE
753
REAR EXHAUST PIPE
760
REAR EXHAUST PIPE
792
CLAMP REAR EXHAUST PIPE TO BRACKET
876
SCREW OIL TANK TO BRACKET
876
SCREW OIL TANK TO BRACKET
880
SPACER TUBE
880
SPACER TUBE
880
SPACER TUBE , Replaced By: A4082910153
884
WASHER OIL LINE TO FRAME,5 129244
888
BATTERY SUPPORT
999
CONNECTOR LEFT FRONT
999
CONNECTOR RIGHT FRONT
999
CLAMP FRONT EXHAUST PIPE TO BRACKET,5 129244
999
SUPPORT FRONT EXHAUST MUFFLER,5 193594
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
STRAP EXHAUST MUFFLER TO BRACKET
999
EXHAUST MUFFLER REAR
999
EXHAUST MUFFLER REAR
999
CONNECTOR LEFT
999
CONNECTOR LEFT FRONT,5 129244
999
CONNECTOR FRONT EXHAUST PIPE FRONT PART TO REAR PART,4 836062
999
CONNECTOR RIGHT,5 129244
999
CONNECTOR LEFT,5 129244
999
CONNECTOR RIGHT FRONT,5 129244
999
CONNECTOR LEFT FRONT,5 129244
999
BRACKET LEFT EXHAUST PIPE,4 836062
999
BRACKET RIGHT EXHAUST PIPE,4 836062
999
BRACKET OIL LINE MOUNTING,5 129244
999
EXHAUST MUFFLER LEFT AND RIGHT
999
STRAP , Replaced By: A6554900942
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
CONNECTOR RIGHT FRONT,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET LEFT EXHAUST PIPE,5 129244
999
BRACKET RIGHT EXHAUST PIPE,5 129244
999
STRAP PARTICLE FILTER
