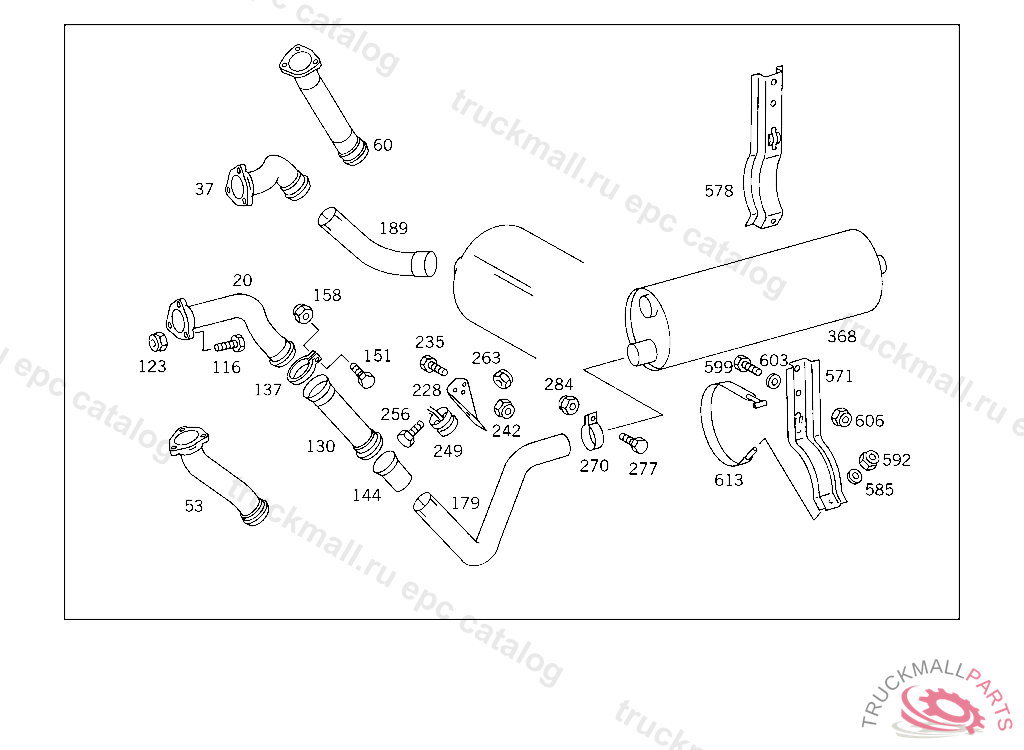

Поз.
Артикул
Описание
20
CONNECTOR LEFT
20
CONNECTOR LEFT
20
CONNECTOR LEFT FRONT
37
CONNECTOR RIGHT FRONT
53
CONNECTOR LEFT BOTTOM, AND RIGHT TOP
53
CONNECTOR LEFT,5 129245
60
CONNECTOR RIGHT FRONT
60
CONNECTOR RIGHT,5 129245
116
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
123
NUT CONNECTOR TO EXHAUST MANIFOLD
130
FLEXIBLE METAL TUBE CONNECTOR
130
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE FRONT PART TO REAR PART
137
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
137
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
144
COLLAR FRONT EXHAUST PIPE FRONT PART TO REAR PART,5 129244
144
COLLAR , Replaced By: A6524920008
144
COLLAR COLLAR TO EXHAUST PIPE
151
SCREW BRACKET TO SIDE MEMBER
151
SCREW , Replaced By: N304017008040
158
NUT , Replaced By: N913004008001
158
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
179
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
179
EXHAUST PIPE FRONT,REAR LEFT PART,4 8360635 129244
179
EXHAUST PIPE FRONT,REAR LEFT PART
179
EXHAUST PIPE FRONT,REAR LEFT PART
179
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
179
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
189
EXHAUST PIPE FRONT,REAR RIGHT PART,4 8360635 129244
228
BRACKET LEFT EXHAUST PIPE
228
BRACKET RIGHT EXHAUST PIPE
235
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
235
SCREW , Replaced By: N304017010002
235
SCREW , Replaced By: N308676012012
235
SCREW REAR EXHAUST PIPE TO MUFFLER
235
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
235
SCREW BRACKET TO SIDE MEMBER
242
NUT BRACKET TO SIDE MEMBER
242
NUT SUPPORT TO SIDE MEMBER
242
NUT STRAP TO BRACKET
242
NUT , Replaced By: N910113010000
242
NUT , Replaced By: N910113014001
249
CLAMP AT CROSS MEMBER
249
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
256
SCREW BRACKET TO SIDE MEMBER
256
SCREW , Replaced By: N304017010002
263
NUT , Replaced By: N910113010000
263
NUT STRAP TO BRACKET
270
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
277
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
277
SCREW , Replaced By: N304017008027
284
NUT , Replaced By: N913004008001
284
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
368
EXHAUST MUFFLER LEFT AND RIGHT,4 913283
368
EXHAUST MUFFLER
571
BRACKET EXHAUST MUFFLER SUSPENSION
578
BRACKET EXHAUST MUFFLER SUSPENSION
578
BRACKET EXHAUST MUFFLER SUSPENSION
585
SPHERICAL WASHER STRAP TO BRACKET
592
NUT , Replaced By: N910113010000
592
NUT STRAP TO BRACKET
599
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
603
WASHER , Replaced By: N000125015019
603
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
606
NUT , Replaced By: N910113014001
606
NUT BRACKET TO SIDE MEMBER
613
STRAP PARTICLE FILTER
613
STRAP , Replaced By: A6554900942
613
STRAP , Replaced By: A6554900942
613
STRAP PARTICLE FILTER
999
CONNECTOR LEFT FRONT
999
CONNECTOR RIGHT FRONT
999
CLAMP FRONT EXHAUST PIPE TO BRACKET,5 129244
999
SUPPORT FRONT EXHAUST MUFFLER,5 193594
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
STRAP EXHAUST MUFFLER TO BRACKET
999
EXHAUST MUFFLER REAR
999
EXHAUST MUFFLER REAR
999
CONNECTOR LEFT
999
CONNECTOR LEFT FRONT,5 129244
999
CONNECTOR FRONT EXHAUST PIPE FRONT PART TO REAR PART,4 836062
999
CONNECTOR RIGHT,5 129244
999
CONNECTOR LEFT,5 129244
999
CONNECTOR RIGHT FRONT,5 129244
999
CONNECTOR LEFT FRONT,5 129244
999
BRACKET LEFT EXHAUST PIPE,4 836062
999
BRACKET RIGHT EXHAUST PIPE,4 836062
999
BRACKET OIL LINE MOUNTING,5 129244
999
EXHAUST MUFFLER LEFT AND RIGHT
999
STRAP , Replaced By: A6554900942
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
CONNECTOR RIGHT FRONT,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET LEFT EXHAUST PIPE,5 129244
999
BRACKET RIGHT EXHAUST PIPE,5 129244
