Поз.
Артикул
Описание

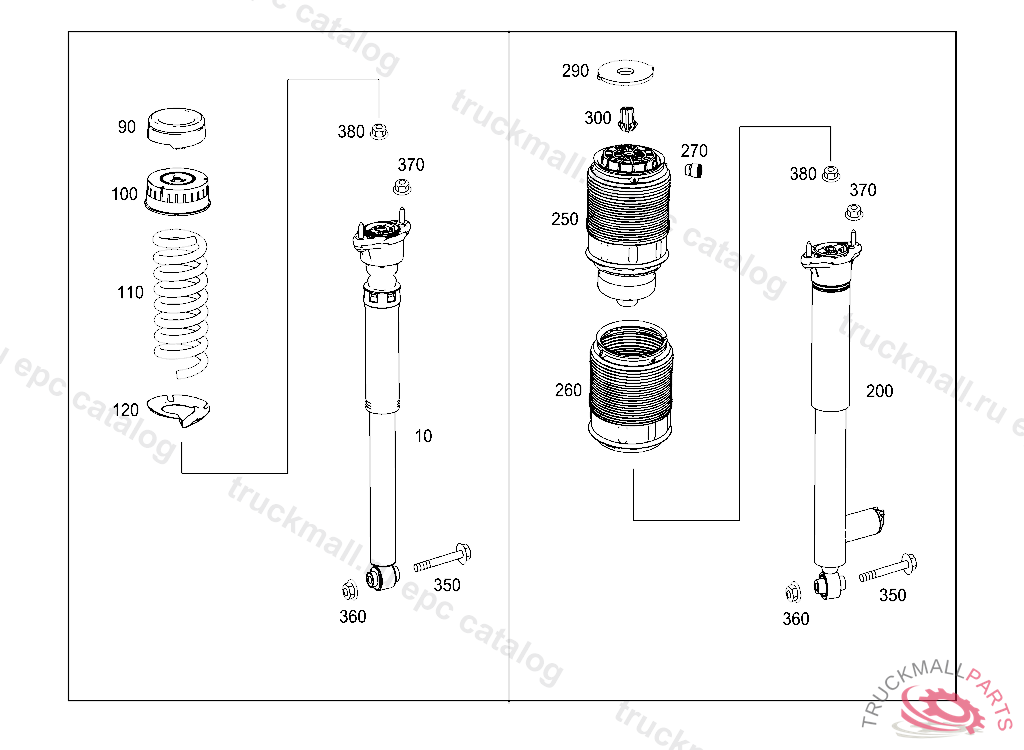

10
SHOCK ABSORBER REAR LEFT AND RIGHT
10
SHOCK ABSORBER REAR LEFT AND RIGHT
10
SHOCK ABSORBER REAR LEFT AND RIGHT
90
SHIM TOP, STUD COUNT: 4 ( 17MM )
90
SHIM TOP, STUD COUNT: 1 ( 5MM )
90
SHIM TOP, STUD COUNT: 2 ( 9MM )
90
SHIM TOP, STUD COUNT: 3 ( 13MM )
100
SPRING SEAT TOP
110
REAR SPRING COLOR DESIGNATION: 1 X RED/1 X GREEN, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
110
REAR SPRING COLOR MARKING: 1 X VIOLET, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
110
REAR SPRING COLOR DESIGNATION: 1 X RED/2 X GREEN, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
110
HELICAL SPRING COLOR CODING: 2 X RED/1 X GREEN, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
120
SHIM BOTTOM
200
SHOCK ABSORBER REAR RIGHT
200
SHOCK ABSORBER REAR LEFT
250
AIR SPRING REAR RIGHT, IMPORTANT: NOTE TIPS, Replaced By: A2123204025
250
AIR SPRING REAR LEFT, IMPORTANT: NOTE TIPS, Replaced By: A2123203925
250
PNEUMATIC SPRING REAR RIGHT, IMPORTANT: NOTE TIPS UP TO CHASSIS NUMBER A041409
250
PNEUMATIC SPRING REAR LEFT
260
BOOT AIR SPRING
270
CONNECTOR DELIVERY LINE
290
SHIM TOP
300
CLIP RETAINER AIR SPRING TO BODY
350
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
360
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
370
NUT SHOCK ABSORBER TO FRAME
380
NUT REINFORCEMENT TO BRACKET
