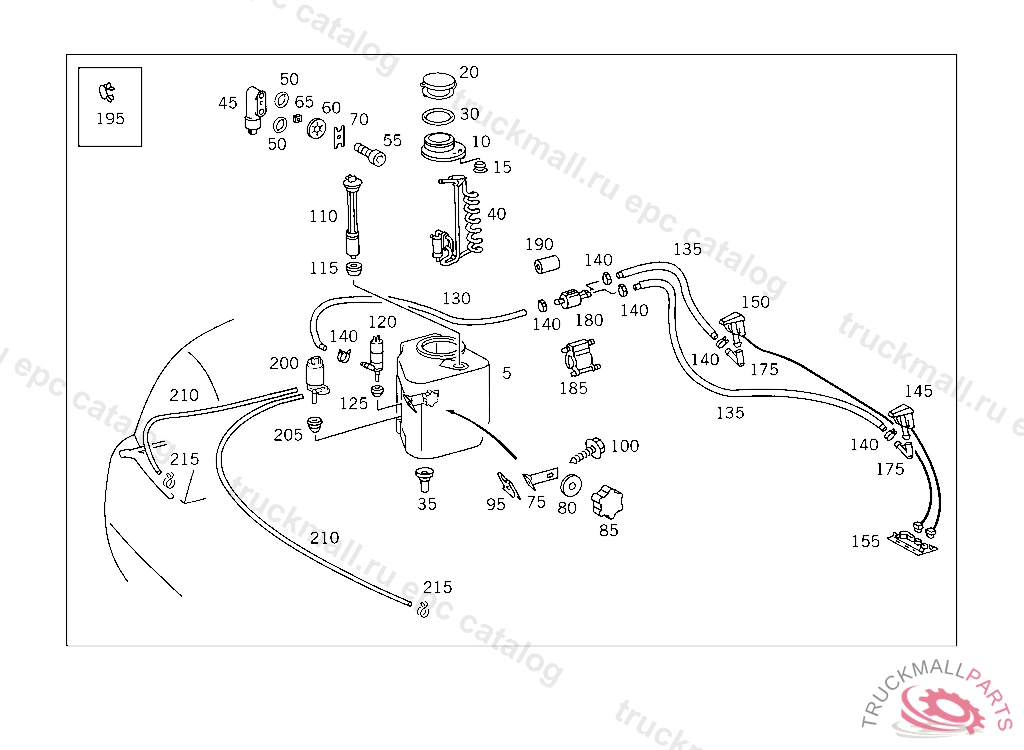

Поз.
Артикул
Описание
5
RESERVOIR WINDSHIELD WASHER HEATED
10
COVERING WINDSHIELD WASHER HEATED
15
GROMMET ,F 084208
20
FILLER CAP , Replaced By: A1248690172
30
SEAL
35
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
40
HEATER UNIT HEATED WINDSHIELD WASHER RESERVOIR,F 026938
45
VALVE , F 184896
50
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
55
SCREW , F 184896
60
TOOTHED WASHER , F 184896
65
NUT , F 184896
70
CONNECTION , F 184896
110
SWITCH WINDSHIELD WASHER WATER LEVEL, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
110
SENDER UNIT WINDSHIELD WASHER WATER LEVEL, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
115
GROMMET
120
PUMP PANE WASHER, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
120
PUMP PANE WASHER, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
125
GROMMET CENTRIFUGAL PUMP CONNECTION
130
HOSE FROM PUMP TO CHECK VALVE,F 060629
135
HOSE FROM CHECK VALVE TO LEFT NOZZLE,F 060629
140
LOOM TIE
140
CLAMP
140
CLAMP
145
NOZZLE ENGINE HOOD, LEFT
150
NOZZLE ENGINE HOOD,RIGHT
155
PLATE ,F 084208
175
CONNECTOR AT LEFT AND RIGHT NOZZLES
180
CHECK VALVE (CHECK VALVE),WINDSHIELD WASHER, 000 159697 003 078977 007 064070 083 004734 086 003596 093 004546 102,103 149491 105 164442 183 008116 190 011709
185
HEATING ELEMENT ,F 084208
190
HOSE
195
CLAMP
195
CLAMP BOWDEN CABLE TO CAB
195
CLAMP , Replaced By: A0009955244
195
CLAMP , Replaced By: A0009955644
200
PUMP PANE WASHER
205
GROMMET CENTRIFUGAL PUMP CONNECTION
205
EXPANSION PLUG TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
210
HOSE FROM RIGHT NOZZLE TO CHECK VALVE 900 MM
215
CLAMP
999
SEAL RING ,F 084208
999
FILLER CAP PANE WASHER, F 194663
999
HOLDER
999
COVERING WINDSHIELD WASHER RESERVOIR
