Поз.
Артикул
Описание

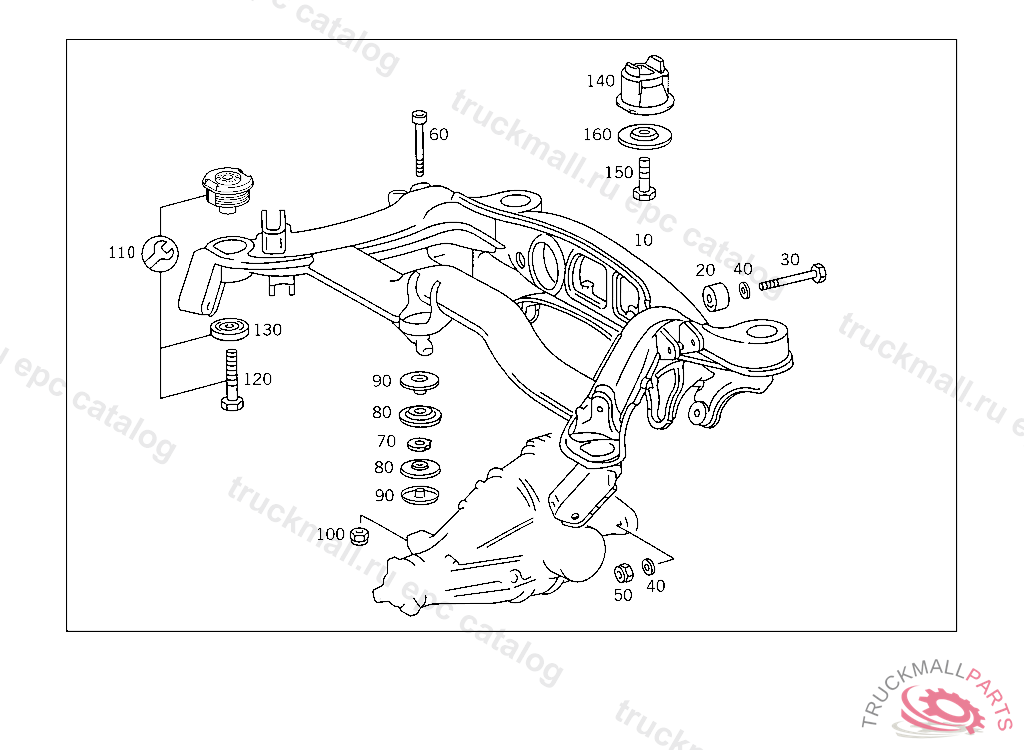

10
REAR SUBFRAME
20
RUBBER MOUNTING AXLE HOUSING TO REAR SUBFRAME,REAR
30
SCREW CONSOLE TO CROSS MEMBER
40
WASHER , Replaced By: N000125013008
50
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
60
SCREW AXLE HOUSING TO REAR SUBFRAME,FRONT
70
SPACER WASHER AS REQUIRED 3.0 MM
70
SPACER WASHER AS REQUIRED 4.0 MM
70
SPACER WASHER AS REQUIRED 2.0 MM
70
SPACER WASHER NUMBER OF NOTCHES: 2 X 1 (1 MM ), TO BE USED ON REAR SUBFRAME LESS STAMPED-ON CHARACTERISTIC NUMBER 0F 8MM
80
RUBBER MOUNTING AXLE HOUSING TO REAR SUBFRAME,FRONT
90
RETAINER AXLE HOUSING TO REAR SUBFRAME,FRONT
100
NUT CROSS MEMBER TO SIDE MEMBERS
110
HOUSING REAR SUBFRAME TO FRAME FLOOR UNIT, FRONT
110
REPAIR KIT , Replaced By: A1243500441
120
SCREW REAR SUBFRAME TO FRAME FLOOR UNIT, FRONT, NOT FOR AUSTRALIA
130
STOP FRONT
130
STOP FRONT
140
RUBBER MOUNTING REAR SUBFRAME TO FRAME FLOOR UNIT,REAR
150
SCREW REAR SUBFRAME TO FRAME FLOOR UNIT, FRONT, NOT FOR AUSTRALIA
160
STOP REAR
