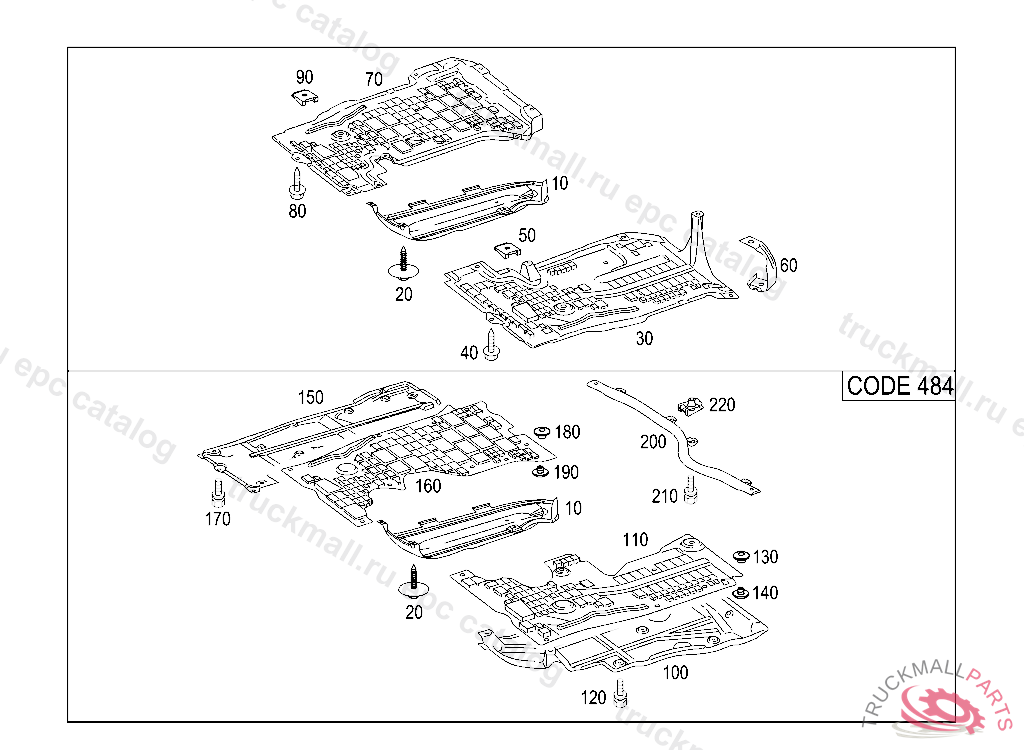

Поз.
Артикул
Описание
10
PANELING CENTRAL
20
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
30
ENCAPSULATION LEFT, Replaced By: A1695201123
30
ANTINOISE CAPSULE LEFT
40
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
50
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
60
BRACKET TO PANELING LEFT REAR
70
ANTINOISE CAPSULE RIGHT
70
ENCAPSULATION RIGHT, Replaced By: A1695201023
70
ENCAPSULATION RIGHT, Replaced By: A1695201223
80
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
90
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
100
PROTECTIVE PLATE LEFT
110
DAMPING STRIP LEFT
120
SCREW-AND-WASHER ASSEMBLY PANELING MOUNTING, RIGHT M8X30
130
FASTENER BUTTON LOWER PART
140
FASTENER BUTTON UPPER PART
150
PROTECTIVE PLATE RIGHT
160
DAMPING STRIP RIGHT
170
SCREW-AND-WASHER ASSEMBLY PANELING MOUNTING, RIGHT M8X30
180
FASTENER BUTTON LOWER PART
190
FASTENER BUTTON UPPER PART
200
SUPPORT NOISE ENCAPS. MOUNTING CENTER LEFT AND RIGHT TO FRAME-TYPE INTEGRALE CARRIER
210
SCREW-AND-WASHER ASSEMBLY PANELING MOUNTING, RIGHT M8X30
220
SPRING-THREAD NUT PROTECTIVE PLATE
