Поз.
Артикул
Описание

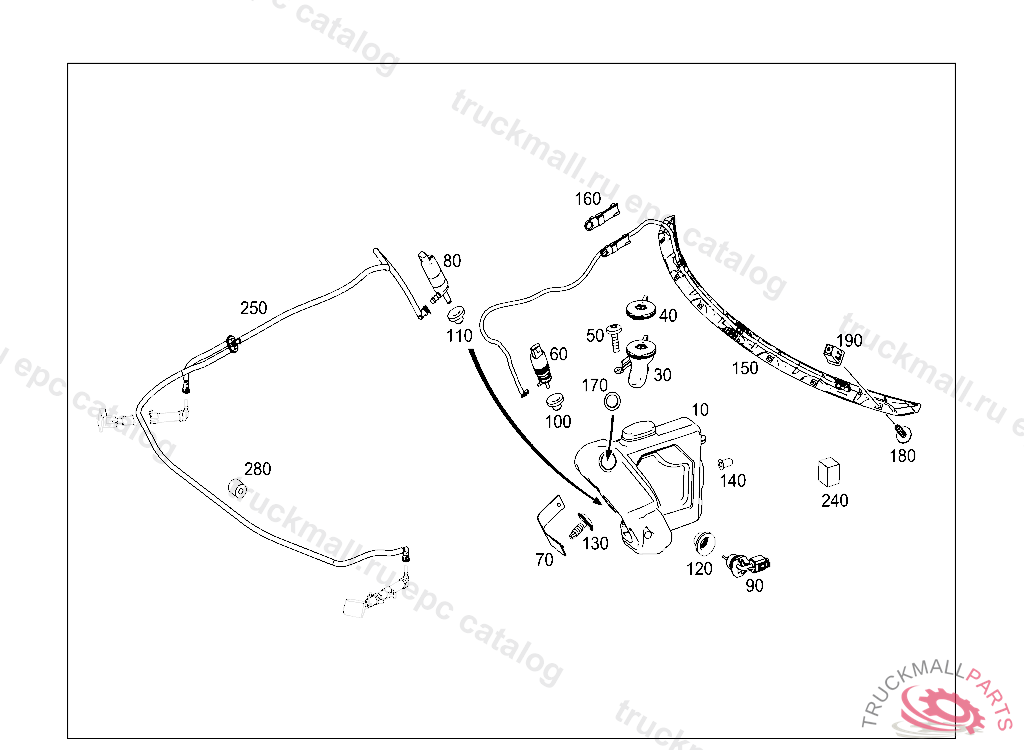

10
FLUID CONTAINER
30
FILLER NECK PANE WASHER RESERVOIR
40
COVER
50
SCREW BRACKET TO COVERING
60
PUMP PANE WASHER SYSTEM
70
RETAINING STRAP PUMP TO RESERVOIR FASTENING
80
PUMP HEADLAMP CLEANING SYSTEM
90
SWITCH FOR WASHING WATER STATUS
100
GROMMET CENTRIFUGAL PUMP CONNECTION
110
GROMMET FROM PUMP INTO RESERVOIR
120
SEAL FILLER PIPE
130
BOLT LOCK TO REAR PANEL DOOR M6X17,2
140
GROMMET REAR FASTENING
150
HOSE ASSEMBLY PANE WASHER SYSTEM,NOZZLES
160
LINE FASTENER HOSE ATTACHMENT
170
SEAL CONNECTION BETWEEN TANK AND FILLERNECK
180
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
190
BODY-BOUND NUT CONTROL UNIT FIXTURE
240
CONSOLE , A 00574920110212
250
HOSE ASSEMBLY HEADLAMP CLEANING SYSTEM
280
INTERMEDIATE LAYER CABLE RETAINER IN RIGHT DOOR
