C 200 CDI
203.004
92 REAR SEAT BENCH
010 REAR SEAT CUSHION

Mercedes N913023005002 - Гайка М5

C 200 CDI 203.004

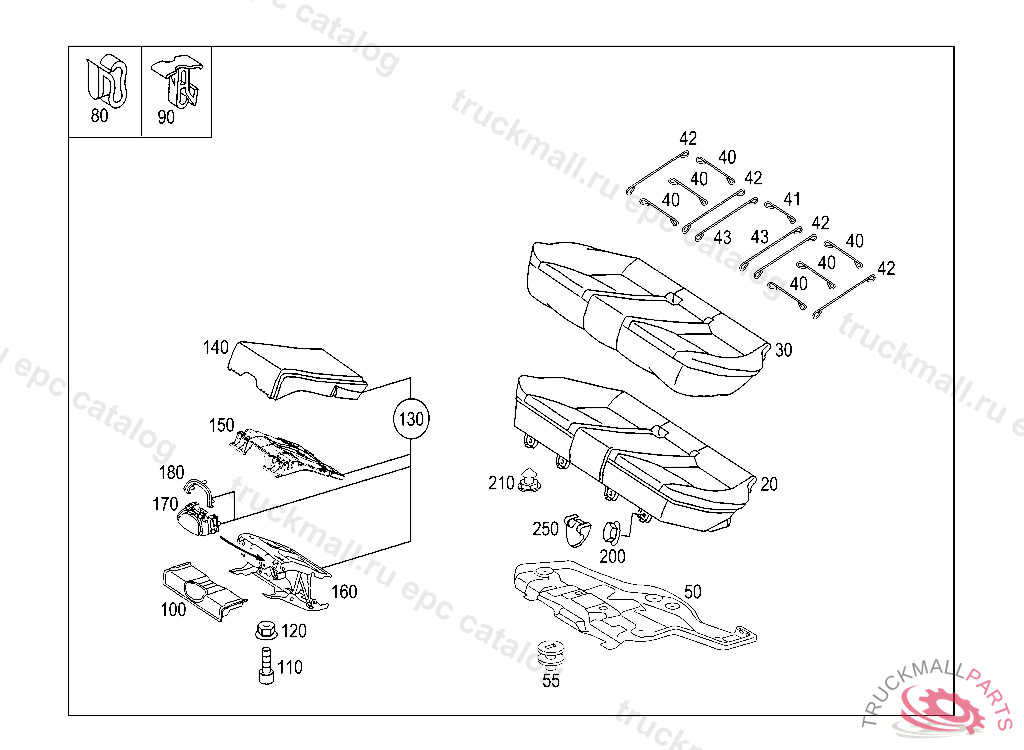

92 REAR SEAT BENCH - 010 REAR SEAT CUSHION

Поз.
Артикул
Описание
20
A2039200850
REST SEAT CUSHION
20
A2039200750
REST SEAT CUSHION
20
A2039201550
REST SEAT CUSHION, E 01872520030630804 A 55589720040630804 F 45737520031014804 R 13114520031203804
30
A2039200746
COVER
30
A2039201061
COVER
30
A2039202646
COVER
30
A2039201161
COVER
30
A2039202546
COVER
30
A2039201661
COVER
30
A2039201261
COVER
30
A2039204646
COVER
30
A2039209946
COVER , E 01314620020930 A 43949820020906 F 34460520020910 R 08212620020930 E 01938620050630805
30
A2039200561
COVER
30
A2039201561
COVER
30
A2039200661
COVER
30
A2039200761
COVER
30
A2039203046
COVER , E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
30
A2039200061
COVER
30
A2039207846
COVER
30
A2039206846
COVER
30
A2039206746
COVER
30
A2039209846
COVER , E 01314620020930 A 43949820020906 F 34460520020910 R 08212620020930 E 01938620050630805
30
A2039200861
COVER
30
A2039202746
COVER
30
A2039206361
COVER
30
A2039202846
COVER
30
A2039206261
COVER
30
A2039201461
COVER
30
A2039207746
COVER
30
A2039204546
COVER
30
A2039202346
COVER
30
A2039202946
COVER , E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
30
A2039207946
COVER
30
A2039202446
COVER
40
A2019240729
BRACKET SEAT COVER MOUNTING,LONGITUDINAL, USED WITH LEATHER TRIM
40
A2029240529
BRACKET SEAT COVER MOUNTING,TRANSVERSE
41
A1239242329
BRACKET SEAT COVER MOUNTING,TRANSVERSE
42
A2019243129
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
42
A1239241029
BRACKET
43
A2039140329
CLAMP COVER STITCHING 285 MM
50
A2039200111
CUSHION FRAME LEFT
50
A2039200211
CUSHION FRAME RIGHT
55
A2039880042
CATCH LEFT CUSHION FRAME
80
A1409883778
CLIP
80
A2019882278
CLIP SEAT COVER MOUNTING,TRANSVERSE
90
A2039880078
CLIP TRANSVERSAL TACKING
100
A2039200317
FOOT REST RIGHT
110
A0019845529
BOLT. SCREW
110
N000000001151
HEXALOBULAR BOLT. SCREW HAND BRAKE VALVE TO BRACKET M 8X12
120
N913023005002
NUT RELAY TO BRACKET M5
130
A2039205353
SEAT BOX LEFT
130
A2039205821
SEAT BOX RIGHT
130
A2039205721
SEAT BOX LEFT
130
A2039206121
SEAT BOX LEFT
130
A2039208321
SEAT BOX LEFT
130
A2039208421
SEAT BOX RIGHT
130
A2039205853
SEAT BOX RIGHT
130
A2039206321
SEAT BOX LEFT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
130
A2039208521
SEAT BOX LEFT
130
A2039205753
SEAT BOX LEFT
130
A2039206221
SEAT BOX RIGHT
130
A2039206521
SEAT BOX LEFT
130
A2039205453
SEAT BOX RIGHT
130
A2039206021
SEAT BOX RIGHT
130
A2039205921
SEAT BOX LEFT
130
A2039205153
SEAT BOX LEFT
130
A2039206421
SEAT BOX RIGHT, E 01938620050630805 A 66602420040430805 F 59396620040531805 R 15626520040630805 9C65 681A QFT203A2003 ANTHRACITE
130
A2039205253
SEAT BOX RIGHT
130
A2039206621
SEAT BOX RIGHT
130
A2039208621
SEAT BOX RIGHT
140
A2039240114
REST SEAT BOX,RIGHT
150
A2039220157
SEAT SHELL SEAT BOX,LEFT
160
A2039200187
BACKREST ADJUSTER LEFT
160
A2039200287
BACKREST ADJUSTER RIGHT
170
A2039201072
LOCKING MECHANISM BACKREST ADJUSTER RIGHT
180
A2039240037
COVER LOCK RIGHT
200
N913023008003
NUT HORN TO BRACKET M8
200
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
210
A2039220052
PIN
250
A2039220030
COVER MOUNTING TO FLOOR
