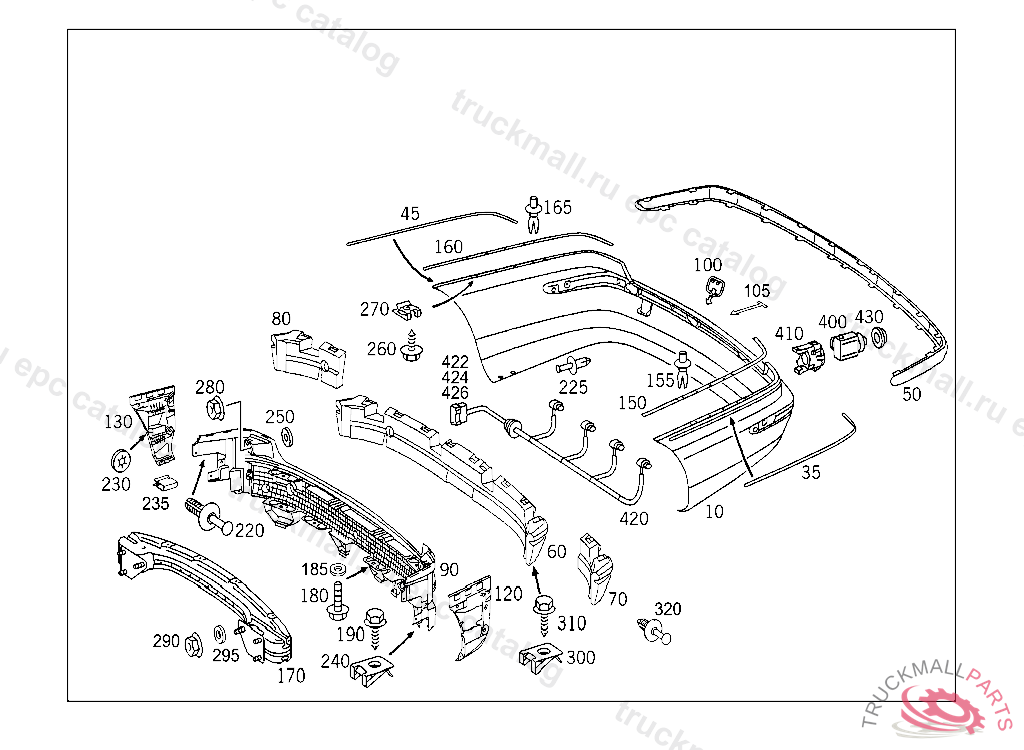

Поз.
Артикул
Описание
10
PANELING REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION
10
PANELING REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION
10
PANELING REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION
10
PANELING REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION
35
CHROMIUM COVER LEFT
45
CHROMIUM COVER RIGHT
50
RAIL CENTRAL
50
RAIL CENTRAL
60
ENERGY-ABSORBING UNIT CENTRAL
60
ENERGY-ABSORBING UNIT CENTRAL
70
ENERGY-ABSORBING UNIT LEFT
80
ENERGY-ABSORBING UNIT RIGHT
90
FRAME REAR BUMPER
100
FLAP TOWING EYE
105
REBOUND STRAP FLAP FOR TOW HOOK
120
BRACKET LEFT
130
BRACKET RIGHT
150
RAIL LEFT
155
RIVET RAIL ATTACHMENT,RIGHT
160
RAIL RIGHT
165
RIVET RAIL ATTACHMENT,RIGHT
170
REINFORCEMENT HITCHING MECHANISM, A 97499920070630809 E 06000020080901809
170
CROSS MEMBER REAR, A 97499920070630 E 06000020080901809
170
CROSS MEMBER REAR
180
SCREW LICENSE PLATE TO BRACKET
185
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
185
WASHER COMPRESSED AIR LINE TO BRACKET
190
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
220
RIVET SEALING LIP TO RADIATOR
225
BLIND RIVET AT COVERING
230
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
235
CLIP TRIM PANEL TO SIDE WALL
240
LOCK PROTECTIVE GRILLE
250
WASHER REAR LATERAL GUIDE TO REAR END FLOOR,F 021177
260
TAPPING SCREW
260
BOLT. SCREW MOUNTING PARTS 6.3X22MM
270
LOCKBEI GETRIEBE AUTOMATISCH 4-GANG
280
NUT FENDER ON SIDE PANEL M6
290
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
295
WASHER LOWER CONTROL ARM TO FRAME
300
FUSE LEFT
310
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
320
RIVET COVERING TO SIDE MEMBER
400
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION
400
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION 9999QFT168L9000 COLORLESS, Replaced By: A0045428718
410
HOUSING FOR SENSOR
420
WIRING HARNESS PARKTRONIC SYSTEM, A 97499920070630 E 06000020080901809
422
PLUG HOUSING DOOR SEPARATION POINT,B-PILLAR
424
COVER. CAPTO 001 545 52 40
426
FLAT PLUG TERMINAL. FLAT PLUG0,5-1,0MM2, TO 033 545 67 28, F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 619720 WITH CODE 808
430
SPACER RING
999
EYE AT INNER MEMBER
