Поз.
Артикул
Описание

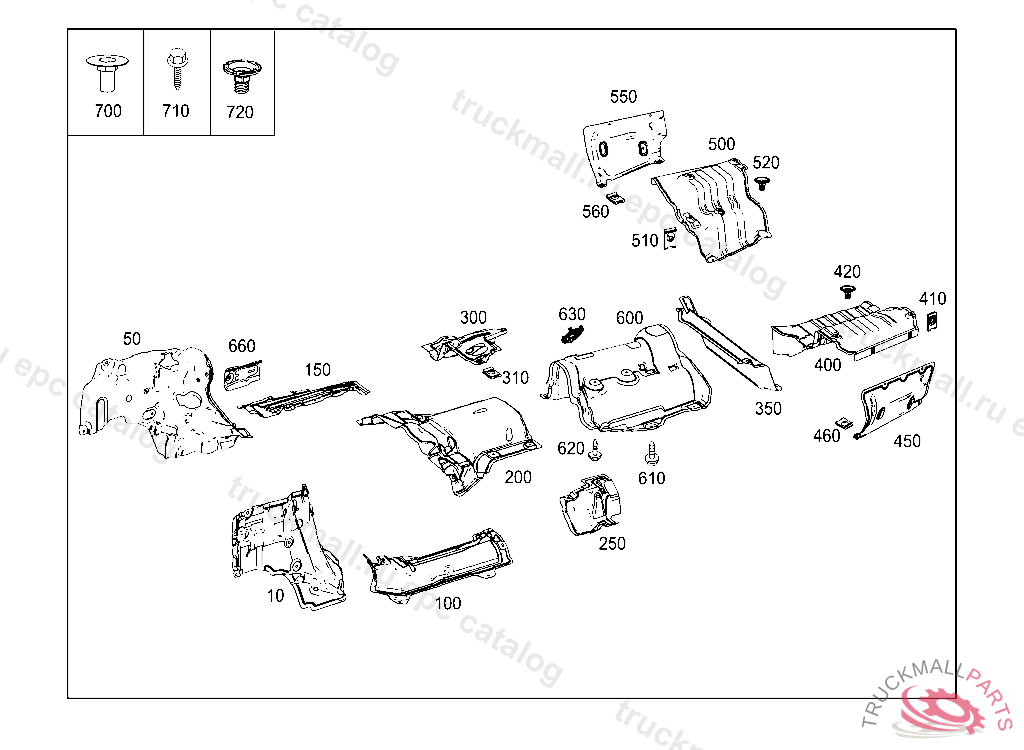

50
SHIELDING TO FIRE WALL,RECHTS
50
SHIELDING TO FIRE WALL,RECHTS
100
SHIELDING FLOOR,LEFT
150
SHIELDING MAIN FLOOR,ON THE RIGHT
200
SHIELDING OVER CATALYST
200
SHIELDING OVER CATALYST
200
SHIELDING OVER CATALYST
250
SHIELDING OVER LEFT CENTER MUFFLER
300
SHIELDING OVER RIGHT CENTER MUFFLER
310
LOCK FENDER TO BODY
350
SHIELDING REAR END CENTER
400
SHIELDING REAR MUFFLER, LEFT, INSIDE
410
LOCK FENDER TO BODY
420
BOLT UPPER RIGHT PANELING HOUSING 6X12
450
SHIELDING REAR MUFFLER, LEFT, OUTER
460
LOCK FENDER TO BODY
500
SHIELDING REAR MUFFLER RIGHT, INSIDE
520
BOLT UPPER RIGHT PANELING HOUSING 6X12
550
SHIELDING REAR MUFFLER, RIGHT, OUTER
560
LOCK FENDER TO BODY
600
SCREENING PLATE BELOW FUEL TANK
600
SCREENING PLATE BELOW FUEL TANK
610
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
620
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
630
CLOSING COVER AT TANK SHIELD
660
SHIELDING
700
HEXAGON NUT W COLLAR BRACKET MOUNTING
710
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
720
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
720
HEXAGON NUT W COLLAR BRACKET MOUNTING
