Поз.
Артикул
Описание

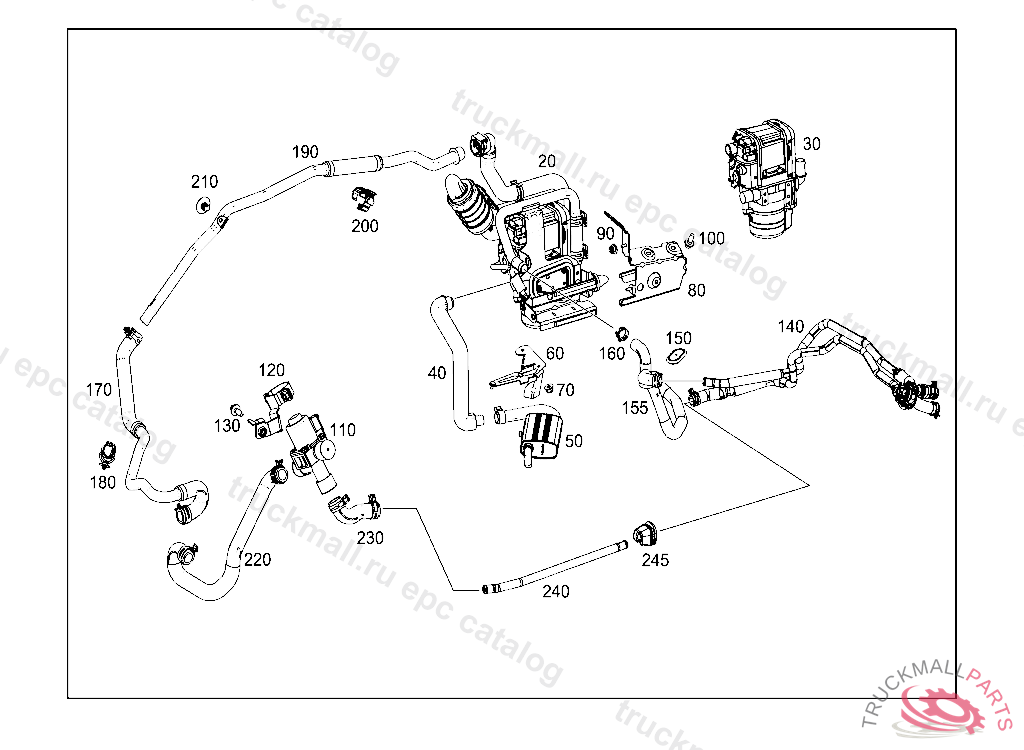

20
PARK HEATING UNIT
30
HEATER INDEPENDENT HEATING, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
40
EXHAUST GAS LINE INDEPENDENT HEATING
50
EXHAUST GAS MUFFLER INDEPENDENT HEATING
60
BRACKET MUFFLER
70
NUT BRACKET TO BODY SHELL M6
80
BRACKET TO GUIDE CONSOLE
90
NUT BRACKET TO BODY SHELL M6
100
SCREW BRACKET TO SIDE MEMBER M8X20
110
VALVE
120
BRACKET CHANGE-OVER VALVE
130
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
140
HEATING WATER LINE
140
HEATING WATER LINE
140
HEATING WATER LINE
150
PLUG
155
HEATING WATER HOSE TO STATIONARY HEATER
160
CLAMP25 MM
170
HEATING WATER LINE UNDER CONSOLE
170
HEATING WATER LINE UNDER CONSOLE
180
LINE HOLDER HOSE TO BRACKET
190
HEATING WATER LINE
200
LINE FASTENER RETURN LINE FASTENING
210
STOP PLUG. PLUG
220
HEATING WATER HOSE ADDITIONAL WATER PUMP TO SWITCHOVER VALVE
230
HEATING WATER HOSE FROM SWITCHOVER VALVE TO HOSE GROUP
240
HOSE ASSEMBLY RETURN LINE FROM BRACKET TO CIRCULATION PUMP
245
BRACKET RETURN LINE
