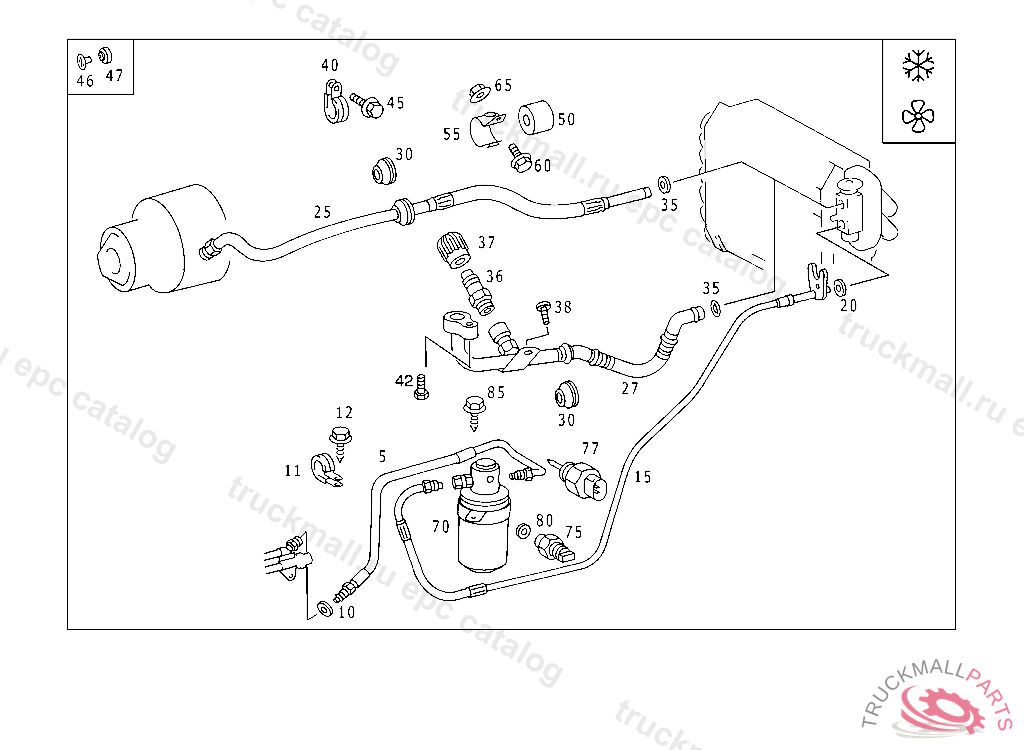

Поз.
Артикул
Описание
5
PIPE LINE FROM CONDENSER TO LIQUID TANK
5
PIPE LINE , Replaced By: A2028304915
10
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
15
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
15
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
20
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
27
PIPE LINE (SUCTION LINE),FROM EXPANSION VALVE TO SEPARATION POINT
27
PIPE LINE (SUCTION LINE),FROM EXPANSION VALVE TO SEPARATION POINT
30
GROMMET
35
O-RING HOSE TO EXPANSION VALVE 17X2
36
VALVE
37
CAP , NOT USED
38
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
42
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
46
PUSH BUTTON. FASTENER BUTTON
47
GROMMET AT SOLENOID VALVE,A 258245
65
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
70
TANK
70
TANK
75
SENSOR AT LIQUID TANK
77
TEMPERATURE SENSOR AT LIQUID TANK, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
80
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
85
SCREW
85
SCREW , Replaced By: A2039900036
