Поз.
Артикул
Описание

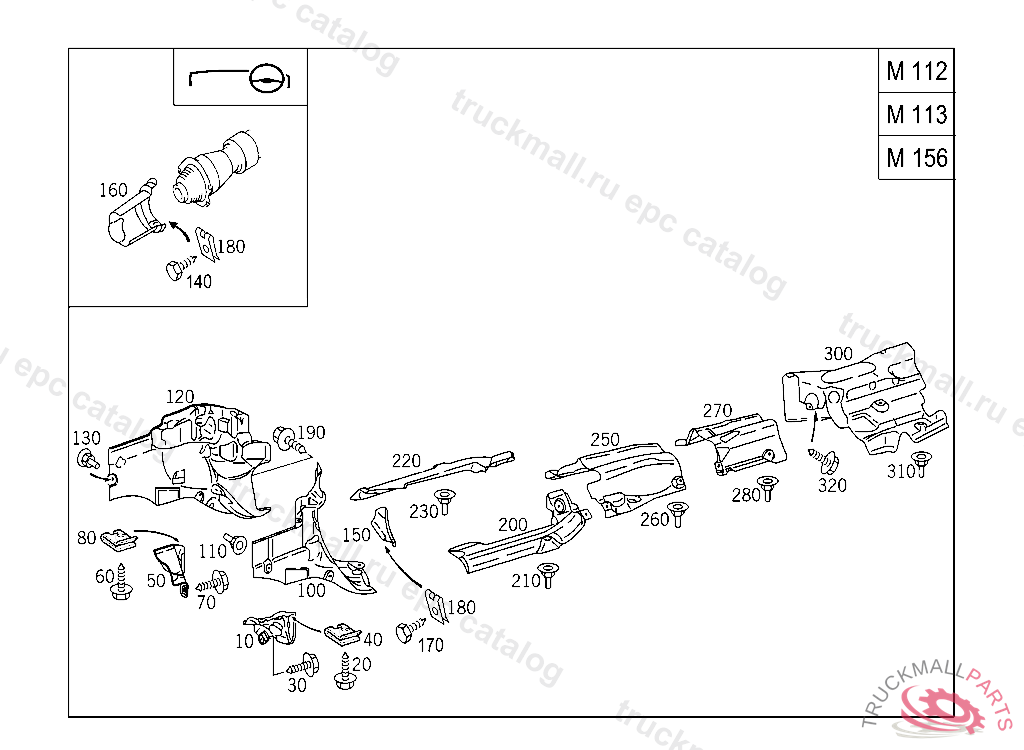

10
SCREENING FRAME-TYPE INTEGRAL SUPPORT,LEFT
20
TAPPING SCREW RADIATOR GRILLE SHELL TO ENGINE HOOD 4.8X13
30
SCREW
40
LOCK RIGHT PANELLING TO SIDE MEMBER
50
SCREENING FRAME-TYPE INTEGRAL SUPPORT,RIGHT
60
TAPPING SCREW RADIATOR GRILLE SHELL TO ENGINE HOOD 4.8X13
70
SCREW
80
LOCK RIGHT PANELLING TO SIDE MEMBER
100
SCREENING FIRE WALL, LEFT, E 01938420040430 A 67972820040604 F 58363320040606 R 16772220040917
100
SCREENING FIRE WALL, LEFT
110
HEXAGON NUT W COLLAR BRACKET MOUNTING
120
SCREENING FIRE WALL,RIGHT
120
SCREENING FIRE WALL,RIGHT, E 01938420040430 A 67972220040604 F 58363320040606
120
SCREENING FIRE WALL,RIGHT, F 58363320040606
120
SHIELDING FIRE WALL,RIGHT, E 01938520040430 A 67972320040604 F 58363420040606 R 16772320040917, Replaced By: A2036800622
120
SHIELDING FIRE WALL,RIGHT, F 58363420040606, Replaced By: A2036826471
120
SCREENING FIRE WALL,RIGHT
130
HEXAGON NUT W COLLAR BRACKET MOUNTING
140
SHEET METAL SCREW ALARM UNIT TO STRUT
140
TAPPING SCREW STEERING-JOINT BOOT COVER 4.8X9.5
150
SCREENING BOOT TO STEERING
160
SCREENING BOOT TO STEERING
170
SHEET METAL SCREW ALARM UNIT TO STRUT
170
TAPPING SCREW STEERING-JOINT BOOT COVER 4.8X9.5
180
LOCK RIGHT PANELLING TO SIDE MEMBER
190
SCREW
200
SCREENING FLOOR,LEFT
210
HEXAGON NUT W COLLAR BRACKET MOUNTING
220
SCREENING MAIN FLOOR,ON THE RIGHT
230
HEXAGON NUT W COLLAR BRACKET MOUNTING
250
SCREENING AT TUNNEL ABOVE CATALYST
260
HEXAGON NUT W COLLAR BRACKET MOUNTING
270
SCREENING ABOVE CENTRAL MUFFLER
280
HEXAGON NUT W COLLAR BRACKET MOUNTING
300
SCREENING ABOVE POSTERIOR MUFFLER
310
HEXAGON NUT W COLLAR BRACKET MOUNTING
320
SCREW PANELLING TO SIDE MEMBER,BOTTOM
