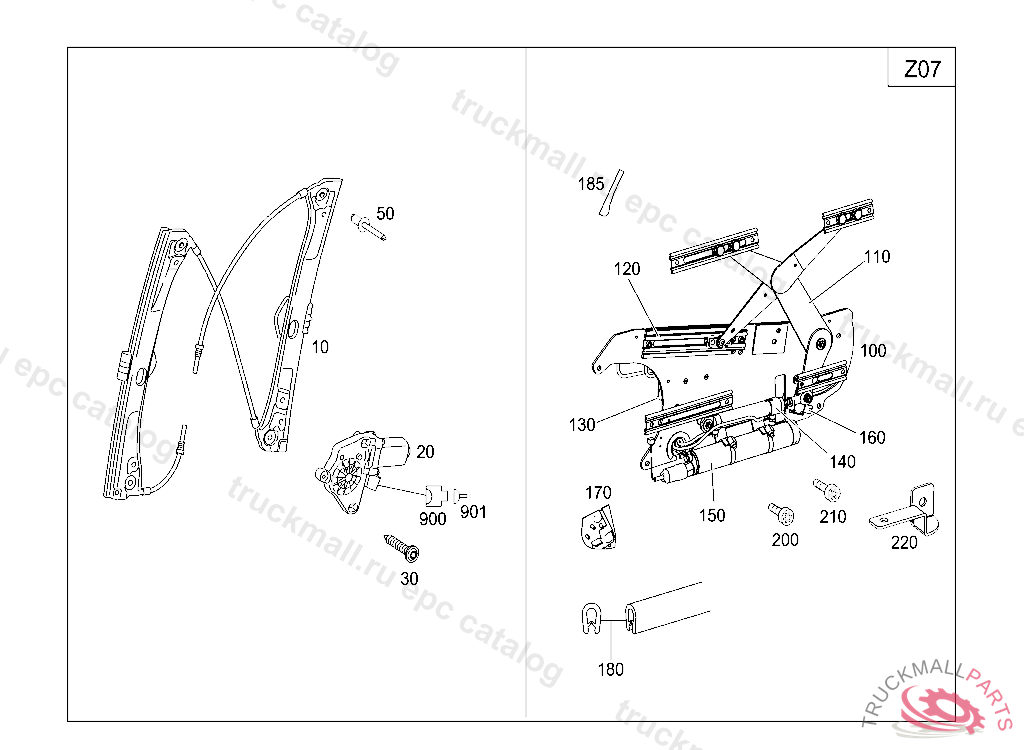

Поз.
Артикул
Описание
10
WINDOW REGULATOR LEFT, ELECTRIC, WITHOUT ENGINE
10
WINDOW REGULATOR RIGHT,ELECTRIC,LESS MOTOR
20
ELECTRIC MOTOR WINDOW REGULATOR,LEFT
20
ELECTRIC MOTOR WINDOW REGULATOR,RIGHT
30
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
50
BLIND RIVET INSIDE PART RIGHT
100
WINDOW REGULATOR LEFT
100
WINDOW REGULATOR LEFT
100
WINDOW REGULATOR RIGHT
100
WINDOW LIFT RIGHT
100
WINDOW LIFT
100
WINDOW REGULATOR RIGHT
110
LEVER RIGHT
110
LEVER LEFT
110
LEVER RIGHT
110
LEVER LEFT
120
SEGMENT PLATE RIGHT, A 16124920070630808
120
SEGMENT PLATE LEFT, A 16124920070831808
120
SEGMENT PLATE LEFT, A 24780420080626809
120
SEGMENT PLATE RIGHT, A 24780420080626809
130
VALVE LEFT, A 16124920070831808
130
VALVE RIGHT, A 24780420080626809
130
VALVE RIGHT, A 16124920070630808
130
VALVE LEFT, A 24780420080626809
140
HYDRAULIC CYLINDER RIGHT
140
CYLINDER LEFT
150
ACCUMULATOR RIGHT
160
SWITCH RIGHT
160
SWITCH RIGHT
160
SWITCH LEFT
170
SEAL RIGHT DOOR, BOTTOM, A 16124820070630
170
SEAL LEFT DOOR,BOTTOM, A 16124820070630
180
EDGE GUARD BONDED TO WINDOW FRAME, LEFT
185
INSULATION TO WINDOW FRAME AT B-PILLAR 50 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
200
HEXALOBULAR BOLT HEIGHT ADJUSTMENT,LEFT M8X16
210
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
220
BRACKET FRONT DOOR WINDOW REGULATOR
220
BRACKET CO-DRIVER'S DOOR WINDOW REGULATOR
900
PIN BUSHING HOUSING LEFT POWER WINDOW MOTOR 6-PIN SLK2.8,M10/1
901
CONTACT SPRINGTO A 038 545 76 28
901
CONTACT SPRING0.5MM2-1.0MM2, A 843748 X 019421
