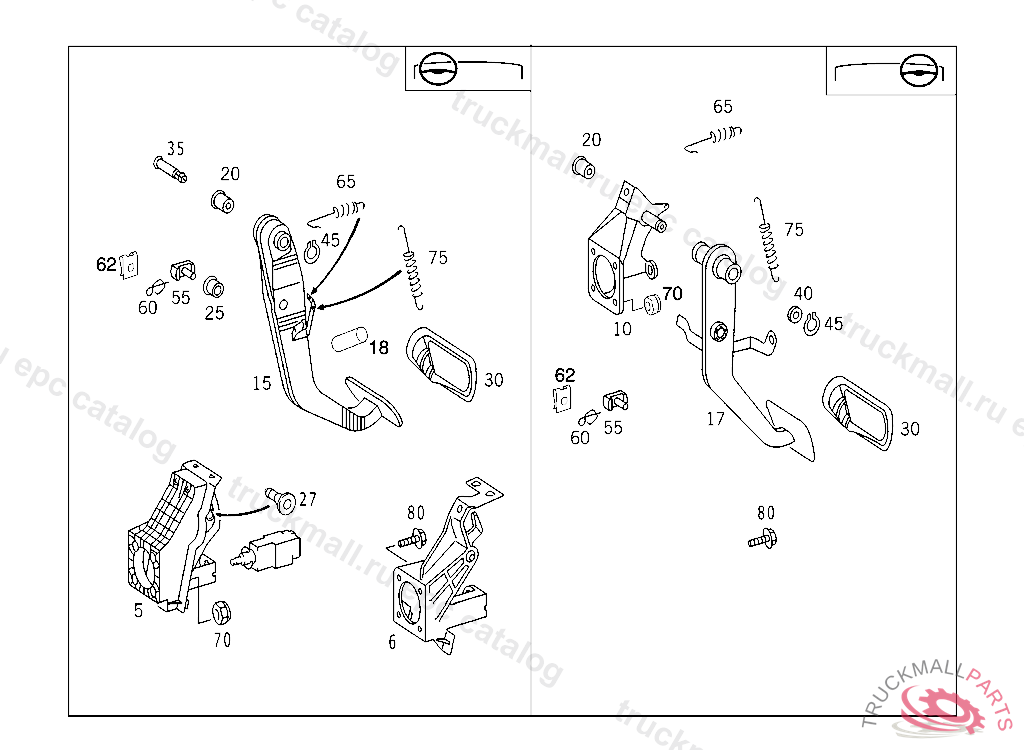

Поз.
Артикул
Описание
5
BEARING BRACKET
5
BEARING BRACKET PEDAL ASSEMBLY, A 05077519990128 A 13774120000524
5
BEARING BRACKET PEDAL ASSEMBLY, A 05077419990128 NO LONGER AVAILABLE
10
BEARING BRACKET
15
PEDAL
15
PEDAL BRAKE PEDAL, A 13774120001031
15
BRAKE PEDAL , Replaced By: A2202902918
17
BRAKE PEDAL , Replaced By: A2202903118
17
PEDAL
18
GROMMET5.0 MM
20
BUSHING BRAKE PEDAL
25
BUSHING PEDAL ASSEMBLY
27
PLUG
30
PAD BRAKE PEDAL
35
PIN CLUTCH PEDAL TO BEARING BRACKET
40
WASHER PEDALS TO PIVOT PINS
45
LOCK STOP TO BEARING BRACKET
55
PIN BRAKE PEDAL TO BRAKE BOOSTER, A 03178220020802, Replaced By: A2032920174, +001N912002008003
55
PIN BRAKE PEDAL TO BRAKE BOOSTER
60
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
62
LOCK PULL TO FASTENER
65
SPRING BRAKE PEDAL
70
NUT HORN TO BRACKET M8
70
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
75
SPRING BRAKE PEDAL RELEASE SPRING
75
SPRING BRAKE PEDAL RELEASE SPRING
