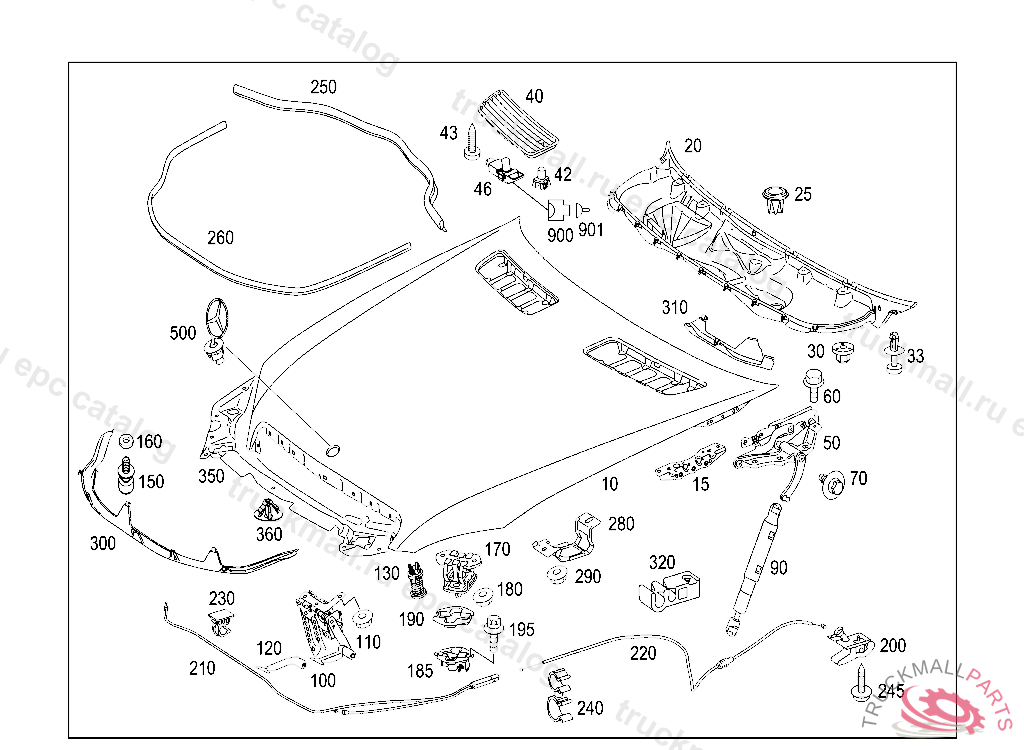

Поз.
Артикул
Описание
10
ENGINE HOOD
15
ANGLE ENGINE HOOD,RIGHT
15
ANGLE ENGINE HOOD, LEFT
20
COVER BOTTOM
20
COVER BOTTOM
25
GROMMET COVERING
30
NUT CONTROL UNIT FIXTURE
30
HEX NUT GUIDE AT REAR FENDER
33
RIVET CENTRAL COVERING ES2NO..9051
40
COVER ENGINE HOOD, LEFT
40
COVER ENGINE HOOD,RIGHT
42
COVER SUN SENSOR
43
TAPPING SCREW BRACKET TO SUPPORT
46
SENSOR SUN SENSOR
46
LIGHT SENSOR SUN SENSOR, Replaced By: A2118701310
50
HINGE LEFT
50
HINGE RIGHT
60
BOLT HINGE TO LONGITUDINAL MEMBER M6X25
70
HEXALOBULAR BOLT MOUNTING PARTS M8X16
90
GAS-OPERATED SPRING TO HINGES LEFT AND RIGHT
100
SAFETY HOOK ENGINE HOOD CATCH, A 26557620081001809
100
SAFETY HOOK ENGINE HOOD CATCH, A 29016920090630800 L 00539920090531
110
NUT , Replaced By: N913023006001
120
SAFETY HOOK ENGINE HOOD CATCH, A 26557620081001809
120
SAFETY HOOK ENGINE HOOD CATCH, A 29016920090630800
130
SPRING ELEMENT ENGINE HOOD,FRONT
150
STOP BUFFER ENGINE HOOD
160
INTERMEDIATE LAYER REAR LID STOP 22 MM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 23247820061012, Replaced By: A1698891295
170
ENGINE HOOD CATCH UPPER PART
180
NUT , Replaced By: N913023006001
185
ENGINE HOOD CATCH LOWER PART
190
COVER TO HOOD LOCK
195
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
200
HANDLE ENGINE HOOD RELEASE CABLE
210
ENGINE HOOD RELEASE CABLE FRONT
220
ENGINE HOOD RELEASE CABLE REAR
230
CLAMPING PIECE ENGINE HOOD RELEASE CABLE TO STIFFENING
240
CLAMP. EXTENDABLE SPACER BREATHER LINE
245
SHEET METAL SCREW BRACKET TO SUPPORT
250
SEAL REAR
260
SEAL FRONT
280
BRACKET AT ENGINE HOOD FRONT LEFT AND RIGHT
290
NUT , Replaced By: N913023006001
300
ENGINE COVER FRONT
310
COVER REAR LEFT
310
COVER REAR RIGHT
320
LINE HOLDER CABLE
350
INSULATION AT BOTTOM OF ENGINE HOOD
360
PLUG-IN MOUNTING INSULATION TO ENGINE HOOD
500
MERCEDES STAR
900
CLUTCH. PIN BUSHING HOUSING SIREN
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
