Поз.
Артикул
Описание

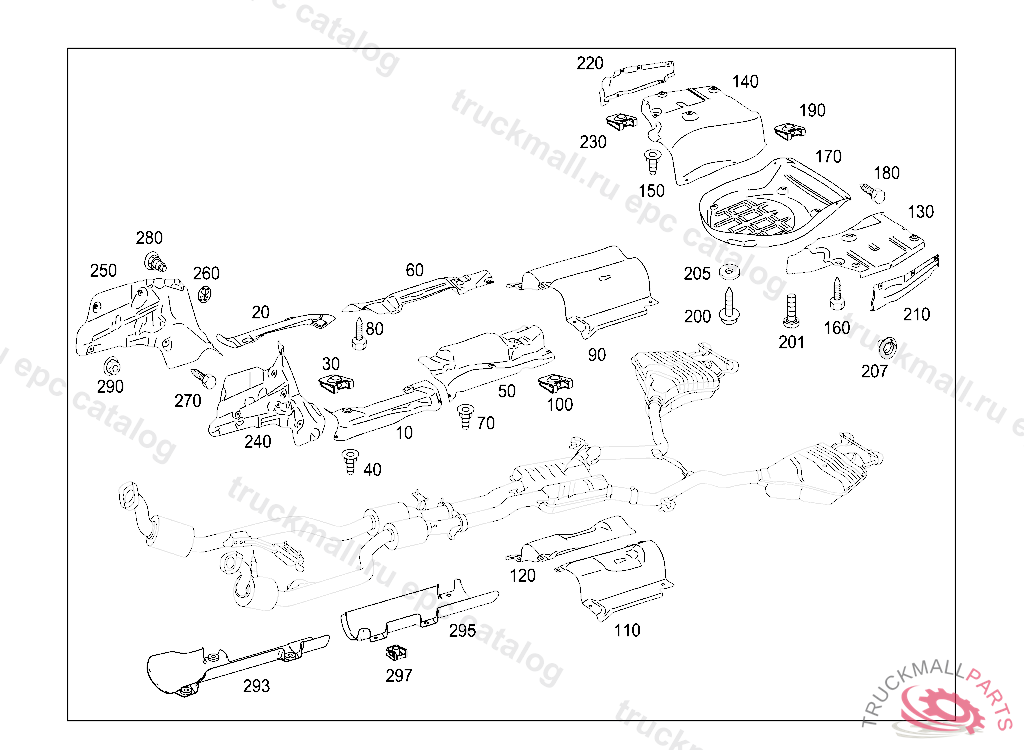

10
SCREENING FLOOR,LEFT
10
SCREENING FLOOR,LEFT
20
SCREENING MAIN FLOOR,ON THE RIGHT
20
SHIELDING MAIN FLOOR,ON THE RIGHT
20
SCREENING MAIN FLOOR,ON THE RIGHT, Replaced By: A2216828571
30
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
40
HEXAGON NUT W COLLAR BRACKET MOUNTING
50
SHIELDING ABOVE LEFT CATALYST, A 02545520100331
50
SCREENING ABOVE LEFT CATALYST, A 02545420100331
60
SCREENING ABOVE RIGHT CATALYST, A 02545420100331
60
SHIELDING ABOVE RIGHT CATALYST, A 02545520100331
70
HEXAGON NUT W COLLAR BRACKET MOUNTING
80
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
80
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
90
SCREENING CATALYST,REAR
100
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
110
SCREENING ABOVE LEFT CATALYST
120
SCREENING ABOVE RIGHT CATALYST
130
SHIELDING REAR MUFFLER LEFT
130
SCREENING REAR MUFFLER LEFT, Replaced By: A2216827871
140
SHIELDING REAR MUFFLER RIGHT
140
SCREENING REAR MUFFLER RIGHT, Replaced By: A2216827971
150
HEXAGON NUT W COLLAR BRACKET MOUNTING
160
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
160
TAPPING SCREW LIGHTING UNIT TO LATERAL STIFFENING 4.8X25
170
SCREENING AT SPARE WHEEL WELL
170
SCREENING AT SPARE WHEEL WELL
180
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
190
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
200
BOLT. SCREW LINE MOUNTING
200
NUT , Replaced By: N913023006001
201
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
205
WASHER COVERING TO CYCLONE AIR TRAP
207
HEXAGON NUT W COLLAR BRACKET MOUNTING
210
SCREENING REAR MUFFLER LEFT
220
SCREENING REAR MUFFLER RIGHT
230
LOCK INSTRUMENT PANEL TO PANELLING
240
SCREENING AT LEFT SIDE MEMBER
240
SCREENING AT LEFT SIDE MEMBER
240
SCREENING AT LEFT SIDE MEMBER
250
SCREENING AT RIGHT SIDE MEMBER
250
SCREENING AT RIGHT SIDE MEMBER
260
SPRING NUT , A 32101520070928808
270
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
280
HEXAGON NUT W COLLAR BRACKET MOUNTING
290
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
