Поз.
Артикул
Описание

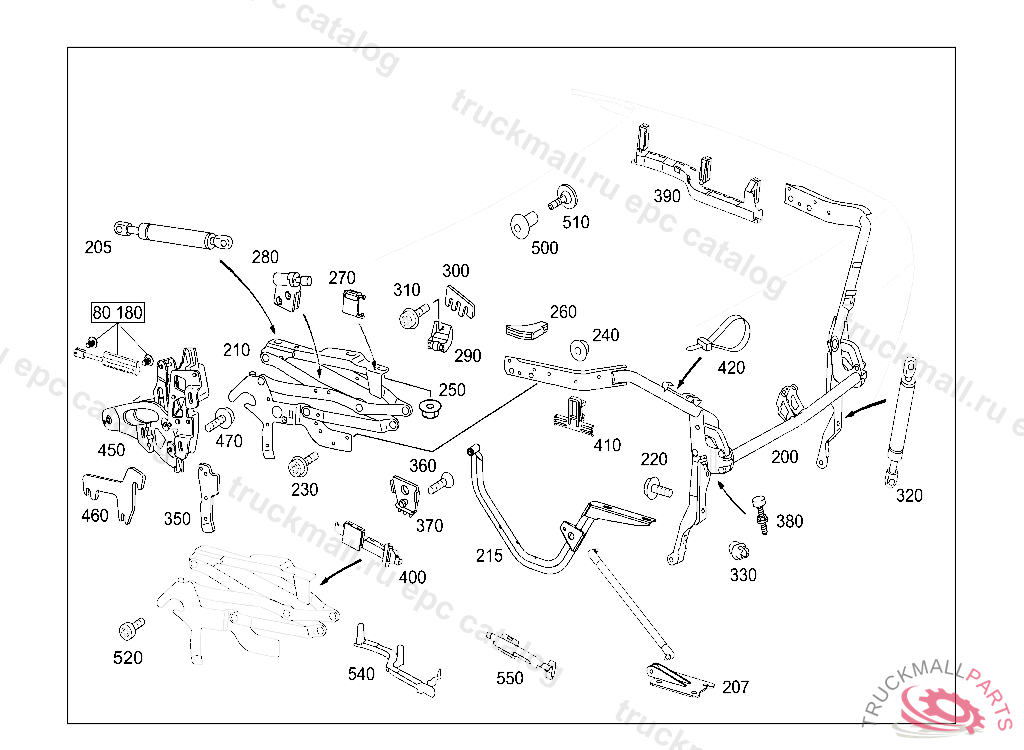

200
FRAME , UP TO IDENT. NO. F 021136, THE TORSION BAR ABSOLUTELY MUST BEREMOVED
205
SPRING DAMPER FOR TRUNK LID FUNCTION
205
GAS-OPERATED SPRING FOR TRUNK LID FUNCTION, F 11358820050906
205
GAS-OPERATED SPRING FOR TRUNK LID FUNCTION
207
CONSOLE PNEUMATIC SPRING
210
HINGE RIGHT, F 10996620050623806
210
HINGE LEFT, F 10996620050623806
215
HINGE LEFT
215
HINGE RIGHT
220
HEXALOBULAR BOLTM8X16
230
SCREW BRACKET TO COVERING
240
CAPTIVE NUT. NUT
250
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
260
STOP BUFFER LEFT, F 10996620050623806
260
STOP BUFFER RIGHT, F 10996620050623806
270
SLIDE TO HINGES LEFT AND RIGHT
280
SPRING DAMPER LIMIT DAMPER TO SEVEN JOINT HINGE RIGHT, F 10996620050623806
280
SPRING DAMPER LIMIT DAMPER TO SEVEN JOINT HINGE LEFT, F 10996620050623806
290
BEARING LEFT
290
BEARING RIGHT
300
PAD MOUNTING
310
SCREW BRACKET TO COVERING
320
SPRING TUBULAR-FRAME DRIVE
330
BRACKET HYDRAULIC CYLINDER
350
SPRING LEFT
350
SPRING RIGHT
360
SCREW ADJUSTER TO WINDOW PANE
370
GUIDE WEDGE REAR RIGHT, F 10996620050623806
370
GUIDE WEDGE REAR LEFT, F 10996620050623806
380
BUFFER REAR LID LATCH-TYPE LOCK
390
CABLE DUCT PIPING REAR LID
400
CABLE DUCT PIPING REAR LID
410
BRACKET PIPING REAR LID
420
CABLE TIE310X5MM
450
CATCH TUBE FRAME TO RIGHT SIDE PANEL
450
CATCH TUBE FRAME TO LEFT SIDE PANEL, F 13803420070629
460
PAD TO TUBE FRAME LOCK
470
HEXALOBULAR BOLT GROUND LINE TO GRID HEATER M6X25
500
SLEEVE FOAM PART FASTENING TO 7-JOINT HINGE
510
PIN FOAM PART FASTENING TO 7-JOINT HINGE
520
HEXALOBULAR BOLT MOUNTING, COVER M6 X 8
540
CABLE DUCT TO TRUNK LID HINGE, FRONT
550
CABLE DUCT TO TRUNK LID HINGE, BACK
